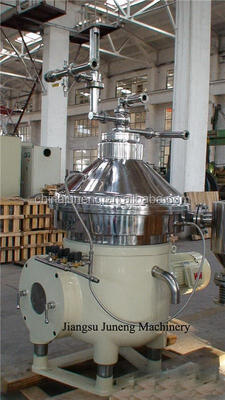

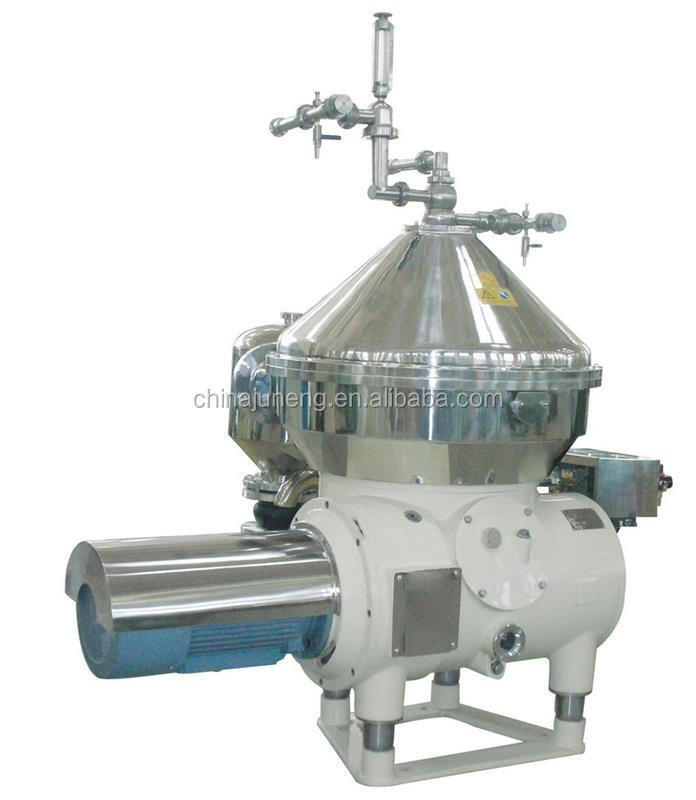

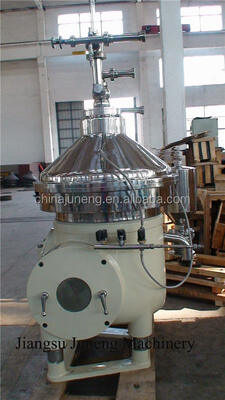

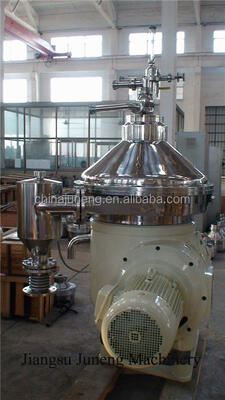

High Efficiency Fat Centrifuge Separator for Dairy Factory

High Efficiency Fat Centrifuge Separator for Dairy Factory
High Efficiency Fat Centrifuge Separator for Dairy Factory High Efficiency Fat Centrifuge Separator for Dairy Factory High Efficiency Fat Centrifuge Separator for Dairy Factory High Efficiency Fat Centrifuge Separator for Dairy Factory High Efficiency Fat Centrifuge Separator for Dairy Factory High Efficiency Fat Centrifuge Separator for Dairy Factory

Large Image :  High Efficiency Fat Centrifuge Separator for Dairy Factory

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $27,880-30,000
Contact Now

High Efficiency Fat Centrifuge Separator for Dairy Factory

Description
Voltage: 380V/50HZ Or Customized Power: 15000W
Dimensions: 1800*1200*1800 Mm Weight: 2000 Kg
Material: 316 Stainless Steel Capacity: 5000 L/H
Discharge Type: Automatic Continuously Cleaning: Automatic Self-cleaning
Core Components: PLC, Motor, Pump Operation: Controlled By PLC Cabinet
Inlet Pressure: 0.05 Mpa Outlet Pressure: 0.1-0.35 Mpa
Speed: 5000-12000 RPM Separation Factor: High
Function: Milk-fat-solid Separation
Highlight:

high efficiency fat centrifuge separator

,

dairy factory oil separator

,

disc oil separator with warranty

High Efficiency Fat Centrifuge Separator for Dairy Factory
Advanced disc separator designed for dairy processing applications, providing efficient separation of cream, defatted milk, and impurities from pure milk while enabling milk standardization based on fat content.
Separator Applications
Junen Separators effectively separate extremely small solid particles (as small as 1mm) dispersed in suspensions from the liquid phase, making them ideal for various dairy processing operations.
DHN Model - Dairy Clarification
Model Capacity (L/H) Inlet Pressure Outlet Pressure Weight Dimensions (mm)
DHN360 2000-5000 0.05 Mpa 0.1-0.35 Mpa 1200 kg 1530×1150×1500
DHN470 5000-10000 0.05 Mpa 0.1-0.4 Mpa 1600 kg 1800×1200×1750
DHN550 10000-20000 0.05 Mpa 0.1-0.4 Mpa 2300 kg 1950×1550×1960
DHN616 25000-35000 0.1 Mpa 0.3 Mpa 3000 kg 2185×1728×2082
DHNZ Model - Dairy Skimming
Model Capacity (L/H) Inlet Pressure Outlet Pressure Weight Dimensions
DHNZ204 500-1000 0.05 Mpa 0.1-0.2 Mpa 520 kg 810×850×1350
DHNZ360 1000-3000 0.05 Mpa 0.1-0.2 Mpa 1200 kg 1530×1150×1500
DHNZ470 3000-7000 0.05 Mpa 0.1-0.2 Mpa 1600 kg 1800×1200×2030
DHNZ550 5000-10000 0.05 Mpa 0.1-0.2 Mpa 2300 kg 1950×1550×1960
Working Principle - Dairy Skimming
The disc separator performs two-phase and three-phase separation. Two-phase separation separates suspended solids from liquid or separates two immiscible liquids with different specific gravity. Three-phase separation simultaneously separates two immiscible liquid phases and solid particles.
High Efficiency Fat Centrifuge Separator for Dairy Factory 0
Working Principle - Dairy Clarification
Clarification involves two-phase separation where materials feed into the machine's bowl interior. Under strong centrifugal force, impurities are removed from raw materials to produce clean milk.
High Efficiency Fat Centrifuge Separator for Dairy Factory 1
Key Advantages
  • Continuous feeding operation
  • High separation factor for superior performance
  • Automatic residue discharging system
  • CIP (Clean-in-Place) capability
  • Hydraulic coupling driving for extended service life
  • PLC system automatic control
  • Excellent milk skimming performance
  • High operational efficiency
  • Lower energy consumption
  • Smooth feeding and discharging processes
Application Areas
  • Hot milk separation
  • Cold milk separation
  • Whey protein separation
  • Buttermilk separation
  • Dairy whey clarification
  • Disinfection of dairy products
  • Casein processing
  • Syrup clarification
  • Vegetable juice clarification
  • Tea drinks, coffee, beer and other liquid clarification
High Efficiency Fat Centrifuge Separator for Dairy Factory 2 High Efficiency Fat Centrifuge Separator for Dairy Factory 3
Rotating Bowl Drum Components
All parts and components contacting materials are manufactured from stainless steel, minimizing corrosion from processed materials and meeting strict hygienic requirements for food processing.
The separator bowl undergoes precise dynamic balancing for stable operation with minimal vibration and noise.
High Efficiency Fat Centrifuge Separator for Dairy Factory 4 High Efficiency Fat Centrifuge Separator for Dairy Factory 5
Material
Super stainless steel
Function
High-speed operation
Assembly
Precision assembly
Speed
5000-12000 RPM
High Efficiency Fat Centrifuge Separator for Dairy Factory 6 High Efficiency Fat Centrifuge Separator for Dairy Factory 7
PLC Control System
The separator features an automatic control cabinet with industrial computer and auto overload protector. This highly automated system offers excellent adaptability to process changes, easy adjustment capabilities, and significantly reduces operator workload.
High Efficiency Fat Centrifuge Separator for Dairy Factory 8
Quality Assurance
Our company maintains a first-class laboratory for comprehensive analysis including chemical composition, metallographic analysis, spectrum analysis, performance testing, radiographic inspection, magnetic inspection, and ultrasonic inspection. We employ advanced instrumentation and rigorous quality control to ensure every product component is stable and reliable.
Packaging & Delivery
High Efficiency Fat Centrifuge Separator for Dairy Factory 9
Size
1950(L)×1800(W)×1950(H) mm
(varies by model)
Weight
1000kg-3000kg
Packaging Details: Standard packaging uses wooden boxes (Size: L×W×H). For European exports, wooden boxes are fumigated. For tight container spaces, we use PE film packaging or accommodate special customer requests.
Company Overview
Juneng focuses on international technical collaboration and commercial exchange, learning from advanced management systems and expertise from the United States, Canada, Germany, Russia, and Southeast Asian countries. Our vision is to become an industry leader in China and worldwide.
High Efficiency Fat Centrifuge Separator for Dairy Factory 10 High Efficiency Fat Centrifuge Separator for Dairy Factory 11
Customer Service
High Efficiency Fat Centrifuge Separator for Dairy Factory 12 High Efficiency Fat Centrifuge Separator for Dairy Factory 13
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing arrangements
After-Sales Service
  • Machine installation training
  • Machine operation training
  • Overseas engineer service availability
Certifications & Honors
High Efficiency Fat Centrifuge Separator for Dairy Factory 14
Frequently Asked Questions
High Efficiency Fat Centrifuge Separator for Dairy Factory 15
How can we visit your factory?
International visitors: Fly to Shanghai airport, we provide airport pickup. Domestic visitors: Travel to Wuxi station by air or train, we provide railway station pickup.
How do you ensure product quality?
As a state-owned enterprise with over 30 years of experience, we implement strict operational policies, use advanced processing machines for precision components, employ licensed workers, utilize international brand transmission and electrical parts, and conduct comprehensive testing throughout production.
What payment methods do you accept?
We accept most payment methods, primarily T/T and L/C at sight.
What is the warranty period?
Official warranty is 12 months after commissioning.
How can I trust your company?
We have been on Alibaba.com for 10+ years as golden suppliers, hold authoritative certificates including CE, ISO9001, and Alibaba onsite check certification, with a Trade Assurance Limit of US$42,000+.
What are shipment terms and delivery time?
Delivery time depends on order quantity: typically 20 days, 30 days for customized machines.
