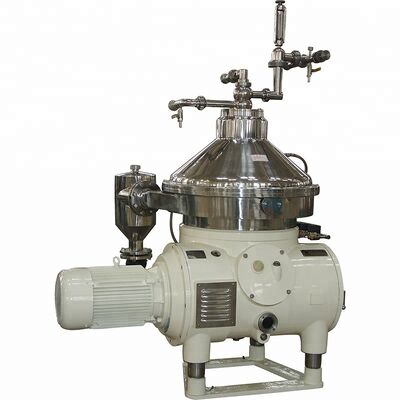

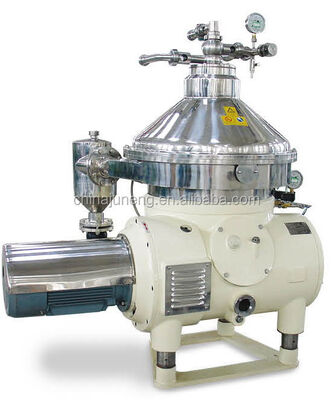

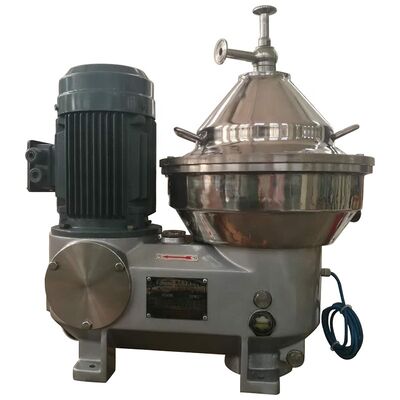

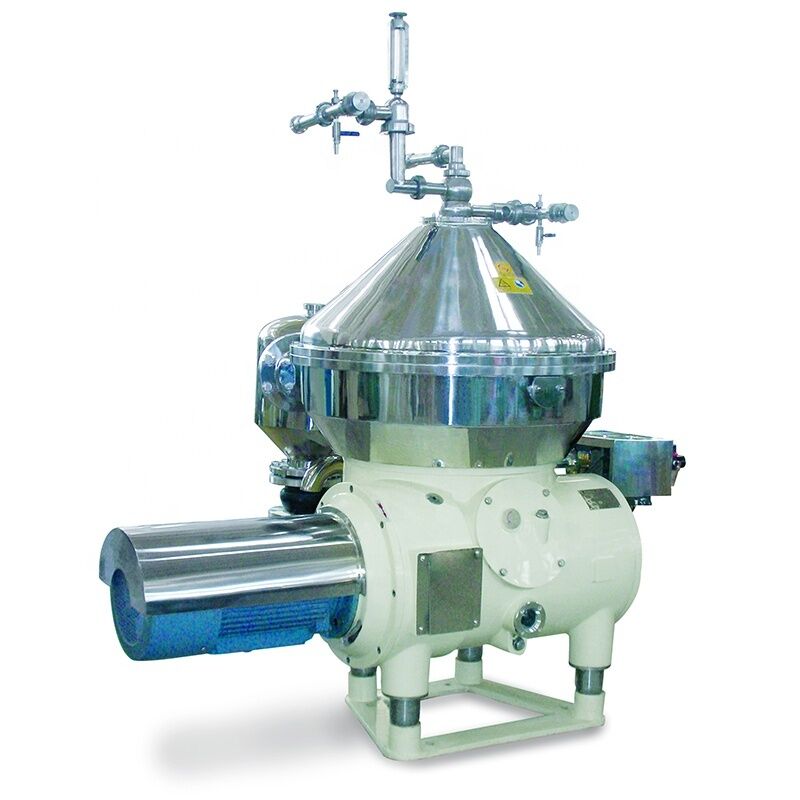

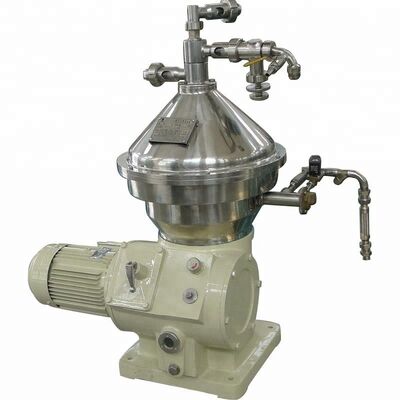

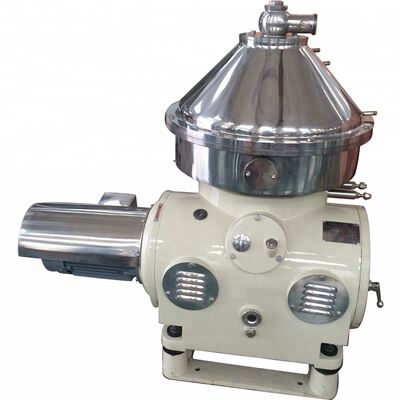

Disc Stack 2 Phase Milk Clarify Centrifuge Separator

Disc Stack 2 Phase Milk Clarify Centrifuge Separator
Disc Stack 2 Phase Milk Clarify Centrifuge Separator Disc Stack 2 Phase Milk Clarify Centrifuge Separator Disc Stack 2 Phase Milk Clarify Centrifuge Separator Disc Stack 2 Phase Milk Clarify Centrifuge Separator Disc Stack 2 Phase Milk Clarify Centrifuge Separator Disc Stack 2 Phase Milk Clarify Centrifuge Separator

Large Image :  Disc Stack 2 Phase Milk Clarify Centrifuge Separator

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $90,000-100,000
Contact Now

Disc Stack 2 Phase Milk Clarify Centrifuge Separator

Description
Voltage: 220V/380V/400V/440V/460V Power: 15kw(20.12hp)
Dimensions: 1800*1200*1800 Weight: 2000 KG
Setting Speed: 4000 RPM Motor Power: 7.5kw-22 Kw
Capacity: 501-1000l/h, 500-10000LPH Discharge Type: PLC Control Automatic Discharge
Bearing: SKF Bearing Centrifugal Type: High Speed Separation
Core Components: PLC, Motor Material: Super Stainless Steel
Speed Range: 5000-12000 RPM Inlet Pressure: 0.05 Mpa
Outlet Pressure: 0.1-0.4 Mpa
Highlight:

2 phase milk clarifier centrifuge

,

disc stack oil separator

,

milk clarify centrifuge separator

Disc Stack 2 Phase Milk Clarify Centrifuge Separator
Product Overview
Juneng's disc stack 2-phase milk clarify centrifuge separator is engineered for precision separation in dairy processing. With specialized design features including centripetal pump and optimized inlet/outlet ports, this equipment ensures gentle material handling to preserve nutritional value, freshness, and original flavor while effectively separating cream from milk and removing impurities.
Applications
This centrifugal separator is primarily used in milk processing for continuous separation of cream and defatted milk from pure milk, while simultaneously removing impurities and sediments. It enables milk standardization based on fat content and can separate extremely small solid particles (less than 1mm) from liquid suspensions.
  • Hot milk separation
  • Cold milk separation
  • Whey protein separation
  • Buttermilk separation
  • Dairy whey clarification
  • Disinfection of dairy products
  • Casein processing
  • Syrup clarification
  • Vegetable juice clarification
  • Tea drinks, coffee, beer and other liquid clarification
Technical Specifications
DHN Model - Dairy Clarification
Model Capacity (L/H) Inlet Pressure Outlet Pressure Weight Dimension (mm)
DHN360 2000-5000 0.05 Mpa 0.1-0.35 Mpa 1200 kg 1530×1150×1500
DHN470 5000-10000 0.05 Mpa 0.1-0.4 Mpa 1600 kg 1800×1200×1750
DHN550 10000-20000 0.05 Mpa 0.1-0.4 Mpa 2300 kg 1950×1550×1960
DHN616 25000-35000 0.1 Mpa 0.3 Mpa 3000 kg 2185×1728×2082
DHNZ Model - Dairy Skimming
Model Capacity (L/H) Inlet Pressure Outlet Pressure Weight Dimension
DHNZ204 500-1000 0.05 Mpa 0.1-0.2 Mpa 520 kg 810×850×1350
DHNZ360 1000-3000 0.05 Mpa 0.1-0.2 Mpa 1200 kg 1530×1150×1500
DHNZ470 3000-7000 0.05 Mpa 0.1-0.2 Mpa 1600 kg 1800×1200×2030
DHNZ550 5000-10000 0.05 Mpa 0.1-0.2 Mpa 2300 kg 1950×1550×1960
Working Principle
The disc separator is designed for two-phase and three-phase separation. Two-phase separation involves separating suspended solids from liquid or separating two immiscible liquids with different specific gravity. Three-phase separation simultaneously separates two immiscible liquid phases and solid particles.
Disc Stack 2 Phase Milk Clarify Centrifuge Separator 0 Disc Stack 2 Phase Milk Clarify Centrifuge Separator 1
Key Advantages
  • Continuous feeding operation
  • High separation factor
  • Automatic residue discharging
  • CIP (Clean-in-Place) capability
  • Hydraulic coupling driving for longer service life
  • PLC system automatic control
  • Excellent milk skimming performance
  • High efficiency operation
  • Lower energy consumption
  • Gentle feeding and discharging through optimized inlet/outlet design
Technical Features
Rotating Bowl Drum Components
All parts and components contacting materials are manufactured from stainless steel, minimizing corrosion and meeting strict hygienic requirements for food processing. The separator bowl undergoes precise dynamic balancing for stable operation with minimal vibration and noise.
Disc Stack 2 Phase Milk Clarify Centrifuge Separator 2 Disc Stack 2 Phase Milk Clarify Centrifuge Separator 3
Bowl Assembly Specifications
Material: Super stainless steel
Function: High-speed operation
Assembly: Precision assembly
Speed: 5000-12000 RPM
Disc Stack 2 Phase Milk Clarify Centrifuge Separator 4
PLC Control System
The separator includes an automatic control cabinet featuring industrial computer and auto overload protection. This highly automated system provides excellent adaptability to process changes, easy adjustment capabilities, and significantly reduces operator workload.
Disc Stack 2 Phase Milk Clarify Centrifuge Separator 5
Quality Assurance
Juneng maintains a first-class laboratory with advanced instrumentation for comprehensive testing including chemical composition analysis, metallographic analysis, spectrum analysis, performance analysis, radiographic inspection, magnetic inspection, and ultrasonic inspection. This rigorous approach ensures every component meets the highest standards of stability and reliability.
Packaging & Delivery
Disc Stack 2 Phase Milk Clarify Centrifuge Separator 6
Packaging Specification Details
Size 1800(L) × 1800(W) × 1800(H) mm (varies by model)
Weight 1000kg - 3000kg
Packaging Details Standard wooden box packaging. European exports include fumigated wooden boxes. Alternative packaging available for tight containers or special customer requirements.
International Collaboration
Juneng focuses on international technical and commercial collaboration, learning from advanced management systems and expertise from the United States, Canada, Germany, Russia, and Southeast Asian countries. This global perspective drives continuous improvement and innovation.
Disc Stack 2 Phase Milk Clarify Centrifuge Separator 7 Disc Stack 2 Phase Milk Clarify Centrifuge Separator 8
Frequently Asked Questions
Disc Stack 2 Phase Milk Clarify Centrifuge Separator 9
Factory Visits
Q: How can we visit your factory?
A: International visitors: fly to Shanghai airport, we provide airport pickup. Domestic visitors: fly or train to Wuxi station, we provide railway station pickup.
Quality Assurance
Q: How do you ensure product quality?
A: State-owned enterprise with 30+ years experience, strict operational policies, advanced processing machinery, licensed operators, international brand components, comprehensive testing throughout production.
Payment Methods
Q: What payment methods do you accept?
A: Primarily T/T and L/C at sight, with most standard payment methods accepted.
Warranty
Q: What is the warranty period?
A: 12 months warranty after commissioning.
Company Trust
Q: How can I trust your company?
A: 10+ years on Alibaba.com, golden supplier status, CE, ISO9001, Alibaba onsite check certifications, Trade Assurance Limit of US$42,000+.
Delivery
Q: What are shipment terms and delivery times?
A: Standard delivery: 20 days. Customized machines: 30 days. Depends on order quantity.
Pricing
Q: Do you offer discounts?
A: We strive to provide competitive pricing with excellent service.
