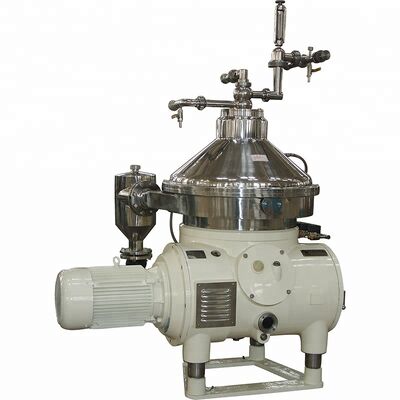

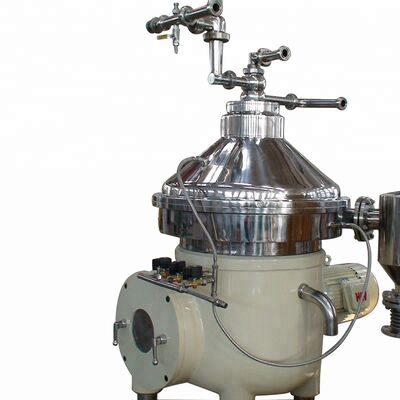

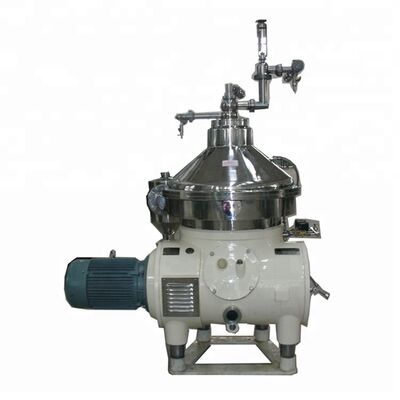

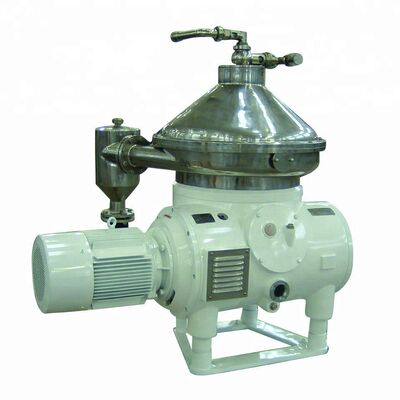

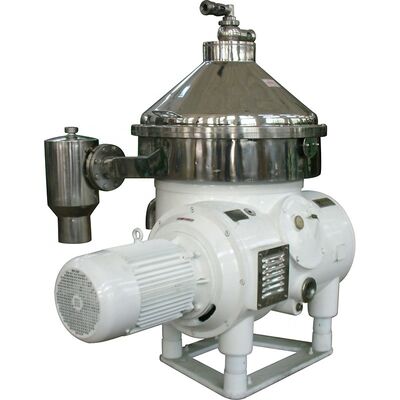

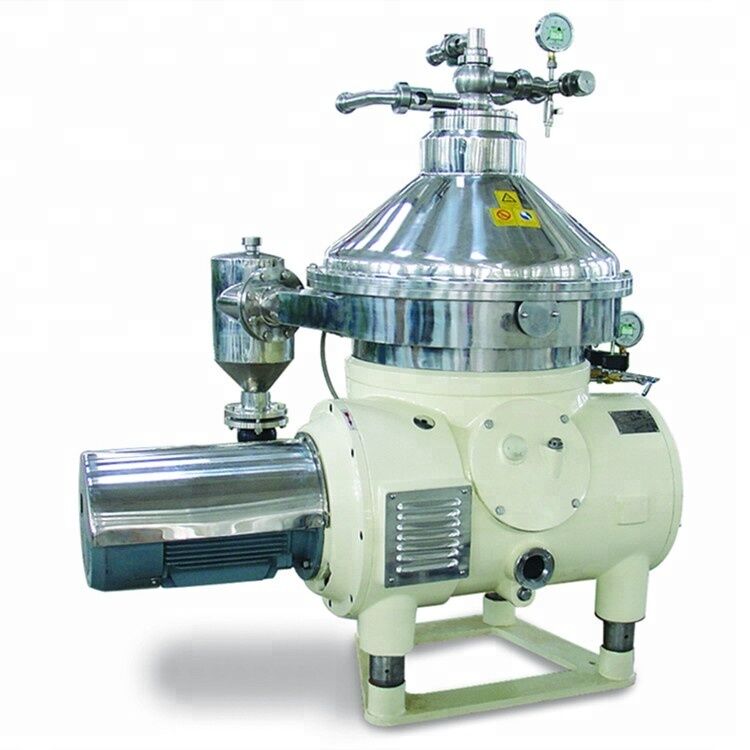

Continuous Operation Milk Cream Separation Disc Centrifuge Separator

Continuous Operation Milk Cream Separation Disc Centrifuge Separator
Continuous Operation Milk Cream Separation Disc Centrifuge Separator Continuous Operation Milk Cream Separation Disc Centrifuge Separator Continuous Operation Milk Cream Separation Disc Centrifuge Separator Continuous Operation Milk Cream Separation Disc Centrifuge Separator Continuous Operation Milk Cream Separation Disc Centrifuge Separator Continuous Operation Milk Cream Separation Disc Centrifuge Separator

Large Image :  Continuous Operation Milk Cream Separation Disc Centrifuge Separator

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Certification: CE ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $40,298-47,462
Contact Now

Continuous Operation Milk Cream Separation Disc Centrifuge Separator

Description
Voltage: 440V Power: 15000W
Dimensions: 1800*1200*1800mm Weight: 500KG
Setting Speed: 4000 RPM Motor Power: 7.5kw-22 Kw
Discharge Type: PLC Control Automatic Discharge Bearing: SKF Bearing
Capacity: 501-1000l/h, 500-10000LPH Core Components: PLC, Engine, Bearing, Motor
Material: Super Stainless Steel Speed Range: 5000-12000 RPM
Inlet Pressure: 0.05 Mpa Outlet Pressure: 0.1-0.4 Mpa
Function: Three Phase Separator
Highlight:

continuous operation milk separator

,

cream separation disc centrifuge

,

oil separator with disc centrifuge

Continuous Operation Milk Cream Separation Disc Centrifuge Separator
Juneng's centrifugal separator features specialized design for centripetal pump and inlet/outlet ports, creating a gentle separation environment that preserves active ingredients while maintaining nutritional value, freshness, and original flavor.
Separator Applications
Designed for milk processing industry applications, this separator continuously separates cream and defatted milk from pure milk while removing impurities and sediments. It enables milk standardization based on fat content and can separate extremely small solid particles (less than 1mm) dispersed in suspensions from the liquid phase.
DHN Model - Dairy Clarification
Model Capacity (L/H) Inlet Pressure Outlet Pressure Weight Dimension (mm)
DHN360 2000-5000 0.05 Mpa 0.1-0.35 Mpa 1200 kg 1530×1150×1500
DHN470 5000-10000 0.05 Mpa 0.1-0.4 Mpa 1600 kg 1800×1200×1750
DHN550 10000-20000 0.05 Mpa 0.1-0.4 Mpa 2300 kg 1950×1550×1960
DHN616 25000-35000 0.1 Mpa 0.3 Mpa 3000 kg 2185×1728×2082
DHNZ Model - Dairy Skimming
Model Capacity (L/H) Inlet Pressure Outlet Pressure Weight Dimension
DHNZ204 500-1000 0.05 Mpa 0.1-0.2 Mpa 520 kg 810×850×1350
DHNZ360 1000-3000 0.05 Mpa 0.1-0.2 Mpa 1200 kg 1530×1150×1500
DHNZ470 3000-7000 0.05 Mpa 0.1-0.2 Mpa 1600 kg 1800×1200×2030
DHNZ550 5000-10000 0.05 Mpa 0.1-0.2 Mpa 2300 kg 1950×1550×1960
3 Phase Separator Working Principle for Dairy Skimming
The disc separator is specially designed for two-phase and three-phase separation. Two-phase separation separates suspended solids from liquid or separates two immiscible liquids with different specific gravity. Three-phase separation simultaneously separates two immiscible liquid phases and a solid phase.
Continuous Operation Milk Cream Separation Disc Centrifuge Separator 0
2 Phase Separator Working Principle for Dairy Clarification
Clarification involves two-phase separation. Materials are fed into the machine's bowl interior where strong centrifugal force removes impurities from raw materials, producing clean milk.
Continuous Operation Milk Cream Separation Disc Centrifuge Separator 1
Separator Advantages
  • Continuous feeding operation
  • High separation factor
  • Automatic residue discharging
  • CIP (Clean-in-Place) capability
  • Hydraulic coupling driving for longer service life
  • PLC system automatic control
  • Excellent milk skimming performance
  • High efficiency operation
  • Lower energy consumption
  • Gentle feeding and discharging through inlet and outlet
Industry Applications
  • Hot milk separation
  • Cold milk separation
  • Whey protein separation
  • Buttermilk separation
  • Dairy whey clarification
  • Disinfection of dairy products
  • Casein processing
  • Syrup clarification
  • Vegetable juice clarification
  • Tea drinks, coffee, beer and other liquid clarification
Continuous Operation Milk Cream Separation Disc Centrifuge Separator 2 Continuous Operation Milk Cream Separation Disc Centrifuge Separator 3
Detailed Equipment Images
Continuous Operation Milk Cream Separation Disc Centrifuge Separator 4
Rotating Bowl Drum Components
All parts and components contacting materials are manufactured from stainless steel, minimizing corrosion and meeting food industry hygienic requirements. The separator bowl undergoes precise dynamic balancing for stable operation with low vibration and noise.
Continuous Operation Milk Cream Separation Disc Centrifuge Separator 5
Vertical and Horizontal Shaft Specifications
All components are constructed from stainless steel with high-quality machining and precision assembly. Operating speed ranges from 5000-12000 RPM.
Continuous Operation Milk Cream Separation Disc Centrifuge Separator 6
Material Super stainless steel
Function High-speed operation
Assembly Precision assembly
Speed 5000-12000 RPM
Continuous Operation Milk Cream Separation Disc Centrifuge Separator 7
PLC Control System
The separator includes an automatic control cabinet with industrial computer and auto overload protector, providing high automation, process adaptability, and reduced operator labor.
Continuous Operation Milk Cream Separation Disc Centrifuge Separator 8
Quality Assurance
Our company maintains a first-class laboratory for comprehensive testing including chemical composition analysis, metallographic analysis, spectrum analysis, performance analysis, radiographic inspection, magnetic inspection, and ultrasonic inspection. Advanced instrumentation and rigorous quality control ensure every product component is stable and reliable.
Packaging & Delivery
Continuous Operation Milk Cream Separation Disc Centrifuge Separator 9
Size 1800(L)×1800(W)×1800(H) - varies by model
Weight 1000kg-3000kg
Packaging Details Standard wooden box packaging. European exports include fumigated wooden boxes. Alternative packaging available for container constraints or special customer requirements.
Company Overview
Continuous Operation Milk Cream Separation Disc Centrifuge Separator 10
Juneng focuses on international technical collaboration and commercial exchange, learning from experts in the United States, Canada, Germany, Russia, and Southeast Asia to advance management systems and operational experience.
Continuous Operation Milk Cream Separation Disc Centrifuge Separator 11
Production Facilities
As China's largest production factory for separators, centrifuges, and filters, we maintain extensive manufacturing capabilities.
Continuous Operation Milk Cream Separation Disc Centrifuge Separator 12
Service Support
Continuous Operation Milk Cream Separation Disc Centrifuge Separator 13
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing arrangements
Continuous Operation Milk Cream Separation Disc Centrifuge Separator 14
After-Sales Service
  • Machine installation training
  • Machine operation training
  • Overseas engineer service availability
Certifications & Honors
Continuous Operation Milk Cream Separation Disc Centrifuge Separator 15
Frequently Asked Questions
Continuous Operation Milk Cream Separation Disc Centrifuge Separator 16
How can we visit your factory?
International visitors: Fly to Shanghai airport for pickup. Domestic visitors: Travel to Wuxi station by air or train for pickup at railway station.
How do you ensure product quality?
As a state-owned enterprise with over 30 years experience, we implement strict operational policies, advanced processing machines, licensed workers, international brand components, and comprehensive testing throughout production.
What payment methods do you accept?
We accept most payment methods, primarily T/T and L/C at sight.
What is the warranty period?
12 months warranty after commissioning.
How can I trust your company?
10+ years on Alibaba.com as golden suppliers, with CE, ISO9001, Alibaba onsite check certificates, and Trade Assurance Limit of US$42,000+.
What are shipment terms and delivery time?
Standard delivery: 20 days. Customized machines: 30 days, depending on order quantity.
Do you offer discounts?
We strive to provide competitive pricing with excellent service.
