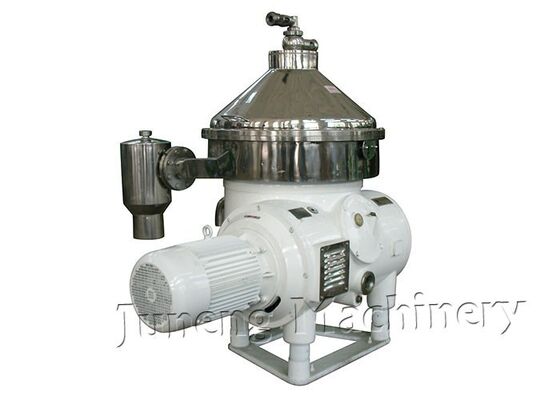

Self Cleaning Solid Bowl Milk Cream Separator Machine

Self Cleaning Solid Bowl Milk Cream Separator Machine
Self Cleaning Solid Bowl Milk Cream Separator Machine Self Cleaning Solid Bowl Milk Cream Separator Machine Self Cleaning Solid Bowl Milk Cream Separator Machine Self Cleaning Solid Bowl Milk Cream Separator Machine Self Cleaning Solid Bowl Milk Cream Separator Machine Self Cleaning Solid Bowl Milk Cream Separator Machine

Large Image :  Self Cleaning Solid Bowl Milk Cream Separator Machine

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $12,000-17,910
Contact Now

Self Cleaning Solid Bowl Milk Cream Separator Machine

Description
Voltage: 220V/50Hz Or Customized Power: 4000W
Weight: 500kg Dimensions: 920*800*835 Mm
Production Capacity: 500-5000L/H Material: 304/316L Stainless Steel
Motor Power: 7.5kw-22 Kw Capacity: 500-10000LPH
Discharge Type: PLC Control Automatic Discharge Bearing: SKF Bearing
Process Capacity: 300-500 L/H Control: PLC
Operation: Continuously Centrifugal Type: High Speed Separation
Core Components: PLC, Bearing, Motor
Highlight:

self cleaning milk cream separator

,

solid bowl cream separator machine

,

disc oil separator with warranty

Self Cleaning Solid Bowl Milk Cream Separator Machine
Advanced self-cleaning solid bowl milk cream separator designed for continuous operation in dairy processing applications.
Self Cleaning Solid Bowl Milk Cream Separator Machine 0 Self Cleaning Solid Bowl Milk Cream Separator Machine 1
Technical Specifications
Model DH603
Material SS304
Process Capacity 300-500 L/H
Control System PLC
Operation Mode Continuous
Product Overview
The milk cream separator is engineered for dairy processing applications, continuously separating cream and defatted milk from pure milk while removing impurities and sediments. This system enables milk standardization based on fat content and effectively separates extremely small solid particles (less than 1mm) dispersed in suspensions from the liquid phase.
Key Features & Advantages
  • Continuous feeding operation
  • High separation factor for superior performance
  • Automatic residue discharging system
  • CIP (Clean-in-Place) capability
  • Hydraulic coupling driving for extended service life
  • PLC system automatic control
  • Excellent milk skimming performance
  • High operational efficiency
  • Low energy consumption
  • Soft feeding and discharging of inlet and outlet
Applications
  • Hot milk separation
  • Cold milk separation
  • Whey protein separation
  • Buttermilk separation
  • Dairy whey clarification
  • Disinfection of dairy products
  • Casein processing
  • Syrup clarification
  • Vegetable juice clarification
  • Tea drinks, coffee, beer and other liquid clarification
Self Cleaning Solid Bowl Milk Cream Separator Machine 2 Self Cleaning Solid Bowl Milk Cream Separator Machine 3 Self Cleaning Solid Bowl Milk Cream Separator Machine 4 Self Cleaning Solid Bowl Milk Cream Separator Machine 5
Separator Drum
The drum is the heart of the separator, rotating at high speed to separate materials. It receives power through precise taper fitting with the vertical shaft.
Self Cleaning Solid Bowl Milk Cream Separator Machine 6 Self Cleaning Solid Bowl Milk Cream Separator Machine 7 Self Cleaning Solid Bowl Milk Cream Separator Machine 8 Self Cleaning Solid Bowl Milk Cream Separator Machine 9
Drive System
The vertical shaft transmits power and is equipped with speed step-up gear and high-speed rotating components. The cross shaft transfers motor power to the vertical shaft and main drum parts.
PLC Control System
The separator features PLC control for easy, straightforward operation with clear display interface and high automation. The system ensures complete residue discharge during separation, reducing labor requirements and minimizing downtime losses.
Self Cleaning Solid Bowl Milk Cream Separator Machine 10 Self Cleaning Solid Bowl Milk Cream Separator Machine 11
Packaging & Delivery
Self Cleaning Solid Bowl Milk Cream Separator Machine 12 Self Cleaning Solid Bowl Milk Cream Separator Machine 13
Size 1800(L) × 1800(W) × 1800(H) mm (varies by model)
Weight 550kg
Packaging Details Standard wooden box packaging. European exports include fumigated wooden boxes. Alternative packaging available for tight containers or special customer requirements.
Quality Assurance & Control
  • Material Test Report
  • Magnetic Particle Examination
  • Nondestructive Examination
  • Liquid Penetrant Examination
  • Dynamic Balancing Test
  • Radiographic Examination
Service & Support
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing arrangements
After-Sales Service
  • Installation guidance and training
  • Operator training programs
  • Overseas engineer service support
Our professional after-sales service technical team provides comprehensive support including installation guidance, debugging assistance, and operator training. We guarantee two-hour response times and on-site problem resolution until complete customer satisfaction.
Self Cleaning Solid Bowl Milk Cream Separator Machine 14 Self Cleaning Solid Bowl Milk Cream Separator Machine 15 Self Cleaning Solid Bowl Milk Cream Separator Machine 16 Self Cleaning Solid Bowl Milk Cream Separator Machine 17
