Continuous Milk Cream Disc Stack Dairy Separator Centrifuge

Continuous Milk Cream Disc Stack Dairy Separator Centrifuge
Continuous Milk Cream Disc Stack Dairy Separator Centrifuge Continuous Milk Cream Disc Stack Dairy Separator Centrifuge Continuous Milk Cream Disc Stack Dairy Separator Centrifuge Continuous Milk Cream Disc Stack Dairy Separator Centrifuge Continuous Milk Cream Disc Stack Dairy Separator Centrifuge

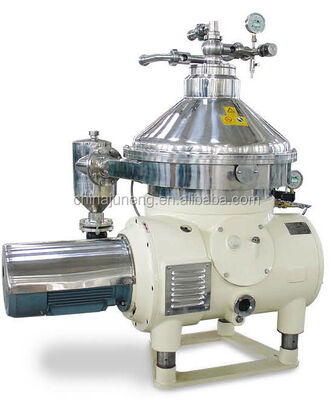

Large Image :  Continuous Milk Cream Disc Stack Dairy Separator Centrifuge

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $80,000
Contact Now

Continuous Milk Cream Disc Stack Dairy Separator Centrifuge

Description
Voltage: 220V Power: 37000W
Dimensions: 2185*1728*2082 Mm Weight: 3000 KG
Setting Speed: 4000 RPM Material: 304/316L Stainless Steel
Operation Type: Continuous Processing Medium: Milk
Capacity Range: 501-1000l/h, 25000-35000 L/H Inlet Pressure: 0.05-0.1 Mpa
Outlet Pressure: 0.1-0.35 Mpa Max Speed: 12000 RPM
Bowl Material: Super Stainless Steel Separation Factor: High
Discharge Type: Automatic Residue Discharging
Highlight:

dairy separator centrifuge machine

,

disc stack milk cream separator

,

continuous flow dairy centrifuge

Continuous Milk Cream Disc Stack Dairy Separator Centrifuge
This continuous milk cream disc stack separator centrifuge is designed for the dairy processing industry, efficiently separating cream and skim milk from whole milk while removing impurities and sediments. It enables milk standardization based on fat content requirements.
Separator Applications
Juneng separators effectively separate extremely small solid particles (as small as 1mm) dispersed in suspensions from the liquid phase. Applications include:
  • Hot milk separation
  • Cold milk separation
  • Whey protein separation
  • Buttermilk separation
  • Dairy whey clarification
  • Disinfection of dairy products
  • Casein processing
  • Syrup clarification
  • Tea drinks, coffee, beer and other liquid clarification
DHN Model Series - Dairy Clarification
Model Capacity (L/H) Inlet Pressure Outlet Pressure Weight Dimension (mm)
DHN360 2000-5000 0.05 Mpa 0.1-0.35 Mpa 1200 kg 1530×1150×1500
DHN470 5000-10000 0.05 Mpa 0.1-0.4 Mpa 1600 kg 1800×1200×1750
DHN550 10000-20000 0.05 Mpa 0.1-0.4 Mpa 2300 kg 1950×1550×1960
DHN616 25000-35000 0.1 Mpa 0.3 Mpa 3000 kg 2185×1728×2082
DHNZ Model Series - Dairy Skimming
Model Capacity (L/H) Inlet Pressure Outlet Pressure Weight Dimension
DHNZ204 500-1000 0.05 Mpa 0.1-0.2 Mpa 520 kg 810×850×1350
DHNZ360 1000-3000 0.05 Mpa 0.1-0.2 Mpa 1200 kg 1530×1150×1500
DHNZ470 3000-7000 0.05 Mpa 0.1-0.2 Mpa 1600 kg 1800×1200×2030
DHNZ550 5000-10000 0.05 Mpa 0.1-0.2 Mpa 2300 kg 1950×1550×1960
Key Advantages
  • Continuous feeding operation
  • High separation factor
  • Automatic residue discharging
  • CIP (Clean-in-Place) capability
  • Hydraulic coupling driving for longer service life
  • Excellent milk skimming performance
  • High operational efficiency
  • Lower energy consumption
  • Soft feeding and discharging of inlet and outlet
Product Images

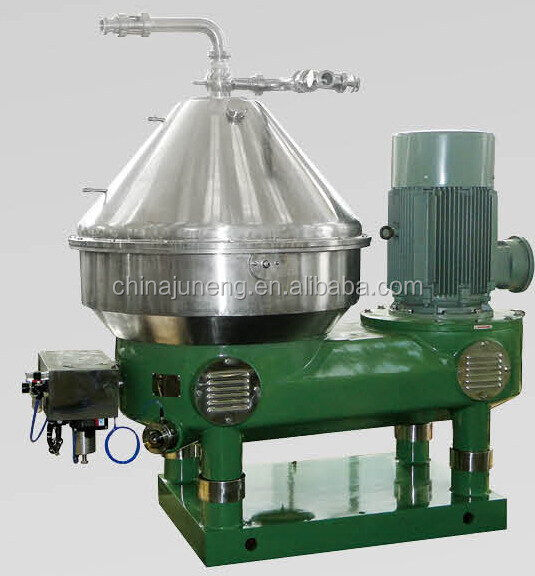

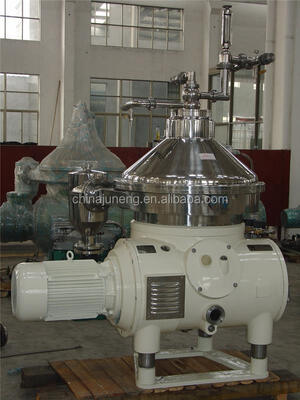

Continuous Milk Cream Disc Stack Dairy Separator Centrifuge 0 Continuous Milk Cream Disc Stack Dairy Separator Centrifuge 1
Rotating Bowl Drum Components
All parts and components contacting materials are manufactured from stainless steel, effectively minimizing corrosion from processed materials and meeting strict hygienic requirements for food processing.
The separator bowl undergoes precise dynamic balancing, ensuring stable operation with minimal vibration and noise during processing.

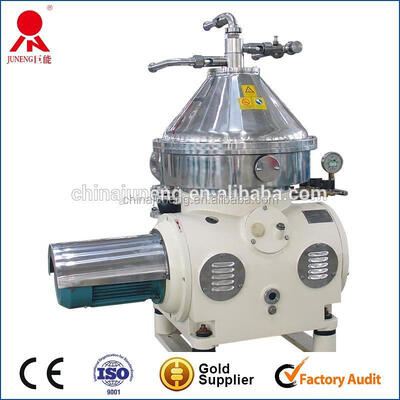

Continuous Milk Cream Disc Stack Dairy Separator Centrifuge 2
Technical Specifications
Material Super stainless steel
Function High-speed operation
Assembly Precision assembly
Speed 5000-12000 RPM

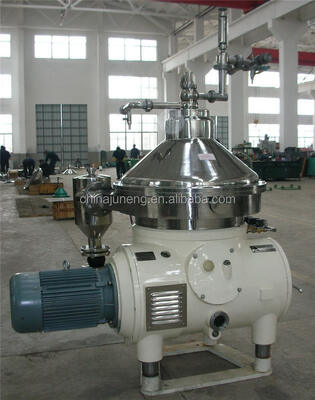

Continuous Milk Cream Disc Stack Dairy Separator Centrifuge 3 Continuous Milk Cream Disc Stack Dairy Separator Centrifuge 4
PLC Control System
The separator features an advanced automatic control cabinet with industrial computer and automatic overload protection. This highly automated system provides excellent adaptability to process changes, easy adjustment capabilities, and significantly reduces operator workload.
Continuous Milk Cream Disc Stack Dairy Separator Centrifuge 5
Quality Assurance
Our company maintains a first-class laboratory for comprehensive quality control including chemical composition analysis, metallographic analysis, spectrum analysis, performance testing, radiographic inspection, magnetic inspection, and ultrasonic inspection. We employ advanced instrumentation and rigorous procedures to ensure every product component is stable and reliable.
Packaging & Delivery
Continuous Milk Cream Disc Stack Dairy Separator Centrifuge 6
Size 1800(L)×1800(W)×1800(H) - varies by model
Weight 1000kg-3000kg
Packaging Details Standard wooden box packaging. For European exports, wooden boxes are fumigated. Alternative packaging available for container constraints or special customer requirements.
Company Overview
Juneng focuses on international technical collaboration and commercial exchange, learning from advanced management systems and expertise from the United States, Canada, Germany, Russia, and Southeast Asian countries. Our vision is to become an industry leader in China and worldwide.
Continuous Milk Cream Disc Stack Dairy Separator Centrifuge 7
Production Facilities
As the largest production factory in China for separators, centrifuges, and filters, we operate specialized assembly workshops with comprehensive manufacturing capabilities.
Continuous Milk Cream Disc Stack Dairy Separator Centrifuge 8 Continuous Milk Cream Disc Stack Dairy Separator Centrifuge 9
Customer Service
Continuous Milk Cream Disc Stack Dairy Separator Centrifuge 10 Continuous Milk Cream Disc Stack Dairy Separator Centrifuge 11
Pre-Sales Services
  • Inquiry and consulting support
  • Sample testing assistance
  • Factory viewing arrangements
After-Sales Services
  • Machine installation training
  • Operation and maintenance training
  • Overseas engineering service support
Certifications & Honors
Continuous Milk Cream Disc Stack Dairy Separator Centrifuge 12
Frequently Asked Questions
Continuous Milk Cream Disc Stack Dairy Separator Centrifuge 13
How can we visit your factory?
International visitors: Fly to Shanghai airport - we provide airport pickup. Domestic visitors: Travel to Wuxi station by air or train - we provide railway station pickup.
How do you ensure product quality?
As a state-owned enterprise with over 30 years of experience, we implement strict operational policies, advanced processing machinery, licensed operators, multi-stage part processing, international brand transmission and electrical components, and comprehensive testing throughout production.
What payment methods do you accept?
We accept most payment methods, primarily T/T and L/C at sight.
What is the warranty period?
Official warranty period is 12 months after commissioning.
How can I trust your company?
We have been on Alibaba.com for 10+ years as golden suppliers, hold CE, ISO9001, and Alibaba onsite check certifications, with Trade Assurance Limit of US$42,000+.
What are your delivery terms and timeline?
Standard delivery: 20 days. Customized machines: 30 days. Timeline depends on order quantity.
Do you offer discounts?
We strive to provide competitive pricing while maintaining excellent service quality.
