Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine

Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine
Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine

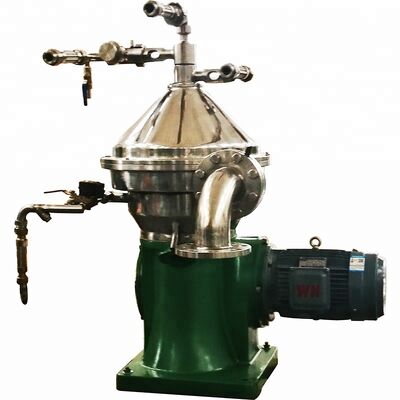

Large Image :  Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $14,390-15,150
Contact Now

Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine

Description
Voltage: 220V/380V/400V/440V/460V Power: 4kw
Dimensions: 810*850*1350 Mm Material: 304/316L Stainless Steel
Motor Power: 4kw Capacity: 500-1000LPH
Discharge Type: PLC Control Automatic Discharge Bearing: SKF Bearing
Weight: 520 Kg Centrifugal Type: High Speed Separation
Speed: 5000-12000 RPM Inlet Pressure: 0.05 Mpa
Outlet Pressure: 0.1-0.2 Mpa Function: Three Phase Separator
Core Components: Drum
Highlight:

stainless steel milk centrifuge separator

,

automatic disc stack separator machine

,

cream separator with warranty

Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine
Advanced automatic milk cream production disc type centrifuge separator designed for modern dairy processing requirements.
Separator Applications
As consumer demand for high-quality dairy products increases, advanced processing equipment becomes essential. Juneng centrifugal separators feature specially designed centripetal pumps and inlet/outlet ports that create gentle separation conditions, preserving active ingredients while maintaining nutritional value, freshness, and original flavor.
Primarily used in milk processing, this separator continuously separates cream and skim milk from whole milk while removing impurities and sediments. It also enables milk standardization based on fat content and can separate extremely small solid particles (less than 1mm) dispersed in suspensions from liquid phases.
DHN Model - Dairy Clarification
Model Capacity (L/H) Inlet Pressure Outlet Pressure Weight Dimension (mm)
DHN360 2000-5000 0.05 Mpa 0.1-0.35 Mpa 1200 kg 1530×1150×1500
DHN470 5000-10000 0.05 Mpa 0.1-0.4 Mpa 1600 kg 1800×1200×1750
DHN550 10000-20000 0.05 Mpa 0.1-0.4 Mpa 2300 kg 1950×1550×1960
DHN616 25000-35000 0.1 Mpa 0.3 Mpa 3000 kg 2185×1728×2082
DHNZ Model - Dairy Skimming
Model Capacity (L/H) Inlet Pressure Outlet Pressure Weight Dimension
DHNZ204 500-1000 0.05 Mpa 0.1-0.2 Mpa 520 kg 810×850×1350
DHNZ360 1000-3000 0.05 Mpa 0.1-0.2 Mpa 1200 kg 1530×1150×1500
DHNZ470 3000-7000 0.05 Mpa 0.1-0.2 Mpa 1600 kg 1800×1200×2030
DHNZ550 5000-10000 0.05 Mpa 0.1-0.2 Mpa 2300 kg 1950×1550×1960
Working Principle - Dairy Skimming
The disc separator is specifically designed for two-phase and three-phase separation processes. Two-phase separation involves separating suspended solids from liquids or separating two immiscible liquids with different specific gravities. Three-phase separation simultaneously separates two immiscible liquid phases and a solid phase.
Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine 0
Working Principle - Dairy Clarification
Clarification involves two-phase separation where materials are fed into the machine's bowl interior. Under strong centrifugal force, impurities are removed from raw materials to produce clean, clarified milk.
Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine 1
Key Advantages
  • Continuous feeding operation
  • High separation factor
  • Automatic residue discharging
  • CIP (Clean-in-Place) capability
  • Hydraulic coupling drive for extended service life
  • PLC system automatic control
  • Excellent milk skimming performance
  • High operational efficiency
  • Low energy consumption
  • Gentle feeding and discharging through optimized inlet/outlet design
Industry Applications
  • Hot milk separation
  • Cold milk separation
  • Whey protein separation
  • Buttermilk separation
  • Dairy whey clarification
  • Disinfection of dairy products
  • Casein processing
  • Syrup clarification
  • Vegetable juice clarification
  • Tea drinks, coffee, beer and other liquid clarification
Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine 2 Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine 3
Detailed Equipment Images
Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine 4
Rotating Bowl Drum Components
All parts and components contacting materials are manufactured from stainless steel, minimizing corrosion from processed materials while meeting strict food hygiene requirements. The separator bowl undergoes precise dynamic balancing for stable operation with minimal vibration and noise.
Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine 5
Vertical and Horizontal Shafts
All components are constructed from stainless steel with high-quality machining and precision assembly. The refining machine operates at speeds ranging from 5000-12000 RPM.
Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine 6
Material Super stainless steel
Function High-speed operation
Assembly Precision assembly
Speed 5000-12000 RPM
Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine 7
PLC Control System
The separator includes an automatic control cabinet featuring an industrial computer and automatic overload protection. This highly automated system adapts easily to process changes, requires minimal adjustment, and significantly reduces operator workload.
Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine 8
Quality Assurance & Equipment
Our company maintains a first-class laboratory for comprehensive analysis including chemical composition, metallographic analysis, spectrum analysis, performance testing, radiographic inspection, magnetic inspection, and ultrasonic inspection. We employ advanced instrumentation and rigorous quality control to ensure every product component is stable and reliable.
Packaging & Delivery
Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine 9
Size 1800(L)×1800(W)×1800(H) - varies by model
Weight 1000kg-3000kg
Packaging Details Standard wooden box packaging. European exports include fumigated wooden boxes. Alternative packaging available for tight containers or special customer requirements.
Our Company
Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine 10
Juneng focuses on international technical collaboration and commercial exchange to learn advanced management systems and expertise from partners in the United States, Canada, Germany, Russia, and Southeast Asia. Our vision is to become an industry leader in China and worldwide.
Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine 11
Customer Service
Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine 12 Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine 13
Pre-Sales Services
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing arrangements
After-Sales Services
  • Machine installation training
  • Machine operation training
  • Overseas engineer service availability
Certifications & Honors
Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine 14
Frequently Asked Questions
Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine 15
How can we visit your factory?
International visitors: Fly to Shanghai airport - we provide airport pickup. Domestic visitors: Travel to Wuxi station by air or train - we provide railway station pickup.
How do you ensure product quality?
As a state-owned enterprise with over 30 years of experience, we implement strict operational policies, use advanced processing machines for component precision, employ licensed operators, utilize international brand transmission and electrical parts, and conduct comprehensive testing throughout production.
What payment methods do you accept?
We accept most payment methods, primarily T/T and L/C at sight.
What is the warranty period?
12 months warranty after commissioning.
How can I trust your company as a new customer?
We have been an Alibaba Golden Supplier for 10+ years with certifications including CE, ISO9001, and Alibaba onsite check. Our Trade Assurance Limit is US$42,000 and growing.
What are your shipment terms and delivery time?
Standard delivery: 20 days. Customized machines: 30 days. Terms vary by order quantity.
Do you offer discounts?
We strive to provide competitive pricing while maintaining excellent service quality.
