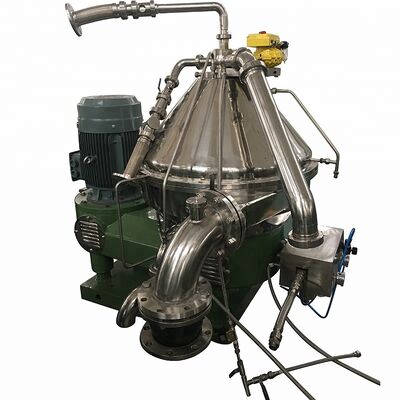

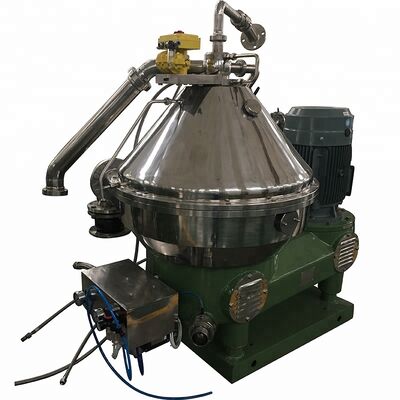

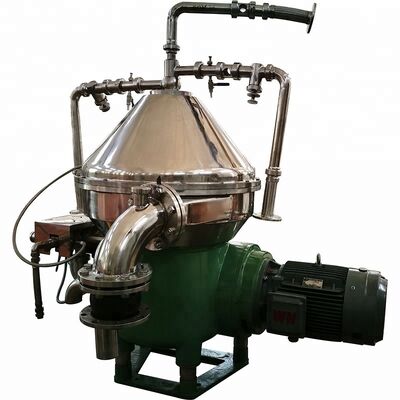

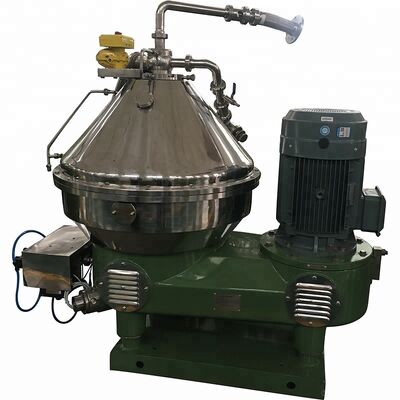

Automatic Discharge Disc Bowl Oil Separator for Soybean Oil

Automatic Discharge Disc Bowl Oil Separator for Soybean Oil
Automatic Discharge Disc Bowl Oil Separator for Soybean Oil Automatic Discharge Disc Bowl Oil Separator for Soybean Oil Automatic Discharge Disc Bowl Oil Separator for Soybean Oil Automatic Discharge Disc Bowl Oil Separator for Soybean Oil Automatic Discharge Disc Bowl Oil Separator for Soybean Oil Automatic Discharge Disc Bowl Oil Separator for Soybean Oil

Large Image :  Automatic Discharge Disc Bowl Oil Separator for Soybean Oil

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Certification: CE,ISO,BV
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $78,166-78,600
Contact Now

Automatic Discharge Disc Bowl Oil Separator for Soybean Oil

Description
Voltage: 220V/380V/460V Power: Depend On The Model
Capacity: 6000-15000L/H Weight: 2200 KG
Rotation Speed: 6000RPM Material: Food Grade Stainless Steel
Control System: PLC Inlet Pressure: 0.05-0.1 Mpa
Outlet Pressure: 0.1-0.3 Mpa Motor Power: 7.5-30 Kw
Outline Dimension: 1500*1150*1500 To 2100*1650*2300 Mm Core Components: PLC, Bearing, Motor
Processing Types: Edible Oil Bowl Design: Concise
Driving System: Hydraulic Coupling
Highlight:

automatic disc bowl oil separator

,

soybean oil separator machine

,

disc oil separator with warranty

Automatic Discharge Disc Bowl Oil Separator for Soybean Oil
The DHZ series automatic discharging separator is specialized equipment for oil and fat refining, featuring high rotating speed, operational stability, completely sealed inlet and outlet systems, low noise, and excellent separation efficiency.
Product Application
Juneng Separator is suitable for various oils and fats and provides personalized solutions to achieve optimal oil quality and maximize production capacity. DHZ series disc centrifuges for vegetable oil refining are widely used in continuous degumming, neutralizing, dewaxing, and washing of vegetable oils.
Technical Specifications
Model Treatment Capacity (L/H) Inlet Pressure (Mpa) Outlet Pressure (Mpa) Motor Power (Kw) Weight (Kg) Outline Dimension (mm)
DHZ3601200-25000.050.1-0.257.512801500*1150*1500
DHZ4702500-70000.050.1-0.251518801800*1200*1800
DHZ550A5000-100000.050.1-0.2518.522001850*1550*2050
DHZ550E6000-150000.050.1-0.252222001850*1550*2050
DHZ70015000-300000.10.23033002100*1650*2300
DRZ3601200-25000.050.1-0.255.57501250*1050*1500
DRZ400A2000-60000.050.1-0.37.511501300*900*1450
DRZ400E4000-75000.050.1-0.37.513001300*900*1500
DRZ5506000-180000.050.1-0.32222001620*1300*2200
Automatic Discharge Disc Bowl Oil Separator for Soybean Oil 0 Automatic Discharge Disc Bowl Oil Separator for Soybean Oil 1 Automatic Discharge Disc Bowl Oil Separator for Soybean Oil 2
Main Features
  • Higher Production Capacity: Continuous feeding, high separation factor, automatic residue discharging
  • Lower Maintenance Costs: Concise bowl design without frequent washing, hydraulic coupling driving with longer service life
  • No Need of Manual Monitoring: PLC automatic control system
Certifications
Automatic Discharge Disc Bowl Oil Separator for Soybean Oil 3
Detailed Images
Automatic Discharge Disc Bowl Oil Separator for Soybean Oil 4

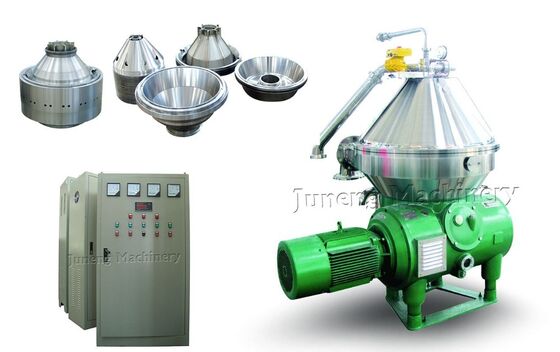

Machine Parts
Name: Separator disc
Brand: Juneng
Origin: China
Domestic famous engines
Main Parts
Name: Separator shaft
Brand: Juneng
Origin: China
Vertical shaft, cross shaft
Automatic Discharge Disc Bowl Oil Separator for Soybean Oil 5 Automatic Discharge Disc Bowl Oil Separator for Soybean Oil 6
Machine Parts
Name: Separator drum
Brand: Juneng
Origin: China
Domestic famous engines
Our Service
Automatic Discharge Disc Bowl Oil Separator for Soybean Oil 7 Automatic Discharge Disc Bowl Oil Separator for Soybean Oil 8
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing opportunities
After-Sales Service
  • Machine installation training
  • Machine operation training
  • Engineers available for overseas machinery service
Packing & Delivery
Automatic Discharge Disc Bowl Oil Separator for Soybean Oil 9
Size: 123 (L) * 456 (W) * 789 (D)
Weight: 1.2 T
Packaging Details: The normal package is wooden box (Size: L*W*H). If exporting to European countries, the wooden box will be fumigated. If container space is limited, we use PE film for packing or accommodate special customer requests.
