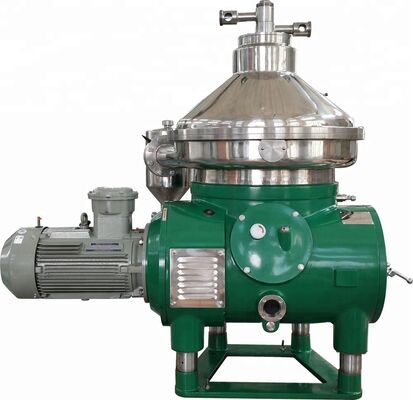

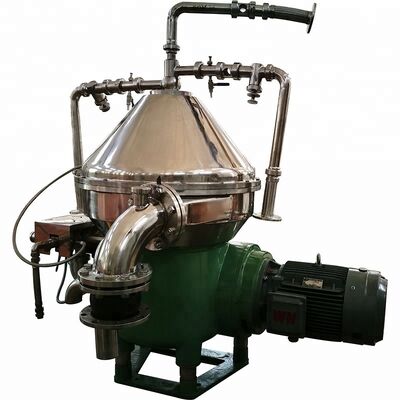

Continuous Disc Stack Oil Centrifugal Separator

Continuous Disc Stack Oil Centrifugal Separator
Continuous Disc Stack Oil Centrifugal Separator Continuous Disc Stack Oil Centrifugal Separator Continuous Disc Stack Oil Centrifugal Separator

Large Image :  Continuous Disc Stack Oil Centrifugal Separator

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Certification: CE ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: R$136,422.36
Contact Now

Continuous Disc Stack Oil Centrifugal Separator

Description
Voltage: 220V/380V/440V/460V Power: 15 Kw
Dimensions: 1800*1200*1800 Mm Weight: 1880 Kg
Material: SUS304 Capacity: 5000-10000L/H
Function: Separation Processing: Clarifying
Inlet Pressure: 0.05 Mpa Outlet Pressure: 0.1-0.25 Mpa
Motor Power: 15 Kw Treatment Capacity: 3000-10000 L/H
Max Viscosity: 380cst/50ºC Product Type: Mineral Oil
Type: Separating Plant
Highlight:

continuous disc stack oil separator

,

centrifugal oil separator with warranty

,

industrial disc oil separator

Continuous Disc Stack Oil Centrifugal Separator
Product Overview
The mineral oil separator is designed for purification of used fuel oil from ships and land stations, as well as lubrication regeneration. Utilizing advanced centrifuge technology, this equipment efficiently processes oil by removing water, sludge, colloids, emulsions, and other impurities while enhancing equipment maintenance levels.
Operation can continue without machine shutdown or oil replacement, featuring low noise levels and high purification capacity. The system reduces diesel engine wear, extends machine lifespan, and ensures normal operation. Maximum treated oil viscosity: 380cst/50ºC (3500SRW1/100ºF).
Continuous Disc Stack Oil Centrifugal Separator 0 Continuous Disc Stack Oil Centrifugal Separator 1
Applications
  • Treatment of fuel oil
  • Treatment of lubricating oil
  • Treatment of oil, water and solid substances
  • Treatment of drilling slurry
  • Water removal from crude oil
  • Treatment of cooling lubricant
  • Treatment and water removal of lubricant and hydraulic oil
  • Treatment of waste emulsion and waste oil
  • Treatment of aging oil
Continuous Disc Stack Oil Centrifugal Separator 2 Continuous Disc Stack Oil Centrifugal Separator 3 Continuous Disc Stack Oil Centrifugal Separator 4 Continuous Disc Stack Oil Centrifugal Separator 5
Technical Specifications
Model Treatment Capacity (L/H) Inlet Pressure (MPa) Outlet Pressure (MPa) Motor Power (kW) Weight (Kg) Outline Dimension (mm)
DHKY360 1000-5000 0.05 0.1-0.25 7.5 1280 1500×1150×1500
DHKY470 3000-10000 0.05 0.1-0.25 15 1880 1800×1200×1800
DHKY550 5000-20000 0.05 0.1-0.25 22 2200 1850×1550×2050
Certifications
Continuous Disc Stack Oil Centrifugal Separator 6 Continuous Disc Stack Oil Centrifugal Separator 7
Detailed Images
Continuous Disc Stack Oil Centrifugal Separator 8 Continuous Disc Stack Oil Centrifugal Separator 9
Key Components
Disc
Brand: Juneng
Origin: China
Domestic famous engines
Shaft
Brand: Juneng
Origin: China
Domestic famous engines
Continuous Disc Stack Oil Centrifugal Separator 10 Continuous Disc Stack Oil Centrifugal Separator 11 Continuous Disc Stack Oil Centrifugal Separator 12 Continuous Disc Stack Oil Centrifugal Separator 13
Drum
Brand: Juneng
Origin: China
Domestic famous engines
Engine Base
Brand: Juneng
Origin: China
Domestic famous engines
Continuous Disc Stack Oil Centrifugal Separator 14 Continuous Disc Stack Oil Centrifugal Separator 15
Our Services
Continuous Disc Stack Oil Centrifugal Separator 16 Continuous Disc Stack Oil Centrifugal Separator 17 Continuous Disc Stack Oil Centrifugal Separator 18 Continuous Disc Stack Oil Centrifugal Separator 19
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing opportunities
After-Sales Service
  • Machine installation training
  • Machine operation training
  • Overseas engineer service availability
Packaging & Delivery
Continuous Disc Stack Oil Centrifugal Separator 20 Continuous Disc Stack Oil Centrifugal Separator 21
Packaging Specifications
Size: 123 (L) × 456 (W) × 789 (D)
Weight: 1.2 T
Packaging Details: Standard packaging uses wooden boxes (Size: L×W×H). For European exports, wooden boxes are fumigated. For tight container fits, PE film packaging is used, or custom packaging according to customer requirements.
