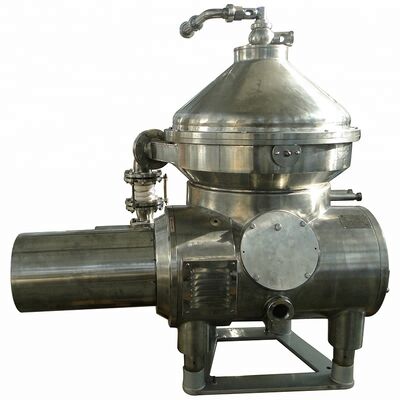

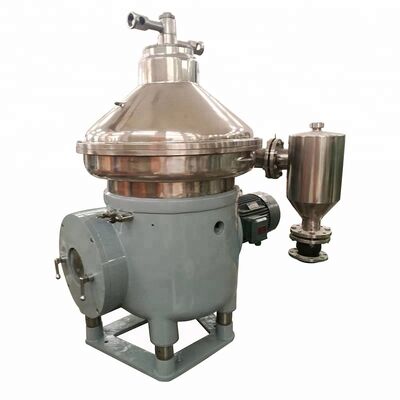

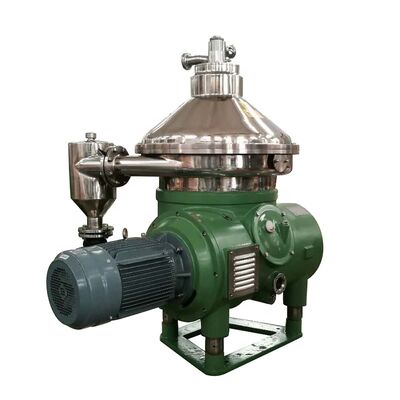

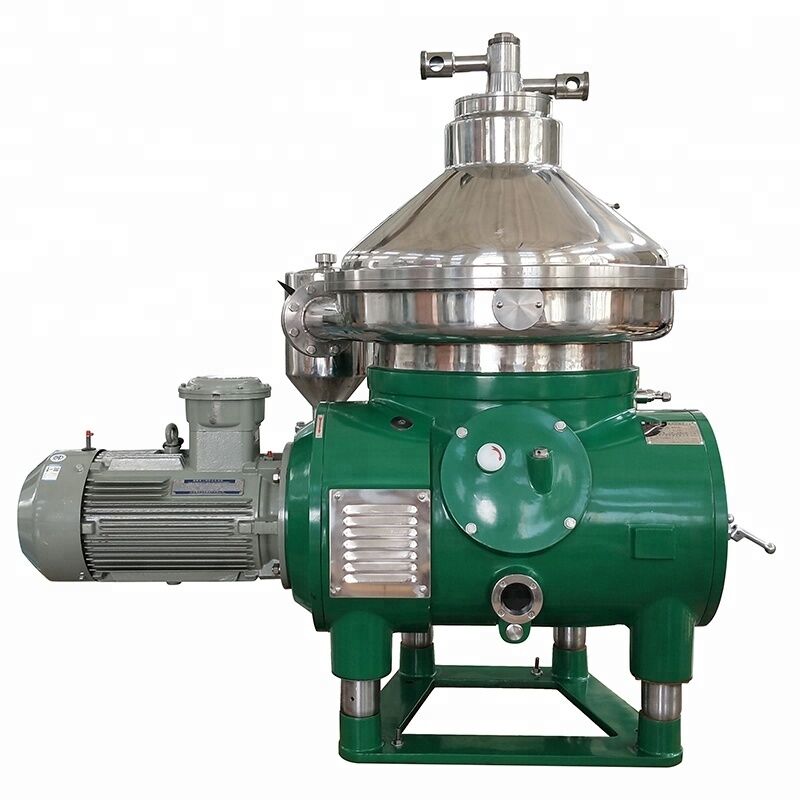

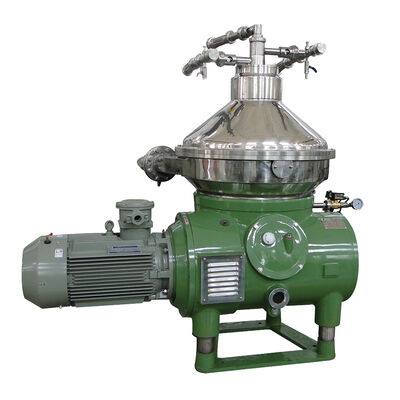

Industrial Disc Centrifuge Machine for Waste Oil

Industrial Disc Centrifuge Machine for Waste Oil
Industrial Disc Centrifuge Machine for Waste Oil Industrial Disc Centrifuge Machine for Waste Oil Industrial Disc Centrifuge Machine for Waste Oil Industrial Disc Centrifuge Machine for Waste Oil Industrial Disc Centrifuge Machine for Waste Oil Industrial Disc Centrifuge Machine for Waste Oil

Large Image :  Industrial Disc Centrifuge Machine for Waste Oil

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Certification: ISO 9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $35,000-36,778
Contact Now

Industrial Disc Centrifuge Machine for Waste Oil

Description
Voltage: Customized Power: 15000 W
Dimensions: 1800*1200*1800 Mm Weight: 1800 KG
Capacity: 501-1000l/h, 2000-5000 L/H Setting Speed: 4000 RPM
Material: Stainless Steel Centrifugal Type: Disc Stack
Core Components: PLC, Motor Inlet Pressure: 0.05 Mpa
Outlet Pressure: 0.1-0.3 Mpa Motor Power: 15 Kw
Outline Dimension: 1800*1200*1800 Mm Function: Washing And Separation
Type: Separating Plant
Highlight:

industrial disc centrifuge for oil

,

waste oil separator machine

,

disc oil centrifuge separator

Industrial Disc Centrifuge Machine for Waste Oil
Our industrial disc centrifuge machine is specifically engineered for the efficient separation of kitchen waste oil and illegal cooking oil, enabling the production of valuable resources including biogas, biodiesel, organic fertilizer, and high-protein feed.
Product Applications
This advanced separation technology addresses the challenging oil-water-solid separation requirements in waste oil treatment processes. Our engineers have developed specialized disk separators that maximize separation efficiency under extreme operating conditions.
Industrial Disc Centrifuge Machine for Waste Oil 0
Competitive Advantages
  • Stationary centripetal pumps for both heavy phase and light phase output
  • Large and small centripetal pumps mounted on the drum top for efficient phase separation
  • Multiple specific gravity rings available for different material densities and volumes
Technical Specifications for Fermentation Liquor
Model Treatment Capacity (L/H) Inlet Pressure (MPa) Outlet Pressure (MPa) Motor Power (kW) Weight (Kg) Outline Dimension (mm)
DHFY211 2000-5000 0.05 0.1-0.3 15 1880 1800×1200×1800
DHFY214 4000-10000 0.05 0.1-0.3 22 2200 1850×1550×2050
Certifications
Industrial Disc Centrifuge Machine for Waste Oil 1 Industrial Disc Centrifuge Machine for Waste Oil 2
Key Components
Name: Drum
Brand: Juneng
Origin: China
The drum serves as the core separation component, rotating at high speeds to achieve optimal separation. It receives power through precise taper fitting with the vertical shaft. Each drum component is individually numbered to prevent interchangeability. Disk sets are sequentially assembled on the distributor, with disks and drum cover secured by disk glands.
Industrial Disc Centrifuge Machine for Waste Oil 3 Industrial Disc Centrifuge Machine for Waste Oil 4
Maintenance & Service
During the warranty period, our engineers provide door-to-door service when necessary, or customers can return faulty equipment to our factory free of charge. Post-warranty service is available at standard rates.
Industrial Disc Centrifuge Machine for Waste Oil 5
Pre-Sales Services
  • Technical inquiry and consulting support
  • Sample testing assistance
  • Factory visit arrangements
Industrial Disc Centrifuge Machine for Waste Oil 6
After-Sales Services
  • Comprehensive installation and operation training
  • Overseas engineering support for machinery service
Company Overview
Industrial Disc Centrifuge Machine for Waste Oil 7
Operational Principles
Strategy: Professional dedication to building core competitiveness
Market: European quality standards at competitive Chinese pricing
Management: Practical, standardized, and continuously improving
Service: Honest, responsible, and timely support
Talent: Merit-based, cooperative, and caring workforce
Technology: Leadership in separation technology innovation
Development Philosophy
We continuously strengthen our capabilities through innovative thinking, allocating 5% of sales revenue to intensive research and 8% of our workforce to development activities. This commitment results in numerous patents and high-quality new products.
Packaging & Delivery
Industrial Disc Centrifuge Machine for Waste Oil 8
Packaging Specification Details
Size 123 (L) × 456 (W) × 789 (H)
Weight 1.2 Tons
Packaging Details Standard wooden box packaging. European exports include fumigated wooden boxes. Alternative packaging available for tight containers or special customer requirements.
