Vertical Two Phase Marine Oily Water Fuel Filter Separator

Vertical Two Phase Marine Oily Water Fuel Filter Separator
Vertical Two Phase Marine Oily Water Fuel Filter Separator Vertical Two Phase Marine Oily Water Fuel Filter Separator Vertical Two Phase Marine Oily Water Fuel Filter Separator

Large Image :  Vertical Two Phase Marine Oily Water Fuel Filter Separator

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Certification: CE ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $30,000-31,000
Contact Now

Vertical Two Phase Marine Oily Water Fuel Filter Separator

Description
Voltage: 220V/380V/440V/460V Power: 15 Kw
Dimensions: 1800*1200*1800 Mm Material: SUS304/SUS316
Capacity: 5000-10000L/H Function: Separation
Processing: Clarifying Type: Separating Plant
Weight: 1880 Kg Inlet Pressure: 0.05 Mpa
Outlet Pressure: 0.1-0.25 Mpa Motor Power: 15 Kw
Max Viscosity: 380cst/50ºC Core Components: PLC, Bearing, Motor
Noise Level: Low
Highlight:

marine fuel filter separator

,

two phase oil water separator

,

vertical disc oil separator

Vertical Two Phase Marine Oily Water Fuel Filter Separator
Product Overview

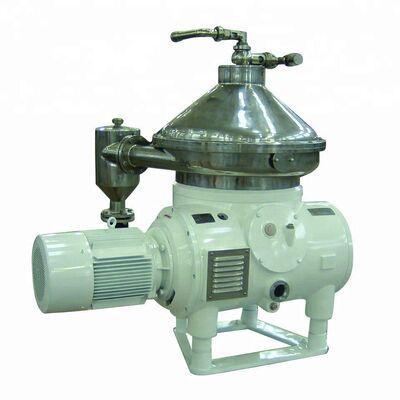

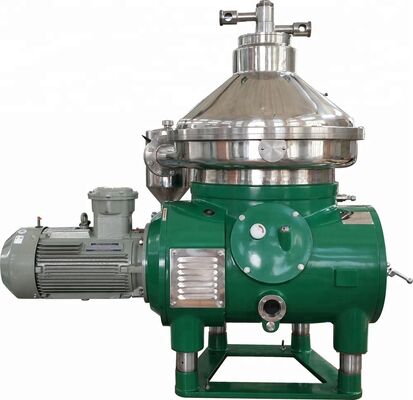

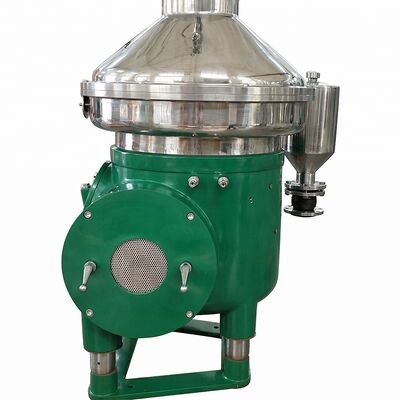

The Juneng Vertical Two Phase Marine Oily Water Fuel Filter Separator utilizes advanced centrifuge technology for efficient purification of fuel and lubrication oils in marine and land-based applications. This system effectively removes water, sludge, colloids, emulsions, and other impurities while extending equipment lifespan.
Key Applications
  • Fuel treatment and purification
  • Lubrication oil treatment and regeneration
  • Oil, water, and solid substance separation
  • Drilling slurry treatment
  • Crude oil water removal
  • Cooling lubricant treatment
  • Lubricant and hydraulic oil water removal
  • Waste emulsion and waste oil processing
  • Aging oil treatment and restoration
Vertical Two Phase Marine Oily Water Fuel Filter Separator 0 Vertical Two Phase Marine Oily Water Fuel Filter Separator 1 Vertical Two Phase Marine Oily Water Fuel Filter Separator 2
Technical Specifications
Model Treatment Capacity (L/H) Inlet Pressure (MPa) Outlet Pressure (MPa) Motor Power (kW) Weight (Kg) Outline Dimension (mm)
DHKY360 1000-5000 0.05 0.1-0.25 7.5 1280 1500×1150×1500
DHKY470 3000-10000 0.05 0.1-0.25 15 1880 1800×1200×1800
DHKY550 5000-20000 0.05 0.1-0.25 22 2200 1850×1550×2050
Key Components
Disc: Juneng brand, manufactured in China using domestic famous engines
Shaft: Juneng brand, manufactured in China using domestic famous engines
Drum: Juneng brand, manufactured in China using domestic famous engines
Engine Base: Juneng brand, manufactured in China using domestic famous engines
Vertical Two Phase Marine Oily Water Fuel Filter Separator 3 Vertical Two Phase Marine Oily Water Fuel Filter Separator 4 Vertical Two Phase Marine Oily Water Fuel Filter Separator 5
Quality Certifications
Vertical Two Phase Marine Oily Water Fuel Filter Separator 6
Service & Support
Pre-Sales Service:
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing and inspection
After-Sales Service:
  • Machine installation training
  • Operation and maintenance training
  • Overseas engineering service support
Vertical Two Phase Marine Oily Water Fuel Filter Separator 7 Vertical Two Phase Marine Oily Water Fuel Filter Separator 8
Packaging & Delivery
Package Size: 123 (L) × 456 (W) × 789 (D)
Weight: 1.2 Tons
Standard packaging includes wooden boxes (Size: L×W×H). For European exports, wooden boxes are fumigated. For tight container spaces, PE film packaging or custom packaging according to customer requirements is available.
Vertical Two Phase Marine Oily Water Fuel Filter Separator 9
