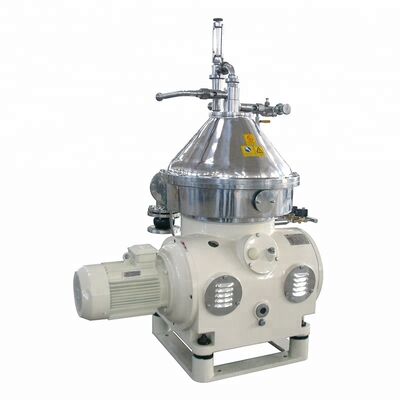

Industrial Milk Dairy Cream Disc Centrifuge Separator

Industrial Milk Dairy Cream Disc Centrifuge Separator
Industrial Milk Dairy Cream Disc Centrifuge Separator Industrial Milk Dairy Cream Disc Centrifuge Separator Industrial Milk Dairy Cream Disc Centrifuge Separator Industrial Milk Dairy Cream Disc Centrifuge Separator

Large Image :  Industrial Milk Dairy Cream Disc Centrifuge Separator

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $27,000-30,000
Contact Now

Industrial Milk Dairy Cream Disc Centrifuge Separator

Description
Voltage: 220V/380V Power: 15 KW
Weight: 1600 KG Dimensions: 1800*1200*1750
Material: SUS304/SUS316 Surface Treatment: Edge Covered With SS
Structure: Drum Capacity: 1000-3000L/H
Function: Separation Processing: Milk Skimming
Core Components: PLC, Bearing, Motor Inlet Pressure: 0.05 Mpa
Outlet Pressure: 0.1-0.3 Mpa Motor Power: 7.5 Kw
Outline Dimension: 1530*1150*1500
Highlight:

Industrial milk cream separator

,

Dairy disc centrifuge machine

,

Oil separator with warranty

Industrial Milk Dairy Cream Disc Centrifuge Separator
Juneng dairy separators feature large capacity, excellent deoiling performance, high efficiency, and lower energy consumption. The advanced inlet and outlet design ensures gentle treatment throughout the separation process, preventing destructive air from entering and maintaining product quality.
Product Applications
Milk products vary widely, from simple milk with different fat contents to diverse dairy products including butter, cheese, quark, yogurt, and more. Our separators are designed to handle this variety efficiently.
Industrial Milk Dairy Cream Disc Centrifuge Separator 0 Industrial Milk Dairy Cream Disc Centrifuge Separator 1 Industrial Milk Dairy Cream Disc Centrifuge Separator 2 Industrial Milk Dairy Cream Disc Centrifuge Separator 3
Main Features
  • High rotating speed
  • Operating stability
  • Completely sealed inlet and outlet system
  • Lower noise operation
  • Perfect separation efficiency
Technical Specifications
Model Treatment Capacity (L/H) Inlet Pressure (Mpa) Outlet Pressure (Mpa) Motor Power (Kw) Weight (Kg) Outline Dimension (mm)
DHNZ204 1000-1500 0.05 0.1-0.2 4 520 810*850*1350
DHNZ360 1000-3000 0.05 0.1-0.3 7.5 1200 1530*1150*1500
DHNZ470 3000-7000 0.05 0.1-0.4 15 1600 1800*1200*2030
DHNZ550 5000-10000 0.05 0.1-0.4 22 2300 1950*1550*1960
Certifications
Industrial Milk Dairy Cream Disc Centrifuge Separator 4
Detailed Images
Industrial Milk Dairy Cream Disc Centrifuge Separator 5
Machine Components
Disc Assembly
Brand: Juneng
Origin: China
Domestic famous engines
Shaft System
Brand: Juneng
Origin: China
The vertical shaft transmits power and is equipped with speed step-up gear (small spiral gear) and high-speed rotating parts. The cross shaft transmits motor power to the vertical shaft and main components of the drum.
Industrial Milk Dairy Cream Disc Centrifuge Separator 6 Industrial Milk Dairy Cream Disc Centrifuge Separator 7
Drum Assembly
Brand: Juneng
Origin: China
The drum is the high-speed rotating component that separates materials and serves as the heart of the separator.
Equipment Base
Brand: Juneng
Origin: China
The underframe supports the entire separator and connects to the base. All four supporting feet are equipped with damping rubber pads that effectively isolate vibration between the separator and building structure.
Industrial Milk Dairy Cream Disc Centrifuge Separator 8
Our Services
Industrial Milk Dairy Cream Disc Centrifuge Separator 9 Industrial Milk Dairy Cream Disc Centrifuge Separator 10
Pre-Sales Services
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing arrangements
After-Sales Services
  • Machine installation training
  • Machine operation training
  • Overseas engineer service availability
Packaging & Delivery
Industrial Milk Dairy Cream Disc Centrifuge Separator 11
Packaging Specifications
Size: 123 (L) * 456 (W) * 789 (D)
Weight: 1.2 T
Standard packaging includes wooden boxes (Size: L*W*H). For European exports, wooden boxes are fumigated. For tight container spaces, we use PE film packaging or accommodate special customer requests.
