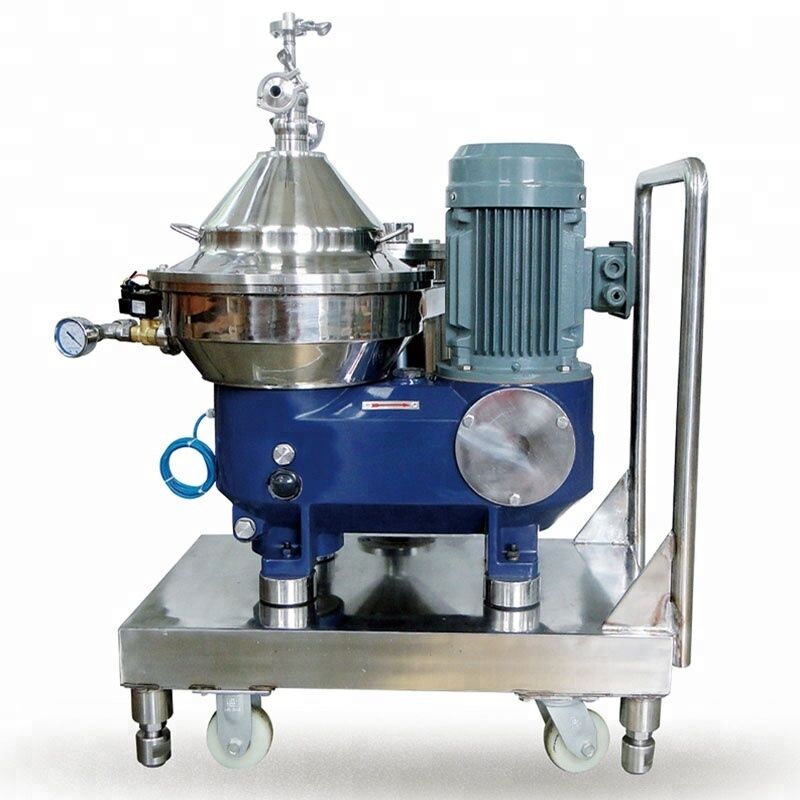

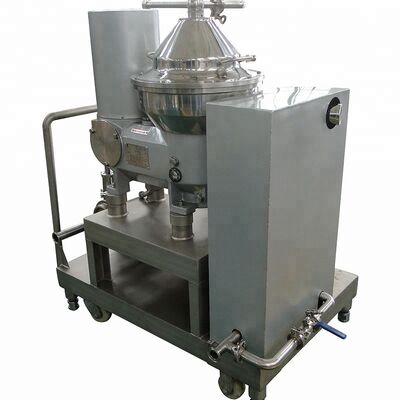

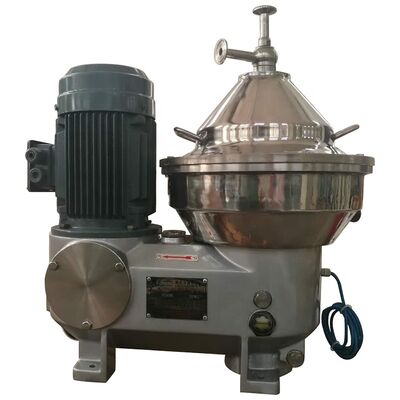

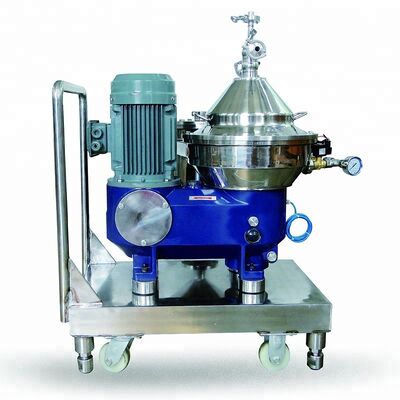

Industrial Soymilk Separator for Separating Plant
Juneng dairy separator features large capacity, excellent deoiling performance, high efficiency, and lower energy consumption. The advanced inlet and outlet design ensures gentle treatment throughout the separation process, preventing destructive air from entering and maintaining product quality.
Product Application
Milk products exhibit wide diversity, with even the simplest market milk containing different fat contents. Our separators are suitable for various dairy products including butter, cheese, quark, yogurt, and more.
Main Features
- High rotating speed for efficient separation
- Exceptional operating stability
- Completely sealed inlet and outlet system
- Lower noise operation
- Perfect separation efficiency
Technical Specifications
| Model |
Treatment Capacity (L/H) |
Inlet Pressure (Mpa) |
Outlet Pressure (Mpa) |
Motor Power (Kw) |
Weight (Kg) |
Outline Dimension (mm) |
| DHN360 |
2000-5000 |
0.05 |
0.1-0.35 |
7.5 |
1200 |
1530*1150*1500 |
| DHN470 |
5000-10000 |
0.05 |
0.1-0.4 |
15 |
1600 |
1800*1200*1750 |
| DHN550 |
10000-20000 |
0.05 |
0.1-0.4 |
22 |
2300 |
1950*1550*1960 |
| DHN616 |
25000-35000 |
0.1 |
0.3 |
37 |
3000 |
2185*1728*2082 |
Detailed Machine Components
Rotating Bowl Drum Parts
All parts and components contacting materials are manufactured from stainless steel, effectively minimizing corrosion from separated materials and meeting stringent food hygiene requirements.
Drum Assembly
The drum is the core component responsible for material separation, rotating at high speed as the heart of the separator. Each separator bowl undergoes precise dynamic balancing for stable operation with minimal vibration and noise.
Shaft System
The vertical shaft transmits power and is equipped with speed step-up gear and high-speed rotating components. The cross shaft transfers motor power to the vertical shaft and main drum parts.
Equipment Base
The underframe provides primary support for the entire separator and connects to the base. All four supporting feet feature damping rubber pads that effectively isolate vibration between the separator and building structure.
PLC Control Box
The separator includes an automatic control cabinet featuring industrial computer systems and auto overload protection. This highly automated system adapts well to process changes, is easily adjustable, and significantly reduces operational labor requirements.
Quality Certifications
Customer Service
Pre-Sales Service
- Comprehensive inquiry and consulting support
- Sample testing assistance
- Factory viewing opportunities
After-Sales Service
- Complete machine installation training
- Comprehensive operational training
- Overseas engineer service availability
Field Installation and Commissioning
Our company maintains a professional after-sales service technical team. For all sold products, engineers provide installation guidance, assist with debugging, and train operators until full proficiency is achieved. We guarantee two-hour response times for operational issues and ensure complete customer satisfaction before service departure.
Packaging & Delivery
Size: 123 (L) * 456 (W) * 789 (D)
Weight: 1.2 T
Packaging Details: Standard packaging includes wooden boxes (Size: L*W*H). European exports receive fumigated wooden boxes. For tight container situations, we use PE film packaging or accommodate special customer requests.
