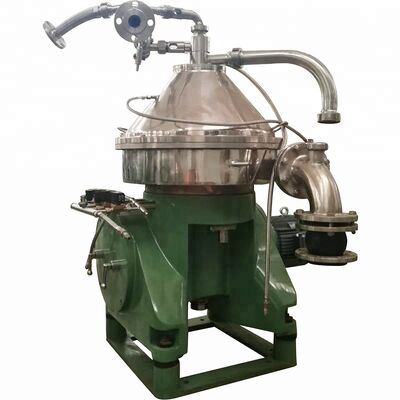

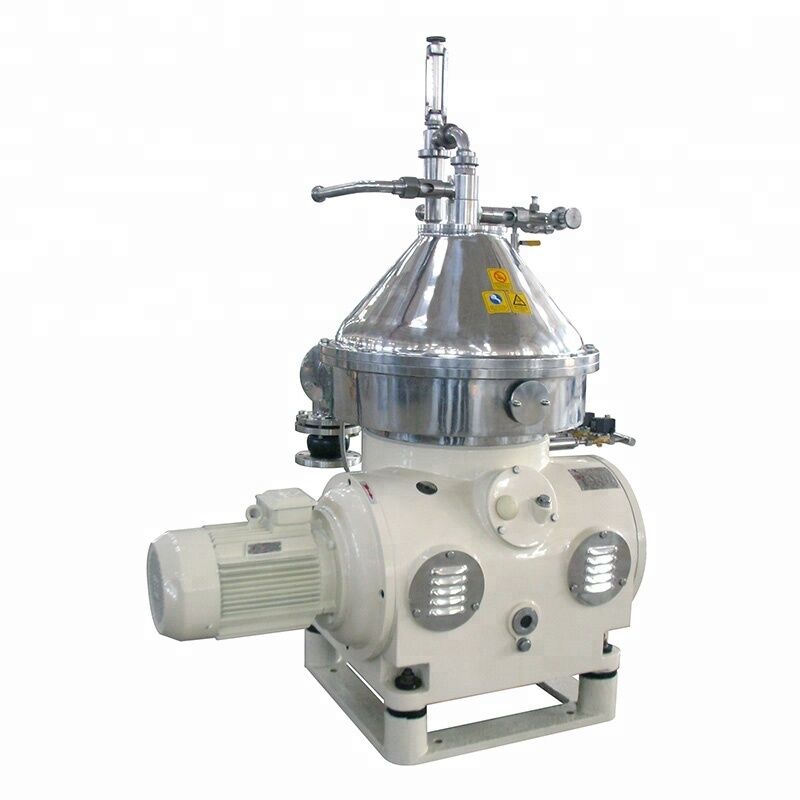

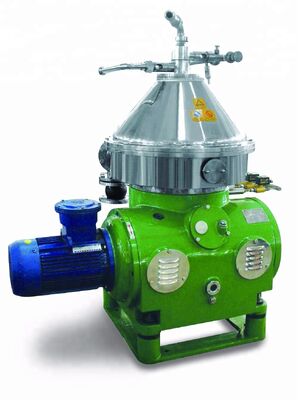

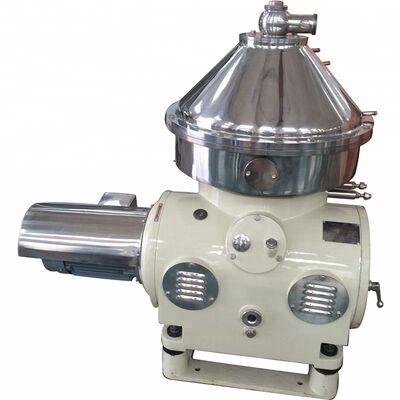

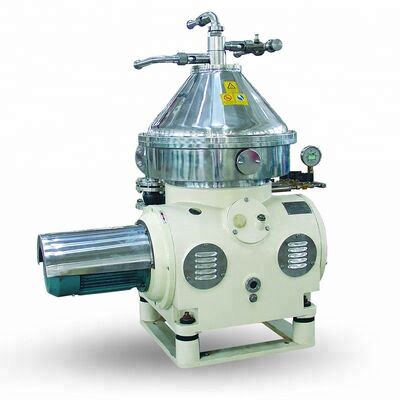

Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China

Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China
Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China

Large Image :  Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $15,679
Contact Now

Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China

Description
Voltage: 380 Power: 1000 W (1.34hp)
Motor Power: 4kw Capacity: 501-1000l/h, 1000-1500 LPH
Weight: 1000 Kg Setting Speed: 4000 RPM
Material: Stainless Steel 304 Centrifugal Type: High Speed Separation
Discharge Type: PLC Control Automatic Discharge Bearing: Famous Bearing Brand
Core Components: PLC, Bearing, Motor, Gear Operating Speed: 5000-12000 RPM
Inlet Pressure: 0.05 Mpa Outlet Pressure: 0.1-0.35 Mpa
Dimension: 1530*1150*1500 Mm
Highlight:

stainless steel milk cream separator

,

automatic disc stack separator

,

disc oil separator with warranty

Automatic Disc Stack Stainless Steel Milk Cream Separator
Advanced centrifugal separator designed for efficient milk cream production with precision engineering and automated control systems.
Separator Application
As consumer demand for high-quality dairy products increases, advanced processing equipment becomes essential. Juneng centrifugal separators feature specially designed centripetal pumps and inlet/outlet ports that create gentle separation conditions, preserving active ingredients and maintaining nutritional value, freshness, and original flavor.
Primarily used in milk processing, this separator continuously separates cream and defatted milk from pure milk while removing impurities and sediments. It also enables milk standardization based on fat content and can separate extremely small solid particles (less than 1mm) dispersed in suspensions from the liquid phase.
DHN Model - Dairy Clarification
Model Capacity L/H Inlet Pressure Outlet Pressure Weight Dimension (mm)
DHN360 2000-5000 0.05 Mpa 0.1-0.35 Mpa 1200 kg 1530×1150×1500
DHN470 5000-10000 0.05 Mpa 0.1-0.4 Mpa 1600 kg 1800×1200×1750
DHN550 10000-20000 0.05 Mpa 0.1-0.4 Mpa 2300 kg 1950×1550×1960
DHN616 25000-35000 0.1 Mpa 0.3 Mpa 3000 kg 2185×1728×2082
DHNZ Model - Dairy Skimming
Model Capacity L/H Inlet Pressure Outlet Pressure Weight Dimension
DHNZ204 500-1000 0.05 Mpa 0.1-0.2 Mpa 520 kg 810×850×1350
DHNZ360 1000-3000 0.05 Mpa 0.1-0.2 Mpa 1200 kg 1530×1150×1500
DHNZ470 3000-7000 0.05 Mpa 0.1-0.2 Mpa 1600 kg 1800×1200×2030
DHNZ550 5000-10000 0.05 Mpa 0.1-0.2 Mpa 2300 kg 1950×1550×1960
Working Principle for Dairy Skimming
The disc separator is specifically designed for two-phase and three-phase separation processes. Two-phase separation involves separating suspended solids from liquids or separating two immiscible liquids with different specific gravities. Three-phase separation simultaneously separates two immiscible liquid phases and a solid phase.
Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China 0
Working Principle for Dairy Clarification
Clarification involves two-phase separation where materials are fed into the machine's bowl. Under strong centrifugal force, impurities are removed from raw materials to produce clean milk.
Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China 1
Key Advantages
  • Continuous feeding operation
  • High separation factor
  • Automatic residue discharging
  • CIP (Clean-in-Place) capability
  • Hydraulic coupling driving for longer service life
  • PLC system automatic control
  • Excellent milk skimming performance
  • High operational efficiency
  • Lower energy consumption
  • Gentle feeding and discharging through optimized inlet/outlet design
Application Areas
  • Hot milk separation
  • Cold milk separation
  • Whey protein separation
  • Buttermilk separation
  • Dairy whey clarification
  • Disinfection of dairy products
  • Casein processing
  • Syrup clarification
  • Vegetable juice clarification
  • Tea drinks, coffee, beer and other liquid clarification
Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China 2 Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China 3 Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China 4
Detailed Equipment Images
Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China 5
Rotating Bowl Drum Components
All parts and components contacting materials are manufactured from stainless steel, minimizing corrosion from separated materials and meeting strict hygienic requirements for food processing. The separator bowl undergoes precise dynamic balancing for stable operation with minimal vibration and noise.
Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China 6
Vertical and Horizontal Shaft Assembly
Manufactured from high-quality stainless steel with precision machining and refining processes for optimal performance.
Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China 7
Material Super stainless steel
Function Running at high speed
Assembly Precision assembly
Speed 5000-12000 RPM
Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China 8
PLC Control System
Equipped with an automatic control cabinet containing industrial computer and auto overload protector. Highly automated system with excellent adaptability to process changes, easy adjustment capabilities, and significant reduction in operational labor requirements.
Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China 9
Quality Assurance
Our company maintains a first-class laboratory for comprehensive analysis including chemical composition, metallographic analysis, spectrum analysis, performance testing, radiographic inspection, magnetic inspection, and ultrasonic inspection. Advanced instrumentation and rigorous working standards ensure every product component is stable and reliable.
Packaging & Delivery
Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China 10
Size 1800(L) × 1800(W) × 1800(H) - varies by model
Weight 1000kg - 3000kg
Packaging Details Standard wooden box packaging. For European exports, wooden boxes are fumigated. Alternative packaging options available for tight container spaces or special customer requirements.
Company Overview
Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China 11
Juneng focuses on international technical collaboration and commercial exchange, learning from advanced management systems and expertise from the United States, Canada, Germany, Russia, and Southeast Asian countries. Committed to becoming an industry leader in China and worldwide.
Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China 12
Service Support
Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China 13
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing arrangements
Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China 14
After-Sales Service
  • Machine installation training
  • Machine operation training
  • Overseas engineer service availability
Certifications & Honors
Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China 15 Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China 16
Frequently Asked Questions
Automatic Disc Stack Stainless Steel Milk Cream Separator Made in China 17
How can we visit your factory?
International visitors: Fly to Shanghai airport, we provide airport pickup. Domestic visitors: Travel to Wuxi station by air or train, we provide railway station pickup.
How do you ensure product quality?
As a state-owned enterprise with over 30 years of experience, we implement strict operational policies. Advanced processing machines ensure component precision, all workers are licensed, parts undergo multiple processing stages, and transmission/electrical components use international famous brands. Comprehensive testing and inspection throughout production.
What payment methods do you accept?
We accept most payment methods, primarily T/T and L/C at sight.
What is the warranty period?
Official warranty period is 12 months after commissioning.
How can I trust your company for first-time business?
We have been on Alibaba.com for 10+ years as golden suppliers. Hold numerous authority certificates including CE, ISO9001, and Alibaba onsite check certification. Trade Assurance Limit: US$42,000+.
What are your shipment terms and delivery time?
Delivery time depends on order quantity. Standard delivery: 20 days. Customized machines: 30 days required.
Do you offer discounts?
We strive to provide competitive pricing while maintaining excellent service quality.
