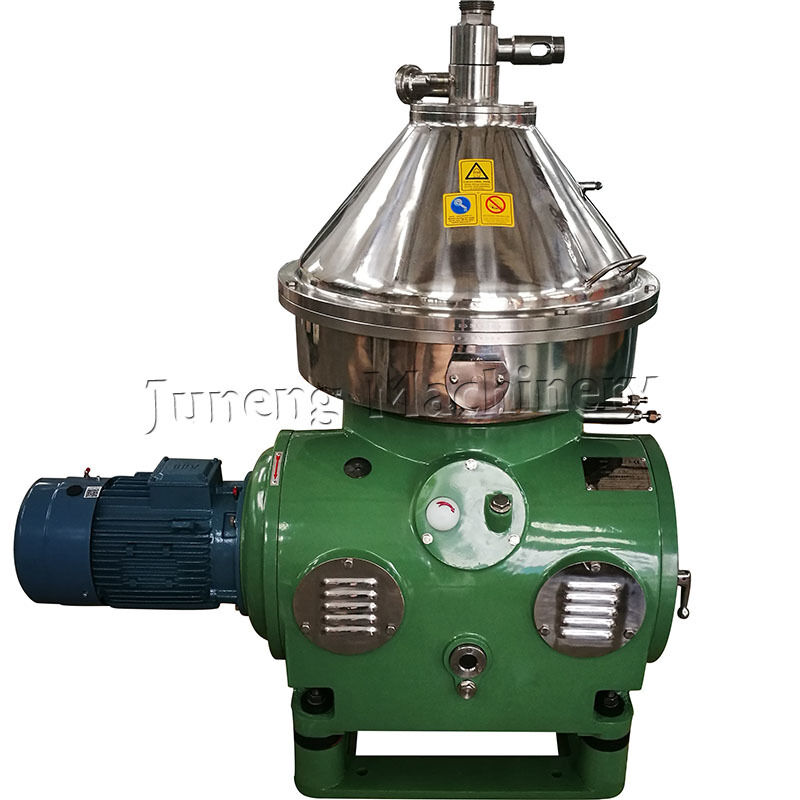

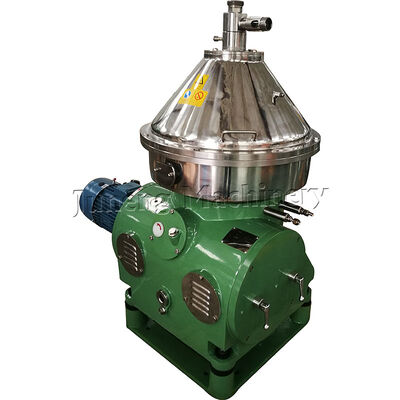

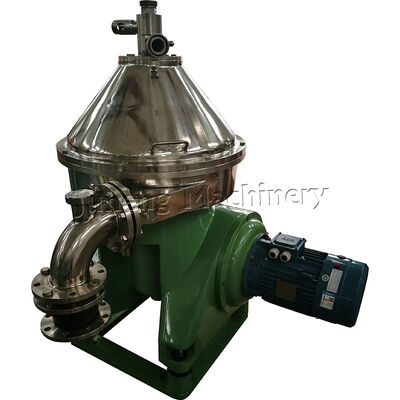

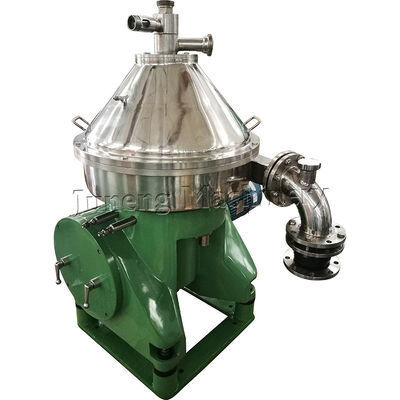

Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid

Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid
Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid

Large Image :  Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $17,910-20,895
Contact Now

Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid

Description
Voltage: 220V/380V/440V Power: 7500W
Dimensions: 1500*1130*1490 Mm Weight: 1500 KG
Speed: 4000 RPM Material: SS316L /304
Discharge Type: Automatic Discharge Motor Type: Explosion Proof
Capacity: 501-1000l/h, 1000-3500 L/H Core Components: PLC, Motor, Bearing
Drum Material: Stainless Steel Control System: PLC Control Box
Dynamic Balancing: Precise Vibration Isolation: Damping Rubber Pads
Noise Level: Low
Highlight:

Industrial high speed disk centrifuge

,

Small capacity liquid separator

,

Disc oil centrifuge separator

Industrial Small Capacity High Speed Disk Centrifuge Separator
Plant extracts utilize botanical raw materials to produce concentrated products containing one or more active components. These extracts maintain the original structure of active compounds through physical and chemical extraction and separation processes. Common plant extract components include glucosides, acids, polyphenols, polysaccharides, terpenes, flavonoids, and alkaloids. Final products are available in various forms including oils, concretes, powders, and crystals.
Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 0 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 0
Applications
This high-speed disk centrifuge separator is suitable for processing various plant materials including:
  • Tea / Ginkgo biloba / Radix isatidis / Salvia / Shuanghuanglian
  • Rutin / Loquat leaf / Mangosteen / Kaempferol / Honeysuckle
  • Amygdalin / Licorice / Stevia / Mulberry
Production Process
Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 2 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 2 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 4 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 4 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 6 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 6
Separator Process Workshop
Drum Processing
Process Center
Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 8 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 8 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 10 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 10 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 12 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 12
Ultrasonic Testing
Dynamic Balancing Test
Assembling
Quality Assurance & Quality Control
  • Material Test Report
  • Magnetic Particle Examination
  • Nondestructive Examination
  • Liquid Penetrant Examination
  • Dynamic Balancing Test
  • Radiographic Examination
Detailed Machine Components
Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 14 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 14
Rotating Bowl Drum Parts
Brand: Juneng | Origin: China
All material-contacting parts and components are manufactured from stainless steel, effectively minimizing corrosion from separated materials and meeting food industry hygiene requirements.
Drum Assembly
Brand: Juneng | Origin: China
The drum is the high-speed rotating component responsible for material separation and serves as the heart of the separator. Each separator bowl undergoes precise dynamic balancing to ensure stable operation with minimal vibration and noise.
Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 16 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 16 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 18 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 18
Shaft System
Brand: Juneng | Origin: China
The vertical shaft transmits power and incorporates speed step-up gear (small spiral gear) and high-speed rotating components. The cross shaft transfers motor power to the vertical shaft and serves as a primary component of the drum assembly.
Equipment Base
Brand: Juneng | Origin: China
The underframe provides primary support for the entire separator and connects to the base. All four supporting feet feature damping rubber pads that effectively isolate vibration between the separator and building structure.
Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 20 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 20 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 22 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 22
PLC Control System
Brand: Juneng | Origin: China
The separator features an automated control cabinet incorporating industrial computer systems and automatic overload protection. This highly automated system offers excellent adaptability to process changes, easy adjustment capabilities, and significantly reduces operational labor requirements.
Certifications
Our company has achieved numerous honors and obtained various international certifications including CE certificates, ASME U certificate, and ISO 9001 certification.
Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 24 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 24 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 26 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 26 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 28 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 28 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 30 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 30
Packaging & Delivery
Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 32 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 32
Specification Details
Size Varies by model
Weight 1000kg - 3000kg
Packaging Details Standard wooden box packaging (Size: L*W*H). European exports include fumigated wooden boxes. Alternative packaging available for tight containers or special customer requirements.
Transport Domestic: road transport | Overseas: sea or air freight
Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 34 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 34 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 36 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 36
Customer Service
Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 38 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 38 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 40 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 40
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing assistance
  • Factory viewing arrangements
After-Sales Service
  • Machine installation training
  • Comprehensive operational training
  • Overseas engineer service availability
After-Sales Service Technical Team
Our company maintains a professional after-sales service technical team. All products include engineer-guided installation, debugging assistance, and operator training until complete mastery. For operational issues, we guarantee two-hour response times and dispatch service engineers to resolve problems on-site until customer satisfaction is achieved.
Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 42 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 42 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 44 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 44
Company Profile
Juneng Group
Juneng Group is a large-scale industrial products manufacturer in China, specializing in research, development, and manufacturing of industrial filters, separators, centrifuges, and pumps. As an industry leader with approximately 90% domestic market share across oils & fats, chemical, pharmaceutical, beverage, and petrochemical industries, we are recognized as one of the world's prominent producers and suppliers.
Our company operates three production bases totaling 280,000 square meters in Nanjing and Yixing cities, employing over 1,100 permanent staff and equipped with more than 2,000 advanced production units and testing instrumentation.
Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 46 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 46
Jiangsu Juneng Machinery Co., Ltd in Yixing
We specialize in manufacturing disc separators and liquid pumps. Contact us for recommendations on the most suitable models for your specific requirements.
Operational Tenets of Juneng Group
  • Strategy: Professional dedication to building core competitiveness
  • Market: European quality standards with Chinese pricing
  • Management: Practical, standardized, and continuously improving
  • Service: Honest, responsible, and timely
  • Talent: Merit-based, cooperative, and caring
  • Technology: Technology leadership focus
Why Choose Juneng Brand
  • Internationally certified high-quality production chain
  • Direct manufacturer pricing advantages
  • Solid technical support and after-sales service
  • Exports to over 20 countries with positive customer feedback
  • Comprehensive one-stop service with customized project feasibility reports
Frequently Asked Questions
Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 48 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 48
How can we visit your factory?
International visitors: Fly to Shanghai airport for pickup. Domestic visitors: Travel to Wuxi station by air or train for pickup at the railway station.
How do you ensure product quality?
As a state-owned enterprise with over 30 years of experience, we implement strict operational policies, advanced processing machinery for component precision, licensed operators, multi-stage processing, international brand transmission and electrical components, and comprehensive testing throughout production.
What payment methods do you accept?
We accept most payment methods, primarily T/T and L/C at sight.
What is the warranty period?
Official warranty coverage is 12 months after commissioning.
How can I trust your company as a new customer?
With 10+ years on Alibaba.com as golden suppliers, numerous authority certifications (CE, ISO9001, Alibaba onsite check), and a Trade Assurance Limit of US$42,000 (increasing), we demonstrate proven reliability.
What are your shipment terms and delivery times?
Delivery times depend on order quantity: typically 20 days, with 30 days for customized machines.
Do you offer discounts?
We strive to provide competitive pricing combined with excellent service.
Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 50 Industrial Small Capacity High Speed Disk Centrifuge Separator for Liquid 50
