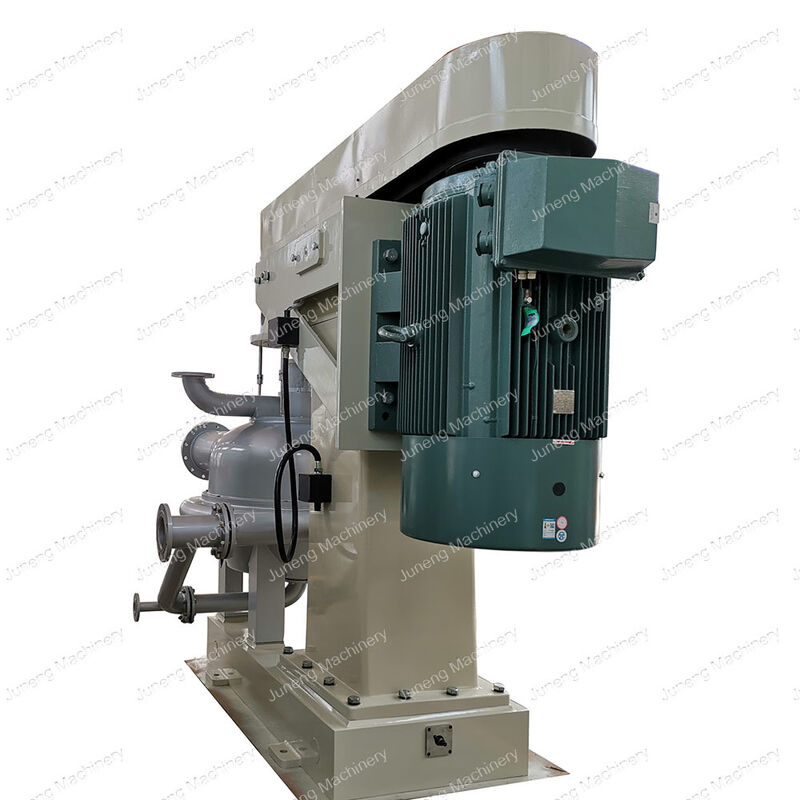

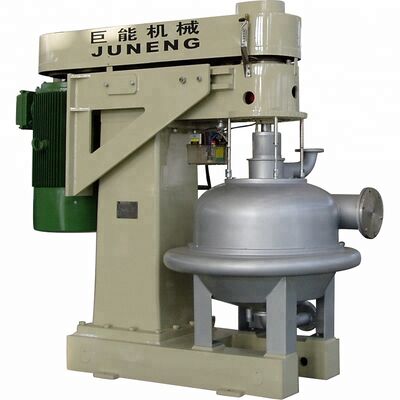

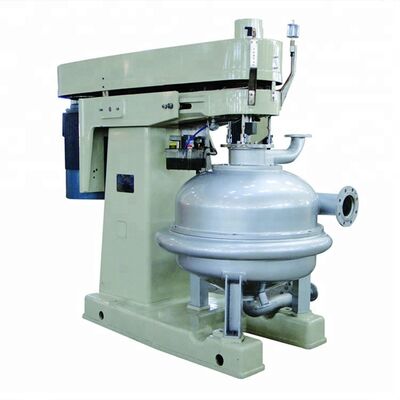

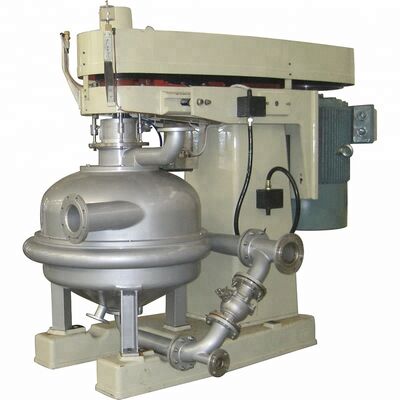

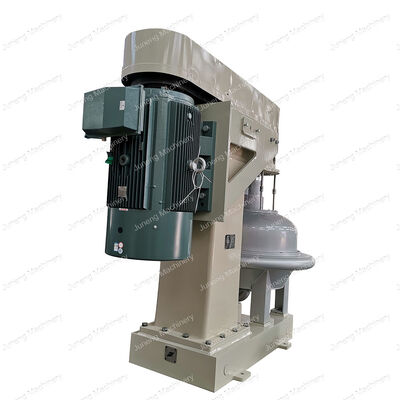

Large Capacity Corn Starch Concentration Centrifuge Separator
DPF800 disc separator is the primary equipment used in large-scale starch processing industries. Featuring an upper belt transmission structure with upper suspended main shaft support and nozzle discharge system, this separator delivers significantly higher operational benefits compared to other starch separator configurations.
Applications
- Corn starch and gluten separation
- Concentration of gluten
- Pre-concentration of starch milk
- Clarification processes
- Suitable for similar product separation applications
Technical Specifications
Main Components
The separator consists of base, cantilever, hydraulic oil cylinder, motor ram, main axis suspension device, drum, upper volute, and lower volute.
Structural Details
The base serves as the machine frame, connecting axis and pedestal. Lower shell and lifting oil cylinder cover are directly fixed to the base. The suspension branch installs motor ram and axis cantilever components, with upper volute suspended via three sleeves. Hydraulic pump station drives the suspension branch elevation, enabling rotation around oil cylinder axes.
Drum Assembly
Comprising drum axis, disk rack, drum body, drum cover, seal ring, disk, refluence pipe, diffluence pipe, and nozzle. The drum connects to the main axis through a large nut.
Axis Suspension System
Equipped with axis, bearings, and triangle strap on the upper side. Motor ram features rolling wheels for guide rail movement, with spring tensioner regulating triangle adhesive tape tension power.
| Inner Diameter of Drum |
800mm |
| Nozzle Diameter |
1.8 - 3.4 mm |
| Separation Factor |
Max 4600 |
| Main Axis Rotation Speed |
Max 3050 rpm |
| Motor Power |
90-132KW |
Manufacturer Profile
Juneng Group is a large-scale industrial products manufacturer in China, specializing in research, development, and manufacturing of industrial filters, separators, centrifuges, and pumps. With three production bases spanning 280,000 square meters in Nanjing and Yixing cities, the company employs over 1,100 personnel and operates more than 2,000 units of advanced production equipment and testing instrumentation.
Packaging & Delivery
Plastic film package inside, wooden case package outside for secure transportation.
Certifications
Our quality management system is certified with numerous international standards including ASME U (Certificate No.: 38793), ISO 9001:2015 (Certificate No.: CN1299-QC), ISO 14001:2015 (Certificate No.: CN1299-EC), ISO 45001:2018 (Certificate No.: CN1299-SC), BV, and CE certifications.
Industry Exhibitions
We actively participate in global industrial exhibitions including ACHEMA, AchemAsia 2019, ProFood Tech, 21st Interphex Week Japan, Spring and Autumn Canton Fair, and other domestic trade events.
Frequently Asked Questions
How can we visit your factory?
International visitors: Fly to Shanghai airport, we provide airport pickup. Domestic visitors: Travel to Wuxi station by air or train, we offer railway station pickup service.
How do you ensure the quality of your products?
As a state-owned enterprise with over 30 years of experience, we implement strict operational policies. Advanced processing machines ensure component precision, licensed operators, multi-stage processing, international brand transmission and electrical components, with comprehensive testing throughout production.
What payment methods does your company accept?
We accept most payment methods, primarily T/T and L/C at sight.
How long is the warranty time for your products?
Official warranty period is 12 months after commissioning.
I haven't done business with your company before, how can I trust your company?
We have been Alibaba.com golden suppliers for 10+ years with numerous authority certificates including CE, ISO9001, and Alibaba onsite check certification. Our Trade Assurance Limit is US$42,000 and growing.
What are the shipment terms and delivery time?
Delivery time depends on order quantity, typically 20 days. Customized machines may require 30 days.
Do you offer discounts?
We strive to provide competitive pricing while maintaining excellent service quality.
