Disc Stack Centrifuge Liquid Separation Chemical Machinery

Disc Stack Centrifuge Liquid Separation Chemical Machinery
Disc Stack Centrifuge Liquid Separation Chemical Machinery Disc Stack Centrifuge Liquid Separation Chemical Machinery Disc Stack Centrifuge Liquid Separation Chemical Machinery Disc Stack Centrifuge Liquid Separation Chemical Machinery Disc Stack Centrifuge Liquid Separation Chemical Machinery Disc Stack Centrifuge Liquid Separation Chemical Machinery

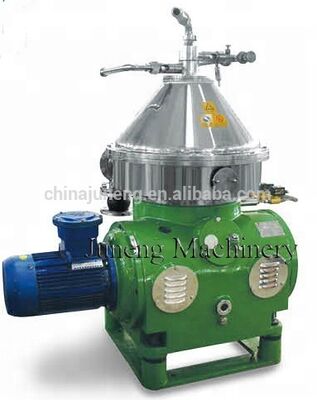

Large Image :  Disc Stack Centrifuge Liquid Separation Chemical Machinery

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Certification: CE, ISO, BV
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $41,511-45,662.10
Contact Now

Disc Stack Centrifuge Liquid Separation Chemical Machinery

Description
Voltage: 380V, 460V Power: 30 Kw
Dimensions: 1530*1150*1500 Mm Material: Stainless Steel
Control: PLC Type: Disc Stack, Separating Plant
Design: Conical Disc Bowl Weight: 1200 Kg
Treatment Capacity: 1500-3000 L/H Inlet Pressure: 0.1 Mpa
Outlet Pressure: 0.1-0.3 Mpa Motor Power: 7.5 Kw
Core Components: PLC, Engine, Bearing, Motor, Gear Color: Green Or Customized
Outline Dimension: 1530x1150x1500 Mm
Highlight:

disc stack centrifuge chemical separation

,

oil separator disc centrifuge machinery

,

liquid separation disc stack centrifuge

Disc Stack Centrifuge Liquid Separation Chemical Machinery
Our disc stack centrifuges are engineered to meet the demanding challenges of chemical industry separation processes, handling strong acids, strong alkalis, high temperatures, flammable substances, and severe abrasion conditions.
Technical Expertise
Our senior technical personnel develop customized solutions for each equipment application, ensuring optimal separation efficiency, operational safety, simplified operation, and lowest total cost.
DHNJ Chemical Separator Specifications
Main Operating Parameters
Treatment Capacity L/H 1500-3000
Inlet Pressure Mpa 0.1
Outlet Pressure Mpa 0.1-0.3
Motor Power Kw 7.5
Equipment Specifications
Weight Kg 1200
Outline Dimension mm 1530×1150×1500
Disc Stack Centrifuge Liquid Separation Chemical Machinery 0
Primary Applications
  • Lubricating oil additives
  • Glue liquid / viscose
  • PVC processing
  • Cellulose and derivatives
  • Inks and dyes
  • Phosphoric acid
  • Herbicides
  • Latex (synthetic)
  • Boiler ash
  • Catalyst separation
  • Lye processing
  • Salt separation
  • Suspensions containing metal, oxide, hydroxide and catalyst
Quality Certifications
Disc Stack Centrifuge Liquid Separation Chemical Machinery 1 Disc Stack Centrifuge Liquid Separation Chemical Machinery 2
Comprehensive Service Support
Disc Stack Centrifuge Liquid Separation Chemical Machinery 3
Pre-Sales Services
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing opportunities
Disc Stack Centrifuge Liquid Separation Chemical Machinery 4
After-Sales Services
  • Machine installation training
  • Machine operation training
  • Overseas engineer service support
Packaging & Delivery
Disc Stack Centrifuge Liquid Separation Chemical Machinery 5
Packaging Specifications
Size 238 (L) × 173 (W) × 2060 (D) cm
Weight 3500kg
Standard packaging includes wooden boxes (Size: L×W×H). For European exports, wooden boxes are fumigated. For tight container spaces, we use PE film packaging or accommodate special customer requests.
