Product Details:
|
| Voltage: | 380V Or Other | Power: | 22kw |
|---|---|---|---|
| Dimensions: | 1850x1550x2050 | Material: | Stainless Steel 304 |
| Structure: | Disk Stack | Operation: | Automatic Continuous Operation |
| Weight: | 2200kg | Inlet Pressure: | 0.05 Mpa |
| Outlet Pressure: | 0.1-0.3 Mpa | Motor Power: | 22 Kw |
| Treatment Capacity: | 6000-15000 L/H | Model: | DHSY550 |
| Type: | Centrifuge | Noise Level: | Low |
| Separation Efficiency: | High | ||

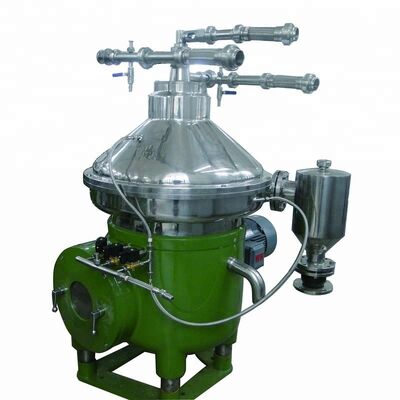

| Highlight: | Stainless Steel 304 Disc Oil Separator,Automatic Continuous Disc Oil Separator,Liquid Liquid Solid Separation Centrifuge |
||
| Model | Treatment Capacity (L/H) | Inlet Pressure (Mpa) | Outlet Pressure (Mpa) | Motor Power (Kw) | Weight (Kg) | Outline Dimension (mm) |
|---|---|---|---|---|---|---|
| DHSY470 | 4000-7000 | 0.05 | 0.1-0.3 | 15 | 1880 | 1800*1200*1800 |
| DHSY550 | 6000-15000 | 0.05 | 0.1-0.3 | 22 | 2200 | 1850*1550*2050 |
