Stainless Steel Biodiesel Disc Oil Separator with 6600rpm Speed and Long Service Life

Stainless Steel Biodiesel Disc Oil Separator with 6600rpm Speed and Long Service Life
Stainless Steel Biodiesel Disc Oil Separator with 6600rpm Speed and Long Service Life Stainless Steel Biodiesel Disc Oil Separator with 6600rpm Speed and Long Service Life Stainless Steel Biodiesel Disc Oil Separator with 6600rpm Speed and Long Service Life Stainless Steel Biodiesel Disc Oil Separator with 6600rpm Speed and Long Service Life

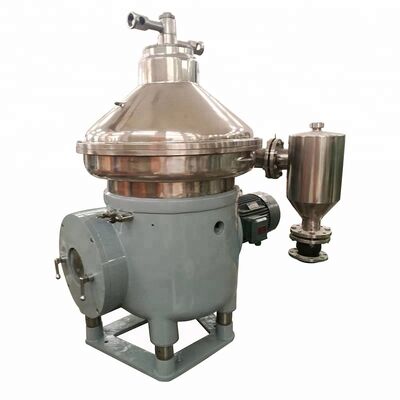

Large Image :  Stainless Steel Biodiesel Disc Oil Separator with 6600rpm Speed and Long Service Life

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: CN¥224,642.83
Contact Now

Stainless Steel Biodiesel Disc Oil Separator with 6600rpm Speed and Long Service Life

Description
Voltage: 220 Power: 15000 W
Dimensions: 1800*1200*1800 Mm Capacity: 2500-7000 L/h
Weight: 1880 KG Setting Speed: 6600 Rpm
Material: Stainless Steel Structure: Vertical Compact
Inlet Pressure: 0.05 Mpa Outlet Pressure: 0.1-0.3 Mpa
Motor Power: 15 Kw Core Components: PLC, Bearing, Motor
Treatment Capacity: 4000-7000 L/H Outline Dimension: 1800*1200*1800 Mm
Noise Level: Low
Highlight:

Stainless Steel Disc Oil Separator

,

6600rpm Continuous Centrifuge Separator

,

Long Service Life Biodiesel Separator

Biodiesel and Glycerin High Speed Continuous Centrifuge Separator
Product Overview
Globally recognized technology transforms waste oil and hogwash oil into biodiesel, addressing food safety concerns while generating significant economic benefits. Juneng collaborates with research institutes and universities to apply centrifugal separation technology in waste oil purification, with successful implementation in over thirty domestic and international projects.
Key Applications
  • Separation of methyl ester, glycerin, catalyst, de-soap, and methanol
  • Methyl washing processes
  • Fatty acids extraction
  • Glycerol desalination
Technical Specifications
Model Treatment Capacity (L/H) Inlet Pressure (MPa) Outlet Pressure (MPa) Motor Power (kW) Weight (kg) Outline Dimension (mm)
DBSY204 700-2000 0.05 0.1-0.25 4 408 810×850×1350
DHSY360 1000-2500 0.05 0.1-0.25 7.5 1280 1500×1150×1500
DHSY470 4000-7000 0.05 0.1-0.3 15 1880 1800×1200×1800
DHSY550 6000-15000 0.05 0.1-0.3 22 2200 1850×1550×2050
DHSY700 8000-25000 0.05 0.1-0.3 37 3300 2050×1700×2300

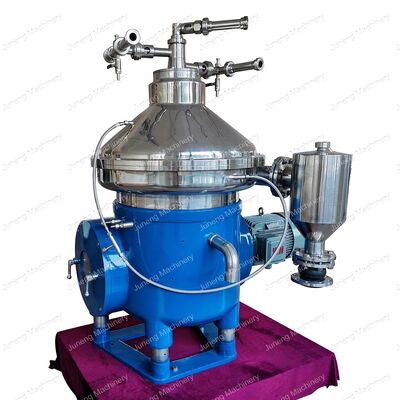

Product Images
Stainless Steel Biodiesel Disc Oil Separator with 6600rpm Speed and Long Service Life 0 Stainless Steel Biodiesel Disc Oil Separator with 6600rpm Speed and Long Service Life 1 Stainless Steel Biodiesel Disc Oil Separator with 6600rpm Speed and Long Service Life 2 Stainless Steel Biodiesel Disc Oil Separator with 6600rpm Speed and Long Service Life 3 Stainless Steel Biodiesel Disc Oil Separator with 6600rpm Speed and Long Service Life 4
Performance Features
  • High-speed operation with stable performance
  • Fully enclosed inlet and outlet system
  • Low noise operation with excellent separation efficiency and high oil recovery rate
  • Fully automatic control system for easy operation
  • Low operational, maintenance, and service costs
Certifications
Stainless Steel Biodiesel Disc Oil Separator with 6600rpm Speed and Long Service Life 5
Detailed Components
Stainless Steel Biodiesel Disc Oil Separator with 6600rpm Speed and Long Service Life 6
Machine Parts Specifications
Disc of Drum: Juneng brand, manufactured in China with domestic high-performance engines for strong driving force.
Shaft: Juneng brand, manufactured in China with domestic high-performance engines for strong driving force.
Stainless Steel Biodiesel Disc Oil Separator with 6600rpm Speed and Long Service Life 7
Customer Support Services
Stainless Steel Biodiesel Disc Oil Separator with 6600rpm Speed and Long Service Life 8 Stainless Steel Biodiesel Disc Oil Separator with 6600rpm Speed and Long Service Life 9
Pre-Sales Services
  • Comprehensive inquiry and consulting support
  • Sample testing assistance
  • Factory viewing opportunities
After-Sales Services
  • Complete machine installation training
  • Comprehensive operational training
  • Overseas engineering support services
Packaging & Delivery
Stainless Steel Biodiesel Disc Oil Separator with 6600rpm Speed and Long Service Life 10
Packaging Specification Details
Size 123 (L) × 456 (W) × 789 (D)
Weight 1.2 Tons
Packaging Details Standard wooden box packaging. European exports include fumigated wooden boxes. Alternative packaging options available for tight containers or special customer requirements.
