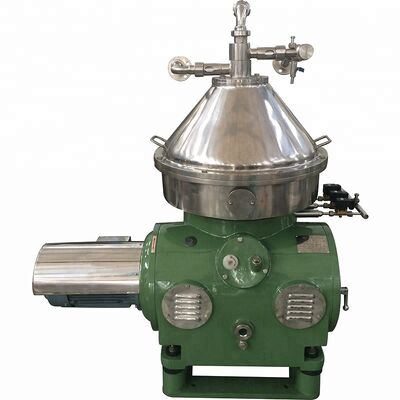

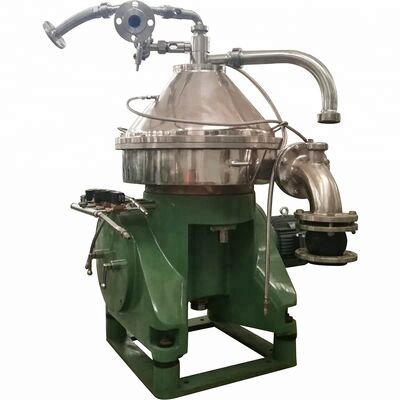

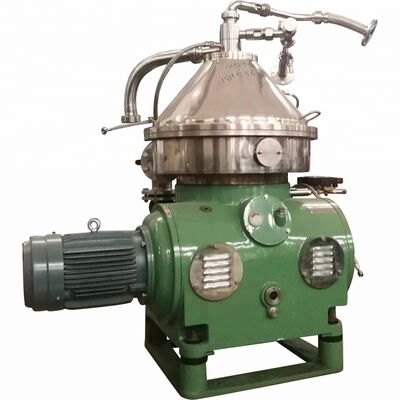

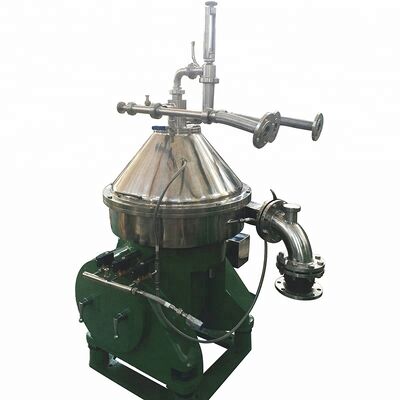

Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity

Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity
Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity

Large Image :  Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity

Product Details:
Place of Origin: Jiangsu, China
Brand Name: JUNENG
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: CN¥175,070-182,072.80

Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity

Description
Product Type: Disc Stack Core Components: PLC, Bearing, Motor
Voltage: 110V, 380V, 415V, 460V Power: 7500 W
Dimension: 1500*1150*1500 Mm Capacity: 1200-2500 L/h
Weight: 1280 KG Setting Speed: 7020 Rpm
Material: SS304 Drum Material: 2205
Function: Liquid Liquid Solid Centrifuge Operation: Continuous
Bearing: SKF Bearing Inlet Pressure: 0.05 Mpa
Outlet Pressure: 0.1-0.3 Mpa
Highlight:

7020 rpm Biodiesel Oil Separator

,

SS304 Material High Speed Separator Centrifuge

,

1200-2500 l/h Capacity Disc Oil Separator

Biodiesel Oil Solid-liquid Separator High Speed Separator Centrifuge
Biodiesel Industrial Oil Separator Glycerin Separator

Biodiesel is a clean, renewable energy source and an excellent substitute for petroleum diesel. Produced through ester exchange processes using raw materials such as plant oil crops, wild plants, engineering microalgae, animal fats, and food waste oil, biodiesel represents a sustainable "green energy" solution.

The development of biodiesel holds significant strategic importance for sustainable economic growth, promoting alternative energy sources, reducing environmental pressure, and controlling urban air pollution.

Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity 0 Biodiesel Oil Separator High Speed Separator Centrifuge with 7020 rpm, SS304 Material, and 1200-2500 l/h Capacity 1
Product Competitive Advantages
  • High speed operation with stable performance
  • Fully closed inlet and outlet system
  • Low noise levels during operation
  • Excellent separation efficiency
  • High oil recovery rate
  • Fully automatic control system
  • Easy to operate and maintain
Product Specifications
Model Treatment Capacity (L/H) Inlet Pressure (Mpa) Outlet Pressure (Mpa) Motor Power (Kw) Weight (Kg) Outline Dimension (mm)
DHSY470 4000-7000 0.05 0.1-0.3 15 1880 1800×1200×1800
DHSY550 6000-15000 0.05 0.1-0.3 22 2200 1850×1550×2050
Product Applications

Successful applications include:

  • Separation of methyl ester, glycerin, catalyst, de-soap, and methanol
  • Methyl washing processes
  • Extraction of fatty acids
  • Glycerol desalination
Company Introduction

Juneng Group is a large-scale manufacturer of industrial products in China with subsidiaries including Juneng Machinery (China) Co., Ltd and Jiangsu Juneng Machinery Co., Ltd. The group specializes in research, development, and manufacturing of various industrial filters, separators, and pumps.

As an industry leader serving the fats, chemical, pharmaceutical, beverage, and petrochemical industries, Juneng is recognized as one of the world's prominent producers and suppliers.

The company operates three production bases totaling 280,000 square meters in Nanjing City and Yixing City of Jiangsu province. With a permanent workforce of over 1,300 people, the production facilities are equipped with more than 1,500 units of advanced production equipment and test instrumentation.
