Product Details:
|
| Name: | Biodiesel Separator | Treatment Capacity (L/H): | 4000-7000 |
|---|---|---|---|
| Voltage: | 220V/380V/400V/440V/460V | Inlet Pressure (Mpa): | 0.05 |
| Outlet Pressure (Mpa): | 0.1-0.3 | Application: | Biodiesel Centrifuge |
| High Light: | conical disc centrifuge,disc bowl centrifuge |
||

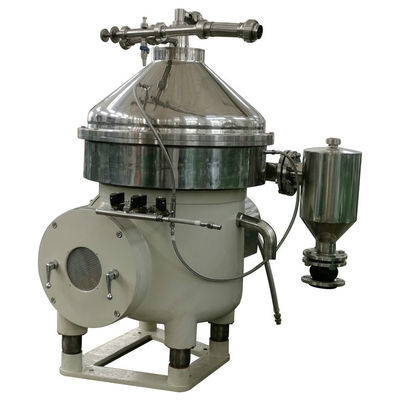

Portable Biodiesel Separator , High Power Biodiesel Centrifuge Machine
Biodiesel Separator applications:
1, Separation of methyl ester, glycerin, catalyst, de-soap, methanol
2, Methyl washing
3, Extraction of fatty acids
4, Glycerol desalination
Biodiesel Separator advantage:
High speed, stable operation,
good separation, high oil rate,
fully automatic control ,easy to operate.
Low cost of operation, maintenance and serving
Biodiesel Separator Paraneters
| Model | Treatment capacity (L/H) |
Inlet pressure (Mpa) |
Outlet pressure (Mpa) |
Motor power (Kw) |
Weight(Kg) | Outline dimension (mm) |
| DBSY204 | 700-2000 | 0.05 | 0.1-0.25 | 4 | 408 | 810*850*1350 |
| DHSY360 | 1000-2500 | 0.05 | 0.1-0.25 | 7.5 | 1280 | 1500*1150*1500 |
| DHSY470 | 4000-7000 | 0.05 | 0.1-0.3 | 15 | 1880 | 1800*1200*1800 |
Our service
1. Professional Engineer wil recommend you the most suitable model according to your requirement.
2. Supply reference process flow chart .
3. Supply on-site installation and operation test
4. Integration for control system and process
5. Customized size and structure
6. 12Months guarantee period from machine arriving date.
7. Sufficient spare parts in stock are available .
8. Technicians are availabled for overseas service.
