Product Details:
|
| Product Alias: | Nozzle Separator | Treatment Capacity (L/H): | 7500-30000 |
|---|---|---|---|
| Voltage: | 220V/380V/400V/440V/460V | Inlet Pressure (Mpa): | 0.2 |
| Outlet Pressure (Mpa): | ≤0.2 | Motor Power (Kw): | 30 |
| High Light: | conical disc centrifuge,disc bowl centrifuge |
||

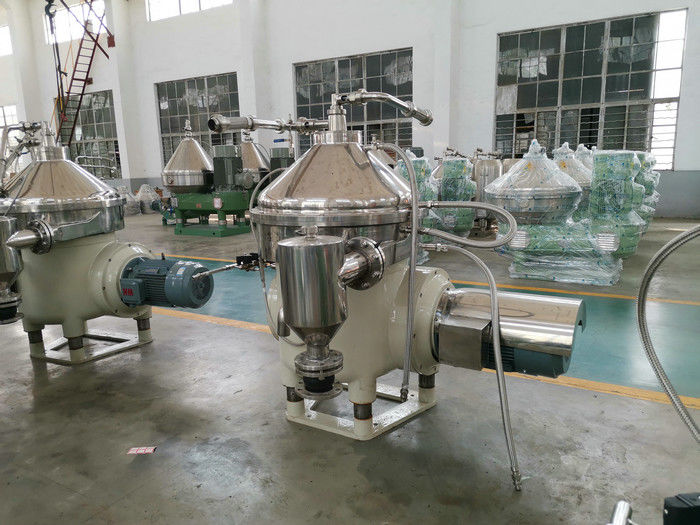

Custom Made Nozzle Separator , Two Phase Separation Nozzle Bowl Centrifuge
Nozzle Separator Description:
nozzle separator is a kind of continuous discharge separator. It features of high speed, high precision and high efficiency.
Outside of the bowl wall, several nozzles are installed. Under the centrifugal force formed by high rotation speed of bowl, insoluble solids which deposit in the sediment chamber will be discharged out continuously.
Nozzle Separator Specifications:
| Model | Treatment capacity (L/H) |
Inlet pressure (Mpa) |
Outlet pressure (Mpa) |
Motor power (Kw) |
Weight(Kg) | Outline dimension (mm) |
| DPFX430 | 5000-20000 | 0.2 | ≤0.2 | 15 | 1250 | 1519*862*1484 |
| DPFX470 | 7500-30000 | 0.2 | ≤0.2 | 30 | 1720 | 1780*1154*1710 |
| DPFX550 | 25000-50000 | 0.2 | ≤0.2 | 45 | 2500 | 1860*1300*1860 |
| DPFX720 | 45000-80000 | 0.2 | ≤0.2 | 75 | 3000 | 2130*1595*2242 |
Our service
1. Professional Engineer wil recommend you the most suitable model according to your requirement.
2. Supply reference process flow chart .
3. Supply on-site installation and operation test
4. Integration for control system and process
5. Customized size and structure
6. 12Months guarantee period from machine arriving date.
7. Sufficient spare parts in stock are available .
