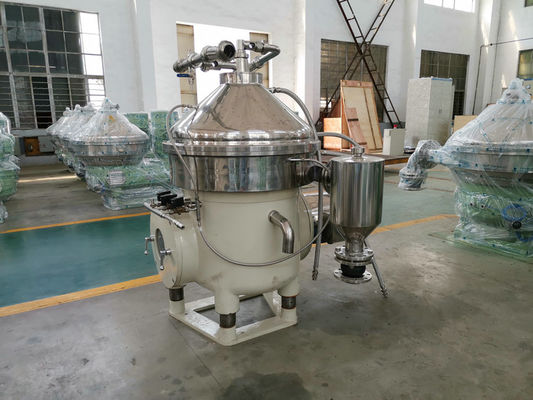

Stable Outlet Pressure Disc Oil Separator For Vegetable Extraction

Stable Outlet Pressure Disc Oil Separator For Vegetable Extraction
Stable Outlet Pressure Disc Oil Separator For Vegetable Extraction

Large Image :  Stable Outlet Pressure Disc Oil Separator For Vegetable Extraction

Product Details:
Place of Origin: Jiangsu China
Brand Name: Juneng
Certification: ISO CE
Model Number: DHZ470
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Packed by international standard fumigation wooden case
Delivery Time: 30 days after order
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per year

Stable Outlet Pressure Disc Oil Separator For Vegetable Extraction

Product Alias: Disc Oil Separator Feature: Stable Outlet Pressure
Voltage: 220V/380V/400V/440V/460V Inlet Pressure (Mpa): 0.05
Outlet Pressure (Mpa): 0.1-0.25 Application: Vegetable Extraction
High Light:

conical disc centrifuge


disc bowl centrifuge

Stable Outlet Pressure Disc Oil Separator For Vegetable Extraction


Disc Oil Separator description:


Disc Oil Separator is special equipment for oil and fat refining, it has the traits as high rotating speed, operation stability, completely sealed up of the inlet and outlet system, lower noise and fine separating affection.


Disc Oil SeparatorApplication:

Vegetable oil: Colza oil, cottonseed oil, Corn oil, palm oil, soybean oil, Peanut oil, Rice oil, Sesame oil, Safflower oil and son on.

Animal oil: fish oil and other various animal fat clarification.


Disc Oil Separator Parameters


Model Treatment capacity (L/H) Inlet Pressure (Mpa) Outlet pressure (Mpa) Motor power (Kw) Weight (Kg) Outline dimension (mm)
DHZ360 1200-2500 0.05 0.1-0.25 7.5 1280 1500*1150*1500
DHZ470 2500-7000 0.05 0.1-0.25 15 1880 1800*1200*1800
DHZ550A 5000-10000 0.05 0.1-0.25 18.5 2200 1850*1550*2050
DHZ550E 6000-15000 0.05 0.1-0.25 22 2200 1850*1550*2050
DHZ700 15000-30000 0.1 0.2 30 3300 2100*1650*2300
DRZ360 1200-2500 0.05 0.1-0.25 5.5 750 1250*1050*1500
DRZ400A 2000-6000 0.05 0.1-0.3 7.5 1150 1300*900*1450
DRZ400E 4000-7500 0.05 0.1-0.3 7.5 1300 1300*900*1500
DRZ550 6000-18000 0.05 0.1-0.3 22 2200 1620*1300*2200


Vegetable oil is one of the most important foods of human beings. The quality of vegetable oil mainly depends on the refining method and quality of base oil. Juneng separator has provided great varieties of solutions with the aim to enhance the quality of vegetable oil. The daily output varies from 10 tons (applicable to special oil ) to over 1200 tons (applicable to scale production)


Main application fields


Rapeseed, sunflower seed, cottonseed



Corn germ

Rice bran oil

Coconut oil, linseed oil

Special oil, such as sesame oil, orange peel oil, safflower oil etc.

Special application fields

Lecithin deoiling

Frying oil refining

Core capacity






Squeezed oil clarification

Compared with general vegetable oil, animal oil has its irreplaceable unique flavor that can boost people’s appetite.

Animal oil contains certain nutrition and provides very high energy.

During the deep processing in the breeding industry, the use of separators can help oil recovery in the processing of subsidiary materials, which not only enhances profits, but also reduces pollution emission.

During the production of meat products, the waste water produced will contain higher portions of oil and other solid impurities. To minimize the treating costs and make use of useful things in the waste water, Juneng separator has provided a new kind of processing technology, which reduces production costs while changing the waste into treasure.
