Product Details:
|
| Product Alias: | Disc Oil Separator | Treatment Capacity (L/H): | 2500-7000 |
|---|---|---|---|
| Voltage: | 220V/380V/400V/440V/460V | Inlet Pressure (Mpa): | 0.05 |
| Outlet Pressure (Mpa): | 0.1-0.25 | Control: | PLC Automatic Control |
| High Light: | conical disc centrifuge,disc bowl centrifuge |
||

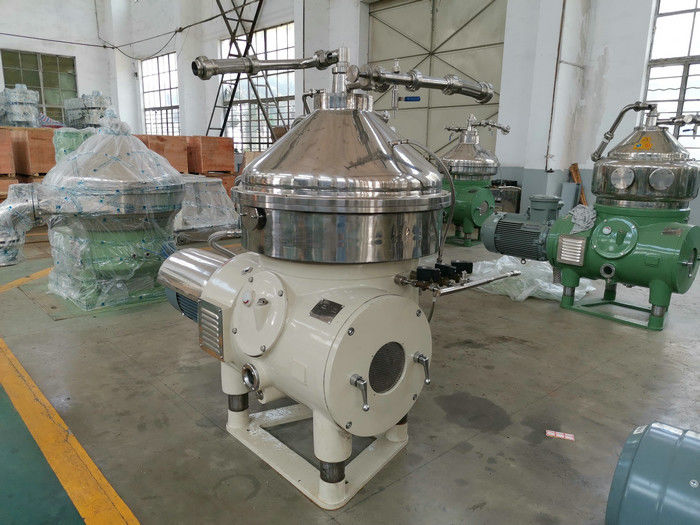

PLC Automatic Control Disc Oil Separator Fine Separating Affection
Disc Oil Separator Introduction
Vegetable oil is one of the most important foods of human beings. The quality of vegetable oil mainly depends on the refining method and quality of base oil. Juneng separator has provided great varieties of solutions with the aim to enhance the quality of vegetable oil. The daily output varies from 10 tons (applicable to special oil ) to over 1200 tons (applicable to scale production)
Special application fields
Lecithin deoiling
Frying oil refining
Core capacity
Degumming
Deacidification
Dewaxing
Fractionation
Washing
Squeezed oil clarification
Compared with general vegetable oil, animal oil has its irreplaceable unique flavor that can boost people’s appetite.
Animal oil contains certain nutrition and provides very high energy.
During the deep processing in the breeding industry, the use of separators can help oil recovery in the processing of subsidiary materials, which not only enhances profits, but also reduces pollution emission.
During the production of meat products, the waste water produced will contain higher portions of oil and other solid impurities. To minimize the treating costs and make use of useful things in the waste water, Juneng separator has provided a new kind of processing technology, which reduces production costs while changing the waste into treasure.
Higher production capacity
Continuous feeding
High separation factor
Automatic residue discharging
Lower maintenance costs
Concise bowl design without frequent washing
Hydraulic coupling driving with longer service life
No need of manual monitoring
PLC automatic control
| Model | Treatment capacity (L/H) | Inlet Pressure (Mpa) | Outlet pressure (Mpa) | Motor power (Kw) | Weight (Kg) | Outline dimension (mm) |
| DHZ360 | 1200-2500 | 0.05 | 0.1-0.25 | 7.5 | 1280 | 1500*1150*1500 |
| DHZ470 | 2500-7000 | 0.05 | 0.1-0.25 | 15 | 1880 | 1800*1200*1800 |
| DHZ550A | 5000-10000 | 0.05 | 0.1-0.25 | 18.5 | 2200 | 1850*1550*2050 |
| DHZ550E | 6000-15000 | 0.05 | 0.1-0.25 | 22 | 2200 | 1850*1550*2050 |
| DHZ700 | 15000-30000 | 0.1 | 0.2 | 30 | 3300 | 2100*1650*2300 |
| DRZ360 | 1200-2500 | 0.05 | 0.1-0.25 | 5.5 | 750 | 1250*1050*1500 |
| DRZ400A | 2000-6000 | 0.05 | 0.1-0.3 | 7.5 | 1150 | 1300*900*1450 |
| DRZ400E | 4000-7500 | 0.05 | 0.1-0.3 | 7.5 | 1300 | 1300*900*1500 |
| DRZ550 | 6000-18000 | 0.05 | 0.1-0.3 | 22 | 2200 | 1620*1300*2200 |
Our service
1. Professional Engineer wil recommend you the most suitable model according to your requirement.
2. Supply reference process flow chart .
3. Supply on-site installation and operation test
