3 Phase Fish Oil Water Separator , Vegetable Oil Separator PLC Automatic Control

3 Phase Fish Oil Water Separator , Vegetable Oil Separator PLC Automatic Control
3 Phase Fish Oil Water Separator , Vegetable Oil Separator PLC Automatic Control
3 Phase Fish Oil Water Separator , Vegetable Oil Separator PLC Automatic Control 3 Phase Fish Oil Water Separator , Vegetable Oil Separator PLC Automatic Control 3 Phase Fish Oil Water Separator , Vegetable Oil Separator PLC Automatic Control 3 Phase Fish Oil Water Separator , Vegetable Oil Separator PLC Automatic Control 3 Phase Fish Oil Water Separator , Vegetable Oil Separator PLC Automatic Control

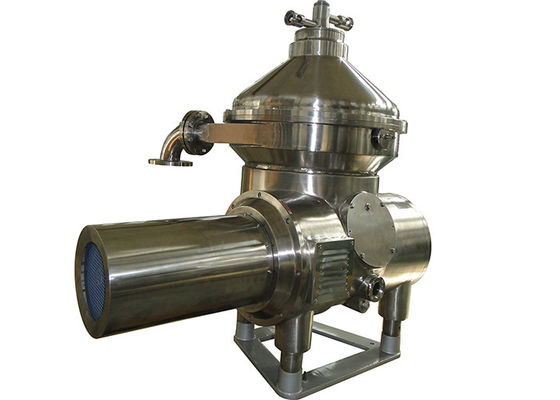

Large Image :  3 Phase Fish Oil Water Separator , Vegetable Oil Separator PLC Automatic Control

Product Details:
Place of Origin: Jiangsu China
Brand Name: Juneng
Certification: ISO CE
Model Number: DHYY470
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 22089-34328 / Set
Packaging Details: Packed by international standard fumigation wooden case
Delivery Time: 30 days after order
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per year

3 Phase Fish Oil Water Separator , Vegetable Oil Separator PLC Automatic Control

Description
Product Alias: Animal Oil Separator Type: Piston Separator
Function: Purifying Operation Method: Automatic Controlled By PLC
Warranty Date: 12 Months After Accept Training: Free Traing Srevice
High Light:

conical disc centrifuge

,

disc bowl centrifuge



China Supplier Three Phase Fish Oil Water Separator Disc Oil Separator





Product Description


The three-phase separation disc centrifuge is widely used to extract meat oil from animals, such as fish meal factories, animal fat factories, etc. The output of different models varies, ranging from 10t/d to 600t/d.



The material in contact with the parts of the three-phase separation disc centrifuge is stainless steel that meets food grade requirements. It has the following advantages: fast speed, stable operation, compact structure, small footprint, fully sealed inlet and outlet, low noise, good separation, etc.

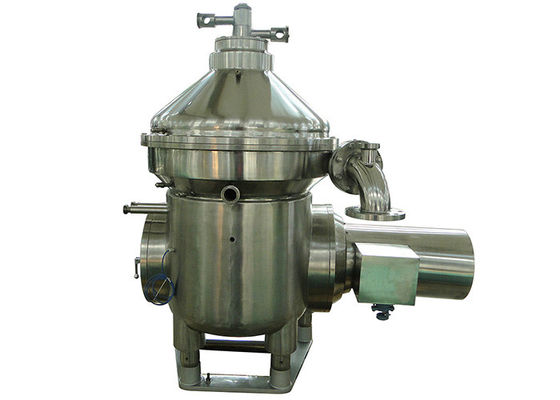

 3 Phase Fish Oil Water Separator , Vegetable Oil Separator PLC Automatic Control 0
Product Principle



The separated material will be input into the heart of the separator, i.e. the drum. By the strong centrifugal force field, the feed passes the separation partition consists of disk string, by taking the neutral holes in disk as the separating surface,



the liquid in higher specific gravity (heavy phase) will move outward the neutral holes along disk wall, and the heavy residue will accumulate at the residue-settling area, and the residue will flow toward the big centripetal pump.



The liquid in lower specific gravity (light phase) will move inward and upward along disk wall, then assemble at the small centripetal pump. The heavy and light phase will be output separately by small and big centripetal pump.

Product model list



Model Flowrate Inlet pressure Outlet pressure Power Weight
DHYY470 2500-7000 LPH 0.05 MPA 0.1-0.25 MPA 15 KW 1880 KG
DHYY550 5000-15000 LPH 0.05 MPA 0.1-0.25 MPA 18.5 KW 2200 KG
DHYY700 15000-30000 LPH 0.1 MPA 0.2 MPA 30 KW 3300KG



Precaution concerning safe operation of separator



1. If the separator has any abnormal vibration and sound at operation, you shall cut off the power supply immediately and shutdown the machine. After the drum stops completely, dismount, clean and check the parts & components to find out the cause, and can re-assemble and turn on it only after remedying the fault.



2. This separator can’t used to separate material whose causticity larger than our designed one.



3. If there is any problem concerning quality of separator’s main parts & components, you must notify us timely, but shall not replace or repair them by yourself, for fear that it may damage the machine and influence safety production. Please use the spare parts that we provide.



4. After functioning for 2 years or when vibration intensity exceed 4.5mm/s (can not reduce), do NDT to drum parts and axis, do dynamic balcance to drum.Then do crack detection annually.



Product Advantage


This special design separator has the full automatic control box which used for safety protection and equips and also been equipped with advanced automatic vibration tester which can view vibrating value at any time. We can make separating and discharging to the best affection from regulating separation parameter directly at the screen.


1. Continuous feeding



2. High separation factor



3. Automatic residue discharging



4. Concise bowl design without frequent washing



5. Hydraulic coupling driving with longer service



6. PLC system automatic control


3 Phase Fish Oil Water Separator , Vegetable Oil Separator PLC Automatic Control 1




Application


1. Purifiation of animal fat
2. Purification of fish oil
3. Kitchen waste oil
4. Separation of fish pressed liquid
5. Waste oil
6. Hogwash oil



Our team


3 Phase Fish Oil Water Separator , Vegetable Oil Separator PLC Automatic Control 2




Our service


1. Professional Engineer wil recommend you the most suitable model according to your requirement.


2. Supply reference process flow chart .


3. Supply on-site installation and operation test


4. Integration for control system and process


5. Customized size and structure


6. 12Months guarantee period from machine arriving date.


7. Sufficient spare parts in stock are available .


8. Technicians are availabled for overseas service.


9. 24 hours technical consultation .


10. The customer could get trained by our experienced tecnician.


11. Routine tracing will be done timely.


12. Guide you do the normal maintenance.


13. Suggestions and any comments &reflection from customer would be treated in priority.


14. Markting team will visiting if you need.



FAQ


1) Q: How can we visit your factory?


A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.
If you come from domestic city, air or train directly to Wuxi station. We will pick you up at railway station.

2) Q: What payment methods your company accept?


A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .

3) Q: How long is the warranty time for your products?


A: Our officially promised warranty time is 12 months after commissioning .

4) Q: What's the shipment terms and delivery time of your company?


A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.

5) Q:Do you give any Discount?


A: I will surely try my best to help you get those by the best price and good service at the same time
