Product Details:
|
| Other Name: | Disc Bowl Centrifuge | Operation: | Continuous Working |
|---|---|---|---|
| Voltage: | According To Customer's Requirement | Material Of Wet Parts: | Food Grade Stainless Steel |
| Function: | Liquid-liquid-solid Separation | Installation: | Engineer Availabe To Service On Site |
| High Light: | conical disc centrifuge,disc bowl centrifuge |
||

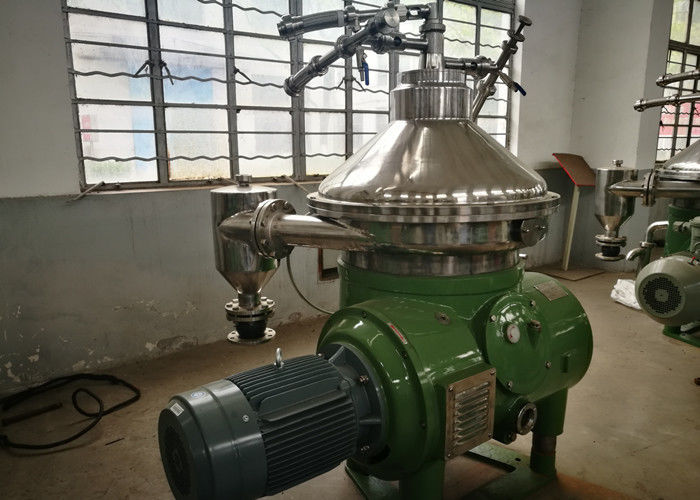

Easy Operating Food Grade Stainless Steel Disc Oil Separator Liquid-liquid-solid Separation
Product model list
| Model | Flowrate | Inlet pressure | Outlet pressure | Power | Weight |
| DHYY360 | 1200-2500 LPH | 0.05 MPA | 0.1-0.25 MPA | 7.5 KW | 1280 KG |
| DHYY470 | 2500-7000 LPH | 0.05 MPA | 0.1-0.25 MPA | 15 KW | 1880 KG |
| DHYY550 | 5000-15000 LPH | 0.05 MPA | 0.1-0.25 MPA | 18.5 KW | 2200 KG |
| DHYY700 | 15000-30000 LPH | 0.1 MPA | 0.2 MPA | 30 KW | 3300KG |
Product Principle
The separated material is fed into the heart part of the machine, which is the inner part of the drum. Under strong centrifugal force, the material passes through a set of separation intervals of disc bundles, with the neutral hole of the disc as the interface. The liquid with a higher specific gravity moves along the disc wall towards the outside of the neutral hole, where heavy slag accumulates in the sediment area, and the heavy phase flows towards the upward centripetal pump.
The liquid with a smaller specific gravity moves along the disc wall towards the neutral hole and converges to the lower centripetal pump. The light and heavy phases are output by the lower centripetal pump and the upper centripetal pump respectively. Heavy slag is regularly discharged. Implement continuous production.
Product Advantage
This special design separator has the full automatic control box which used for safety protection and equips and also been equipped with advanced automatic vibration tester which can view vibrating value at any time.
We can make separating and discharging to the best affection from regulating separation parameter directly at the screen.
Application
Production workshop
Our Company employs a team of well-trained professional, adopts advance ERP production management model in-cooperation with state-of-the-art apparatus and processes for manufacturing all kinds of filters, separators, centrifuges amd pumps.
Corporate Reputation
Our service
1. Supply reference process flow chart .
2. Supply on-site installation and operation test
3. Customized size and structure
4. Sufficient spare parts in stock are available .
5. Technicians are availabled for overseas service.
6. The customer could get trained by our experienced tecnician.
FAQ
1) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.
If you come from domestic city, air or train directly to Wuxi station. We will pick you up at railway station.
2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 30 years experience , strict operation policy is performed,advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing,transmission& electrical parts are of international famous brand.
Series of test and inspection are done in the whole producing state.
3) Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight.
4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning.
5) Q:Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time
