Product Details:
|
| Other Name: | Fish Oil Separator | Operation: | Continuous Working Without Stop Feeding |
|---|---|---|---|
| Voltage: | 220V/380V/400V/440V/460V | Material: | Food Grade Stainless Steel |
| Function: | Disc Separator Centrifuge | Installation: | Engineer Availabe To Service On Site |
| Highlight: | conical disc centrifuge,disc bowl centrifuge |
||

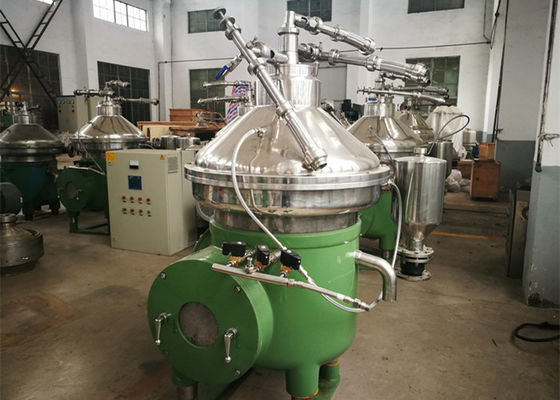

Continuous Operation Food Grade Stainless Steel Disc Oil Separator Separation of Methyl ester
Product Principle
The disc separator is specially used for the two phase and three phase separation.
The two phase separation is to separate the suspended solid from liquid or separate two liquids which have the different specific gravity and are immiscible.
The three phase separation is to separate the two immiscible liquid phases and a phase of solid at the same time .
Product model list
| Model | Flowrate | Inlet pressure | Outlet pressure | Power | Weight |
| DHYY360 | 1200-2500 LPH | 0.05 MPA | 0.1-0.25 MPA | 7.5 KW | 1280 KG |
| DHYY470 | 2500-7000 LPH | 0.05 MPA | 0.1-0.25 MPA | 15 KW | 1880 KG |
| DHYY550 | 5000-15000 LPH | 0.05 MPA | 0.1-0.25 MPA | 18.5 KW | 2200 KG |
| DHYY700 | 15000-30000 LPH | 0.1 MPA | 0.2 MPA | 30 KW | 3300KG |
Product Advantage
This special design separator has the full automatic control box which used for safety protection and equips and also been equipped with advanced automatic vibration tester which can view vibrating value at any time.
We can make separating and discharging to the best affection from regulating separation parameter directly at the screen.
Production workshop
Our Company employs a team of well-trained professional, adopts advance ERP production management model in-cooperation with state-of-the-art apparatus and processes for manufacturing all kinds of filters, separators, centrifuges amd pumps.
Corporate Reputation
Our service
1. Professional Engineer wil recommend you the most suitable model according to your requirement.
2. Supply reference process flow chart .
3. Supply on-site installation and operation test
4. Integration for control system and process
5. Customized size and structure
6. 12Months guarantee period from machine arriving date.
7. Sufficient spare parts in stock are available .
8. Technicians are availabled for overseas service.
9. 24 hours technical consultation .
10. The customer could get trained by our experienced tecnician.
FAQ
1) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.
If you come from domestic city, air or train directly to Wuxi station. We will pick you up at railway station.
2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 30 years experience , strict operation policy is performed,advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing,transmission& electrical parts are of international famous brand.
Series of test and inspection are done in the whole producing state.
3)Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .
4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .
5) Q: What's the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.
6) Q:Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time
