Product Details:
|
| Product Alias: | Starch Separator | Material Of Seal Ring: | FKM |
|---|---|---|---|
| Bearing Brand: | FKM | Operate: | Continuously |
| Control: | Inner Circulation System | Drive: | Top-suspension Driving |
| High Light: | centrifugal solids separator,continuous centrifugal separator |
||

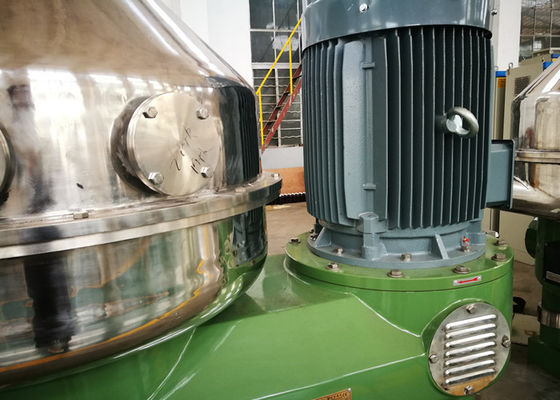

Starch Industrial Centrifugal Filter Separator Continous Production Stable Running
Specification
|
Model |
Treatment capacity (L/H) |
Speed of drum |
Motor power (Kw) |
Weight(Kg) |
Outline dimension (mm) |
| DPF800 | 22-115 | 2750-3300 | 132/110 | 7800 | 2800*1500*2200 |
|
DPF935 |
45-225 |
2250-3050 |
250-220 |
11000 |
3200*1800*3100 |
Advantage
1. Big diametre of frum, large area of disc, strong capability of separation, excellent effect of production.
2. Adopting top-suspension driving, which makes the separator with high rotation stability, and largely improves the using life of bearings and main shaft.
3. Adopting automatic control of lubricating oil circuit, which protects and prolongs the using life of driving system.
4. Adopting big nozzles, which has big feed capability, reduces the chances of block, assuring the continous production.
5. Fitted with hydraulic system for lifting drum, which makes more easily to check the drum and replace nozzles.
Description
In the starch separation process, the separator rotates in high speed the creates the centrifugal force, so the seoaration efficiency id improved.At the same time maximized the production efficiency.
We devote ourselves to the most proffessional and efficient in starch processing industry, it collects all the advantages of various separator such as small vibration, large capability, stable running and so on.
It's mainly used in pre-concerntration starch, separation of starch and gluten, concerntration of gluten(protein), clarify of process water in the after step and so on.
Troubleshooting while operating the separator
| Phenomena | Cause | Remedy |
| The drum fails to reach rated speed or starting time is too long |
1.There is mechanical friction inside the machine 2. Incorrect frequency and start time settings of the frequency converter 3. Belt too loose 4. Belt damage |
1. Check the installation of the machine 2. Reset 3. Adjusting belt tension 4.Replacing the belt |
Company detail
Juneng Group is a large scale manufacturer of industrial products in China. This group principally engaged with the in-house research & development as well as manufacturing of various industrial filters, separators , centrifuges and pumps.
Why Choose Juneng brand
1. International High quality Certification production chain .
2. Manufacturer, more reasonable price .
3. Solid technical support and after-sales service
4. Exports to more than 20 countries and regions, good customers feedback.
After service :
1. Months guarantee period from machine arriving date.
2. Sufficient spare parts in stock are available .
3. Technicians are availabled for overseas service.
4. 24 hours technical consultation .
5. The customer could get trained by our experienced tecnician.
FAQ:
1 ) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.
If you come from domestic city, air or train directly to Wuxi station. We will pick you up at railway station.
2) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .
3) Q: What ' s the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.
