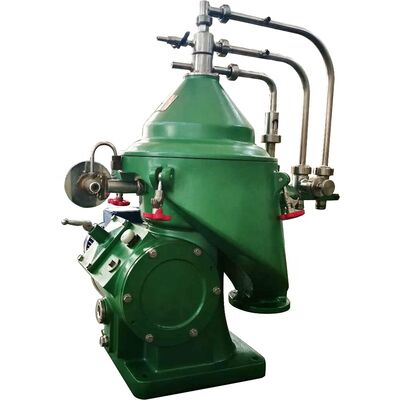

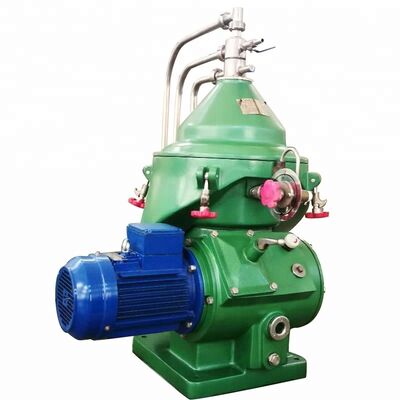

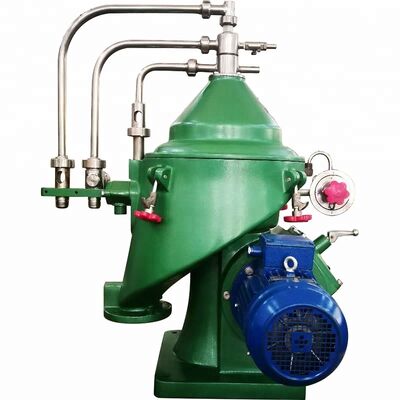

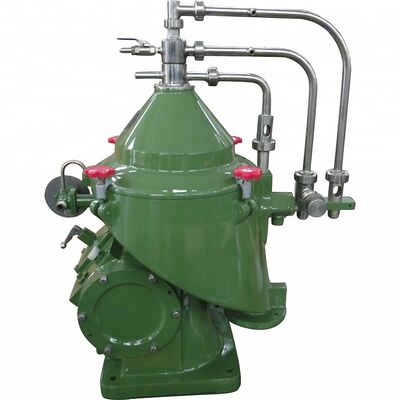

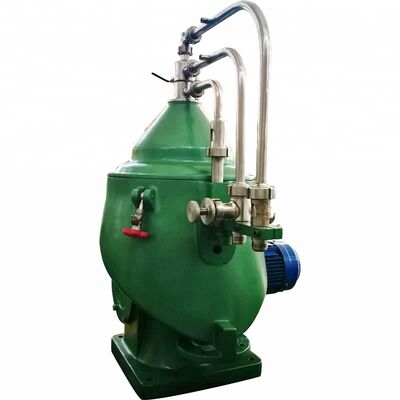

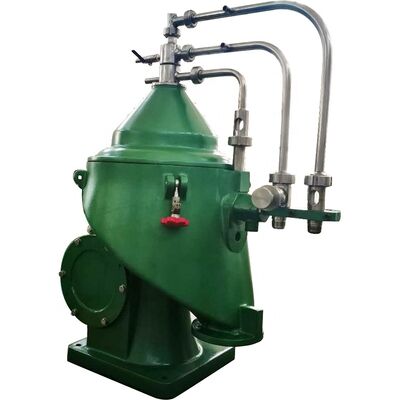

Marine Diesel Oil Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure for Solid-Liquid Separation

Marine Diesel Oil Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure for Solid-Liquid Separation
Marine Diesel Oil Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure for Solid-Liquid Separation Marine Diesel Oil Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure for Solid-Liquid Separation Marine Diesel Oil Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure for Solid-Liquid Separation Marine Diesel Oil Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure for Solid-Liquid Separation Marine Diesel Oil Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure for Solid-Liquid Separation Marine Diesel Oil Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure for Solid-Liquid Separation

Large Image :  Marine Diesel Oil Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure for Solid-Liquid Separation

Product Details:
Place of Origin: China
Brand Name: Juneng
Certification: ISO, CE,BV
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: CN¥76,969.91-79,769.07
Contact Now

Marine Diesel Oil Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure for Solid-Liquid Separation

Description
Voltage: 220V/380V/460V Power: 4 Kw
Dimensions: 720*800*1100 Mm Capacity: 501-1000l/h, 2000 L/H
Weight: 500 KG Setting Speed: 4000 RPM
ID Of Drum: 265mm Drum Speed: Appro 8086 R/min
Inlet Pressure: 0.05 Mpa Outlet Pressure: ≥0.2 Mpa
Rated Capacity: 1500-3000 L/h Core Components: Motor
Structure: Stable Structure Discharge: Automatic Discharge
Material: Stainless Steel
Highlight:

2000 L/H Capacity Marine Diesel Oil Separator

,

Automatic Discharge Industrial Oil Separator

,

Stable Structure Solid-Liquid Separation Separator

Solid-liquid Separation Marine Diesel Oil (MDO) Separator
Product Application

Our marine diesel oil separator efficiently separates heavy diesel oil, allowing it to replace light diesel oil usage and significantly reduce production costs.

This marine separator is specifically designed to remove moisture and mechanical impurities from fuel (light diesel oil, heavy diesel oil, fuel oil) and lubricating oil in ships and diesel engines. This process helps reduce wear and extend equipment service life.

Designed, manufactured, and inspected in accordance with GB/T5745-2002 "Marine Disk Separator" standards. Features stable operation with vibration levels well below national standard requirements. All materials are constructed from stainless steel, effectively minimizing corrosion of separation components.

Technical Specifications
Model Rated Treatment Capacity (L/h) Inlet Pressure (MPa) Outlet Pressure (MPa)
KYDR204DD-23 1500 ≤0.05 ≥0.2
KYDH204SD-23 2000 ≤0.05 ≥0.2
JOS10 3000 0.2 0.15-0.2
Marine Diesel Oil Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure for Solid-Liquid Separation 0 Marine Diesel Oil Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure for Solid-Liquid Separation 1 Marine Diesel Oil Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure for Solid-Liquid Separation 2
Main Features
  • Equipped with stationary centripetal pumps for heavy phase and light phase output. Separated phases are efficiently discharged through large and small centripetal pumps located at the top of the drum.
  • Includes various specific gravity rings with different diameters, allowing selection based on material density and volume requirements.
  • Features backpressure regulating valve for precise control of separation effectiveness through backpressure adjustment.
Certifications

Our company maintains comprehensive quality assurance with advanced equipment including filters, separators, decanter centrifuges, and pumps. We hold multiple certifications including CE certificates, ASME U certificate, and ISO 9001 certification.

Marine Diesel Oil Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure for Solid-Liquid Separation 3 Marine Diesel Oil Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure for Solid-Liquid Separation 4 Marine Diesel Oil Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure for Solid-Liquid Separation 5
Company Profile
Marine Diesel Oil Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure for Solid-Liquid Separation 6
Jiangsu Juneng Machinery Co., Ltd in Yixing

We specialize in manufacturing disc separators and liquid pumps. Contact us for personalized recommendations and we'll help you select the most suitable model for your requirements.

Our Service
Marine Diesel Oil Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure for Solid-Liquid Separation 7 Marine Diesel Oil Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure for Solid-Liquid Separation 8
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing opportunities
After-Sales Service
  • Comprehensive installation and operation training
  • Overseas engineering service support
  • Repair and maintenance services
Packing & Delivery
Marine Diesel Oil Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure for Solid-Liquid Separation 9
Packaging Details
Transport Ocean shipping sea transportation
Container 20'GP, 40'HC or Shipping LCL
Packaging Details Standard wooden box packaging (Size: L*W*H). European shipments include fumigated wooden boxes. Alternative packaging available for tight containers or special customer requests.
