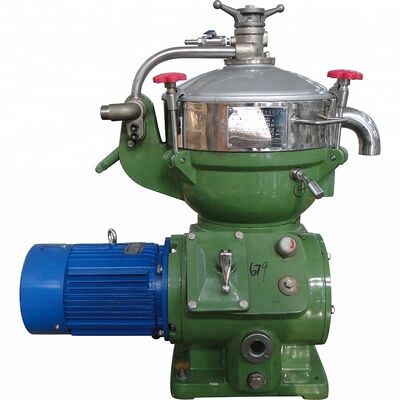

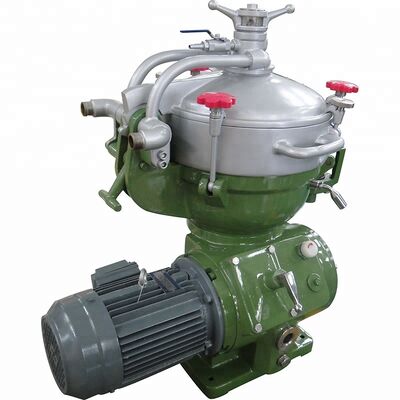

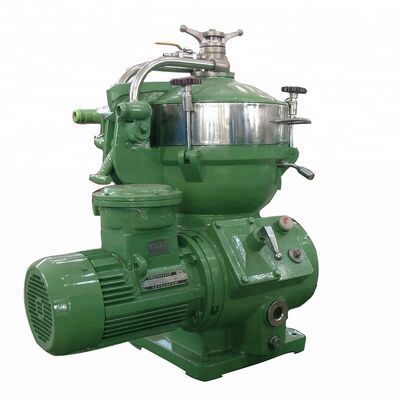

Marine Disc Separator Fuel Oil Purifier with 1500 L/h Capacity, Stainless Steel 304 Construction for Corrosion Resistance

Certification
China JUNENG MACHINERY (CHINA) CO., LTD. certification
China JUNENG MACHINERY (CHINA) CO., LTD. certification
Customer Reviews
Kedua-dua bunyi pemisahan dan getaran adalah ok, berjalan kadar aliran 11㎥ / h

—— Hossain

The equipment is running normally, the flow rate is ok, thank the engineer.

—— Prakash

* The trainer operate the machine.He did a complete maintance. * No Issue * The trainer did a good job.Thanks.

—— Amro Alropshy

이미 확인 된 모든 구분 기호입니다. 아무런 문제가 없습니다.

—— Kim

Масло не проходит через линию промывки, Качество масла не плохое.

—— Alexander

I'm Online Chat Now

Marine Disc Separator Fuel Oil Purifier with 1500 L/h Capacity, Stainless Steel 304 Construction for Corrosion Resistance

Marine Disc Separator Fuel Oil Purifier with 1500 L/h Capacity, Stainless Steel 304 Construction for Corrosion Resistance
Marine Disc Separator Fuel Oil Purifier with 1500 L/h Capacity, Stainless Steel 304 Construction for Corrosion Resistance Marine Disc Separator Fuel Oil Purifier with 1500 L/h Capacity, Stainless Steel 304 Construction for Corrosion Resistance Marine Disc Separator Fuel Oil Purifier with 1500 L/h Capacity, Stainless Steel 304 Construction for Corrosion Resistance

Large Image :  Marine Disc Separator Fuel Oil Purifier with 1500 L/h Capacity, Stainless Steel 304 Construction for Corrosion Resistance

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Certification: CE ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1

Marine Disc Separator Fuel Oil Purifier with 1500 L/h Capacity, Stainless Steel 304 Construction for Corrosion Resistance

Description
Dimension: 918*545*940 Mm Flow Rate: 1500 L/h
Power: 4000 W Voltage: Customer's Requirement
Weight: 408 Kg Material: Stainless Steel 304
Capacity: 1500 L/h Motor Power: 4 Kw
Rated Capacity: 1500 Liter/Hour Output Phase: Heavy & Light
Gravity Rings: Various Diameters Backpressure Valve: Adjustable
Vibration Level: Below National Standard Corrosion Resistance: High (Stainless Steel)
Operation Stability: High
Highlight:

Stainless Steel 304 Marine Disc Separator

,

1500 L/h Capacity Fuel Oil Purifier

,

Corrosion Resistant Industrial Oil Separator

Water Separator Diesel Fuel Filter Water Drum Separator
Product Application

Our marine separator efficiently separates heavy diesel oil, allowing it to be used as a replacement for light diesel oil, significantly reducing production costs.

The marine separator is specifically designed for removing moisture and mechanical impurities from fuel (light diesel oil, heavy diesel oil, fuel oil) and lubricating oil in ships and diesel engines. This process helps reduce wear and extend equipment service life.

Designed, manufactured, and inspected in accordance with GB/T5745-2002 "Marine Disk Separator" standards. Features stable operation with vibration levels significantly below national standard values. All materials are constructed from stainless steel, effectively reducing corrosion of separation components.

Specifications for Marine Separator
Model KYDR204DD-23
Rated Treatment Capacity 1500 Liter/Hour
Motor Power 4 Kw
Outline Dimension 918 × 545 × 940 mm
Marine Disc Separator Fuel Oil Purifier with 1500 L/h Capacity, Stainless Steel 304 Construction for Corrosion Resistance 0 Marine Disc Separator Fuel Oil Purifier with 1500 L/h Capacity, Stainless Steel 304 Construction for Corrosion Resistance 1
Main Features
  • Equipped with stationary centripetal pumps for heavy phase and light phase output. Separated phases are efficiently discharged through large and small centripetal pumps located at the top of the drum.
  • Includes various specific gravity rings with different diameters, allowing selection based on material density and volume requirements.
  • Features backpressure regulating valve for precise control of separation effectiveness through backpressure adjustment.
Certifications
Marine Disc Separator Fuel Oil Purifier with 1500 L/h Capacity, Stainless Steel 304 Construction for Corrosion Resistance 2
Company Profile
Marine Disc Separator Fuel Oil Purifier with 1500 L/h Capacity, Stainless Steel 304 Construction for Corrosion Resistance 3
Jiangsu Juneng Machinery Co., Ltd in Yixing

We specialize in manufacturing disc separators and liquid pumps. If you have requirements for these products, please contact us. We're happy to recommend the most suitable model for your specific application.

Packing & Delivery
Marine Disc Separator Fuel Oil Purifier with 1500 L/h Capacity, Stainless Steel 304 Construction for Corrosion Resistance 4

Transport: Ocean shipping, sea transportation

Container: 20'GP, 40'HC or Shipping LCL

Packaging Details: Standard packaging includes wooden boxes (Size: L*W*H). For European exports, wooden boxes are fumigated. For tight container spaces, we use PE film packaging or accommodate special customer requests.

Our Service
Marine Disc Separator Fuel Oil Purifier with 1500 L/h Capacity, Stainless Steel 304 Construction for Corrosion Resistance 5 Marine Disc Separator Fuel Oil Purifier with 1500 L/h Capacity, Stainless Steel 304 Construction for Corrosion Resistance 6
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing opportunities
After-Sales Service
  • Machine installation training
  • Machine operation training
  • Overseas engineering service support
