Marine Oil Centrifuge Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure

Marine Oil Centrifuge Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure
Marine Oil Centrifuge Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure Marine Oil Centrifuge Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure Marine Oil Centrifuge Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure

Large Image :  Marine Oil Centrifuge Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure

Product Details:
Place of Origin: China
Brand Name: Juneng
Certification: ISO, CE,BV
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $11,000-11,399
Contact Now

Marine Oil Centrifuge Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure

Description
Voltage: 220V/380V/460V Power: 4 Kw
Dimensions: 720*800*1100 Mm Capacity: 2000 L/H
Discharge Type: Automatic Discharge Drum ID: 265mm
Drum Speed: 8086 R/min Weight: 573 Kg
Core Components: PLC, Pump Inlet Pressure: ≤0.05 Mpa
Outlet Pressure: ≥0.2 Mpa Material: Stainless Steel
Separation Phases: 3/2 Phases Rated Capacity: 1500-3000 L/h
Structure Type: Stable Structure
Highlight:

2000 L/H Capacity Marine Oil Separator

,

Automatic Discharge Centrifuge Separator

,

Stable Structure Fuel Oil Centrifuge

KYDH204 Marine Oil and Fuel Oil Centrifuge Separator
Product Application
The marine separator effectively processes heavy diesel oil to replace light diesel oil, significantly reducing production costs while maintaining performance.
This industrial separator is specifically designed for removing moisture and mechanical impurities from fuel oils (light diesel, heavy diesel, fuel oil) and lubricating oils used in marine vessels and diesel engines. This purification process reduces equipment wear and extends service life.
Manufactured in compliance with GB/T5745-2002 Marine Disk Separator standards, this equipment features stable operation with vibration levels well below national standards. All contact materials are constructed from stainless steel to minimize corrosion and ensure durability.
Technical Specifications
Model Rated Treatment Capacity (L/h) Inlet Pressure (MPa) Outlet Pressure (MPa)
KYDR204DD-23 1500 ≤0.05 ≥0.2
KYDH204SD-23 2000 ≤0.05 ≥0.2
JOS10 3000 0.2 0.15-0.2
Product Images

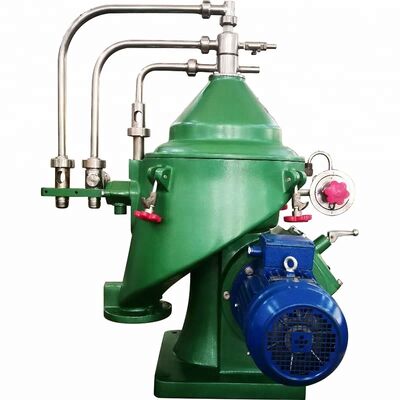

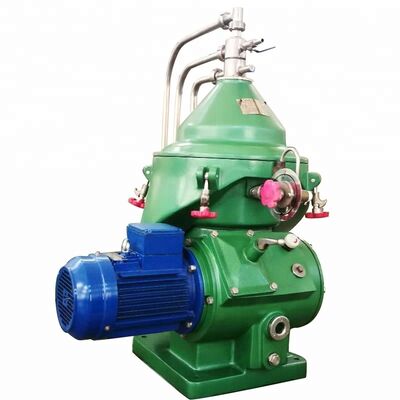

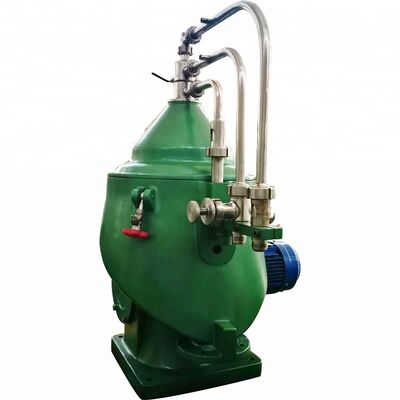

Marine Oil Centrifuge Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure 0 Marine Oil Centrifuge Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure 1 Marine Oil Centrifuge Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure 2
Main Features
  • Equipped with stationary centripetal pumps for both heavy phase and light phase output, with separated phases discharged through dedicated pumps on the drum top
  • Includes multiple specific gravity rings of varying diameters for optimal performance across different material densities and volumes
  • Features backpressure regulating valve for precise control over separation efficiency
Quality Certifications
Marine Oil Centrifuge Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure 3
Manufacturer Profile
Jiangsu Juneng Machinery Co., Ltd in Yixing specializes in manufacturing high-quality disc separators and liquid pumps. Our engineering team provides expert recommendations to match the most suitable model for your specific application requirements.
Marine Oil Centrifuge Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure 4
Customer Support Services
Marine Oil Centrifuge Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure 5 Marine Oil Centrifuge Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure 6
Pre-Sales Services
  • Comprehensive inquiry and technical consulting support
  • Sample testing and analysis services
  • Factory visit arrangements
After-Sales Services
  • Complete installation and operational training
  • International engineering support for overseas machinery service
  • Professional repair and maintenance programs
Packaging & Delivery
Marine Oil Centrifuge Separator with 2000 L/H Capacity, Automatic Discharge, and Stable Structure 7
Packaging Details
Transport Method Ocean shipping and sea transportation
Container Options 20'GP, 40'HC or LCL shipping
Packaging Specifications Standard wooden box packaging (L*W*H dimensions). European exports include fumigated wooden boxes. Alternative packaging available for tight containers or special customer requirements.
