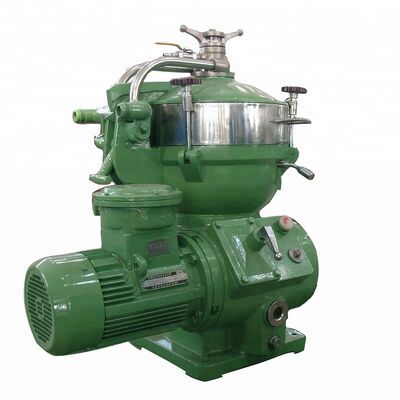

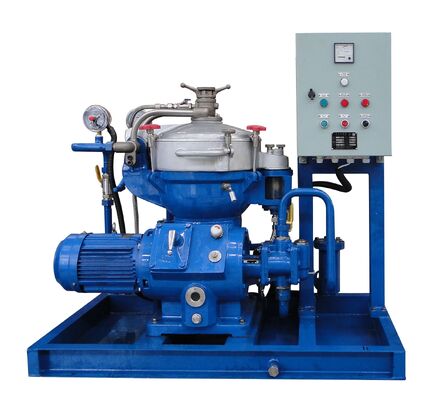

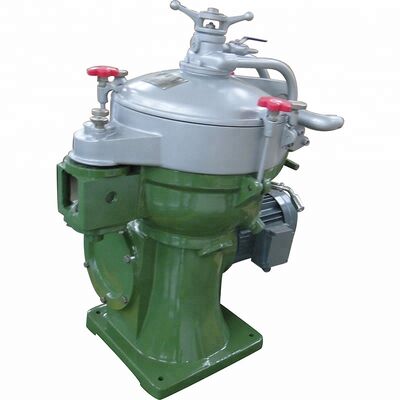

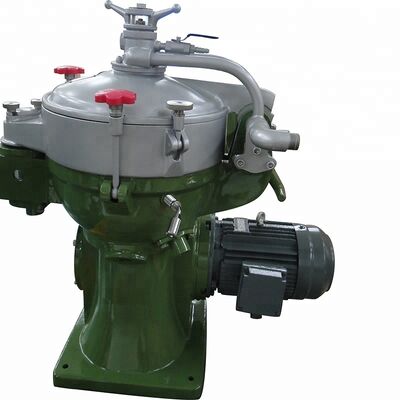

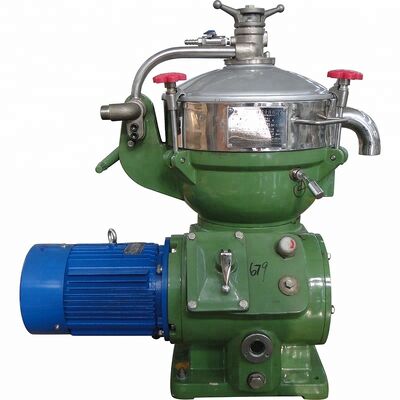

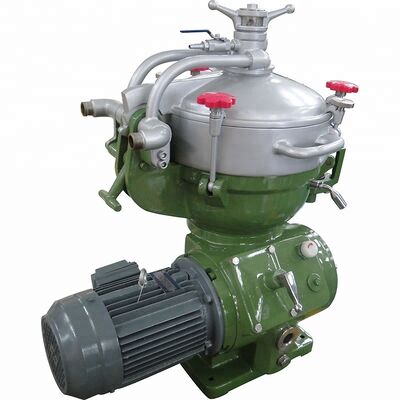

Marine Disc Separator - Stainless Steel 304 Solid-Liquid Separator Machine with 1500 L/h Capacity at Competitive Price

Marine Disc Separator - Stainless Steel 304 Solid-Liquid Separator Machine with 1500 L/h Capacity at Competitive Price
Marine Disc Separator - Stainless Steel 304 Solid-Liquid Separator Machine with 1500 L/h Capacity at Competitive Price Marine Disc Separator - Stainless Steel 304 Solid-Liquid Separator Machine with 1500 L/h Capacity at Competitive Price Marine Disc Separator - Stainless Steel 304 Solid-Liquid Separator Machine with 1500 L/h Capacity at Competitive Price Marine Disc Separator - Stainless Steel 304 Solid-Liquid Separator Machine with 1500 L/h Capacity at Competitive Price Marine Disc Separator - Stainless Steel 304 Solid-Liquid Separator Machine with 1500 L/h Capacity at Competitive Price Marine Disc Separator - Stainless Steel 304 Solid-Liquid Separator Machine with 1500 L/h Capacity at Competitive Price

Large Image :  Marine Disc Separator - Stainless Steel 304 Solid-Liquid Separator Machine with 1500 L/h Capacity at Competitive Price

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Certification: CE ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: CN¥244,926.50-251,924.40
Contact Now

Marine Disc Separator - Stainless Steel 304 Solid-Liquid Separator Machine with 1500 L/h Capacity at Competitive Price

Description
Voltage: 380 Power: 4000 W
Material: Stainless Steel 304 Capacity: 1500 L/h
Motor Power: 4 Kw Outline Dimension: 918*545*940 Mm
Weight: 500 Kg Core Components: PLC, Motor, Pump
Product Type: Heavy Fuel Oil Rated Treatment Capacity: 1500 Liter/Hour
Separator Type: Marine Disc Separator Backpressure Regulation: Yes
Centripetal Pumps: Heavy & Light Phase Specific Gravity Rings: Adjustable
Vibration Level: Below National Standard
Highlight:

Stainless Steel 304 Marine Disc Separator

,

1500 L/h Capacity Solid-Liquid Separator Machine

,

Competitive Price Oil Water Solid Separator

Solid-Liquid Separator Machine Centrifuge, Oil Water Solid Separator Disc Centrifuge
Product Application
Our marine separator efficiently processes heavy diesel oil to replace light diesel oil, significantly reducing production costs. Designed for ship and diesel engine applications, it effectively removes moisture and mechanical impurities from fuel (light diesel oil, heavy diesel oil, fuel oil) and lubricating oil, reducing wear and extending equipment service life.
Manufactured in compliance with GB/T5745-2002 "Marine Disk Separator" standards, this equipment features stable operation with vibration levels well below national standards. All components are constructed from stainless steel to minimize corrosion and ensure durability.
Specifications for Marine Separator
Model KYDR204DD-23
Rated Treatment Capacity 1500 Liter/Hour
Motor Power 4 Kw
Outline Dimension 918 × 545 × 940 mm
Marine Disc Separator - Stainless Steel 304 Solid-Liquid Separator Machine with 1500 L/h Capacity at Competitive Price 0 Marine Disc Separator - Stainless Steel 304 Solid-Liquid Separator Machine with 1500 L/h Capacity at Competitive Price 1
Main Features
  • Stationary centripetal pumps for heavy phase and light phase output with separate discharge through large and small centripetal pumps located at the drum top
  • Multiple specific gravity rings with various diameters for optimal material separation based on density and volume requirements
  • Backpressure regulating valve for precise control of separation efficiency and performance
Packaging & Delivery
Marine Disc Separator - Stainless Steel 304 Solid-Liquid Separator Machine with 1500 L/h Capacity at Competitive Price 2
Transport Ocean shipping sea transportation transport by sea
Container 20'GP, 40'HC or Shipping LCL
Packaging Details Standard wooden box packaging (Size: L*W*H). European exports include fumigated wooden boxes. Alternative packaging available for tight containers or special customer requirements.
Company Profile
Marine Disc Separator - Stainless Steel 304 Solid-Liquid Separator Machine with 1500 L/h Capacity at Competitive Price 3
Jiangsu Juneng Machinery Co., Ltd in Yixing specializes in manufacturing disc separators and liquid pumps. Our technical team provides expert recommendations for the most suitable models based on your specific requirements.
Certifications
Our quality management system is certified with ASME U (Certificate No.: 38793), ISO 9001:2015 (Certificate No.: CN1299-QC), ISO 14001:2015 (Certificate No.: CN1299-EC), OHSAS 45001:2018 (Certificate No.: CN1299-SC), BV and CE certifications.
Marine Disc Separator - Stainless Steel 304 Solid-Liquid Separator Machine with 1500 L/h Capacity at Competitive Price 4 Marine Disc Separator - Stainless Steel 304 Solid-Liquid Separator Machine with 1500 L/h Capacity at Competitive Price 5
Our Service
Marine Disc Separator - Stainless Steel 304 Solid-Liquid Separator Machine with 1500 L/h Capacity at Competitive Price 6
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing opportunities
Marine Disc Separator - Stainless Steel 304 Solid-Liquid Separator Machine with 1500 L/h Capacity at Competitive Price 7
After-Sales Service
  • Machine installation and operation training
  • Overseas engineering service support
Exhibitions We Attended
We regularly participate in international exhibitions including ACHEMA, AchemAsia 2019, ProFood Tech, 21st Interphex Week Japan, Spring and Autumn Canton Fair, and other domestic industry events.
Marine Disc Separator - Stainless Steel 304 Solid-Liquid Separator Machine with 1500 L/h Capacity at Competitive Price 8
