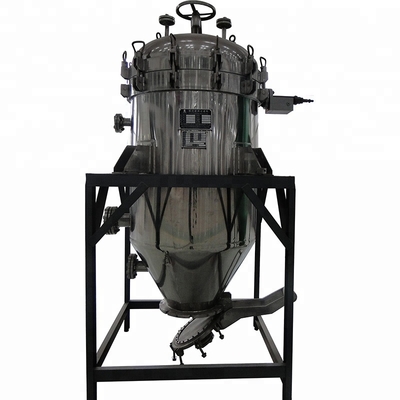

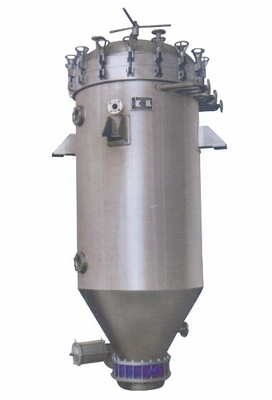

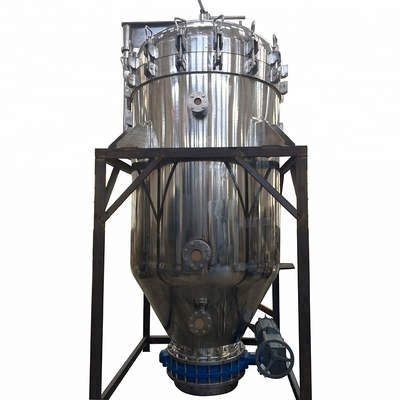

NYB Vertical Pressure Stainless Steel Plate Filter for Oil Industry
Product Specifications
| Attribute |
Value |
| Condition |
New |
| Max. Capacity |
500L/H |
| Warranty |
1 Year |
| Particle Size |
2 |
| Flow Rate |
2gpm (7.6lpm) |
| Maximum pressure |
120psi |
| After-sales Service |
Field maintenance and repair service |
| Function |
Oil Filter |
| Structure |
Leaf Filter |
| Capacity |
2-4T/H |
| Filtration area |
12m² |
| Material |
Carbon steel, Stainless steel |
| Design Temperature |
100-150 ℃ |
| Design Pressure |
0.6Mpa |
| Inlet size |
DN50 |
| Overflow port size |
DN40 |
Product Description
The NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

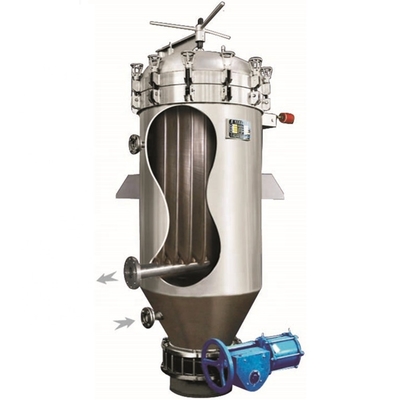

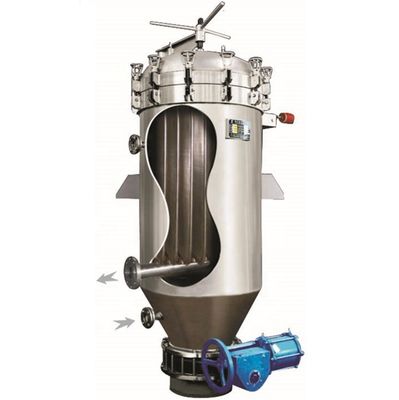

The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, so it can be dismantled for cleaning very conveniently.
Technical Specifications
| Model |
Filtration area (㎡) |
Filter cake volume (L) |
Treatment Capacity |
Work Pressure (Mpa) |
Work temperature (℃) |
Machine volume (L) |
| NYB-2 |
2 |
30 |
0.4-0.6 |
0.1-0.4 |
≤150 |
120 |
| NYB-4 |
4 |
60 |
0.5-1.2 |
2-5 |
≤150 |
250 |
| NYB-7 |
7 |
105 |
1-1.8 |
4-7 |
≤150 |
420 |
| NYB-10 |
10 |
150 |
1.6-3 |
6-9 |
≤150 |
800 |
| NYB-12 |
12 |
240 |
2-4 |
8-11 |
≤150 |
1000 |
| NYB-15 |
15 |
300 |
3-5 |
10-13 |
≤150 |
1300 |
| NYB-20 |
20 |
400 |
4-6 |
12-17 |
≤150 |
1680 |
| NYB-25 |
25 |
500 |
5-7 |
16-21 |
≤150 |
1900 |
| NYB-30 |
30 |
600 |
6-8 |
19-25 |
≤150 |
2300 |
| NYB-36 |
36 |
720 |
7-9 |
23-31 |
≤150 |
2650 |
| NYB-40 |
40 |
800 |
8-11 |
30-38 |
≤150 |
2900 |
| NYB-45 |
45 |
900 |
9-13 |
36-44 |
≤150 |
3200 |
| NYB-52 |
52 |
1040 |
10-15 |
42-51 |
≤150 |
3800 |
| NYB-60 |
60 |
1200 |
11-17 |
48-60 |
≤150 |
4500 |
| NYB-70 |
70 |
1400 |
12-19 |
56-68 |
≤150 |
5800 |
| NYB-80 |
80 |
1600 |
13-21 |
64-78 |
≤150 |
7200 |
Main Features
- No cloth or filter paper required, significantly reducing filtration costs
- Fully closed operation is environmentally friendly with no material loss
- Vibration residue falling reduces labor intensity and enables continuous operation
- Residue discharging through pneumatic valve reduces worker labor intensity
- Can completely replace plate and frame filters, representing a revolutionary device in the filter industry

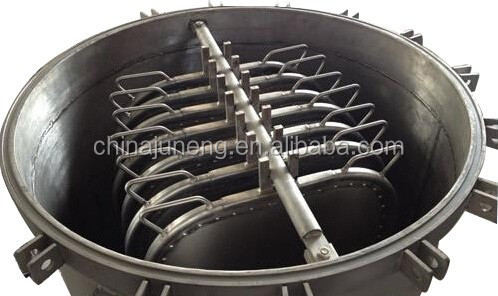

Filter Leaf for 30D09 (NYB-12 Example)
To obtain 12 sqm filtration area, the filter is executed with 11 filter leaves.
- Leaves surrounded by heavy box channel 1.8 mm material 316L
- Topside of leaf with reinforcement and one vibrator fork per leaf (material SS 316)
- Leaf bottom with outlet nozzle with "O"ring seal (material nozzle SS 316 and Viton rubber "O"ring)

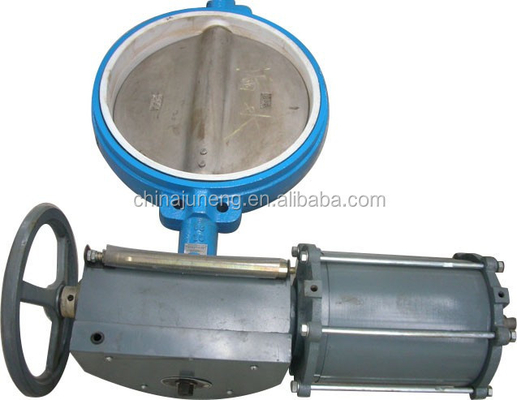

Butterfly Valve (NYB-12 Example)
At the bottom of the filter a DN 400 butterfly valve WAFER TYPE for dry cake discharge.
- 1st quality butterfly valve
- Seat material: NH-S (up to 150 °C high temp)
- Valve complete with pneumatic actuator double acting type with air supply 5.5 Bar
