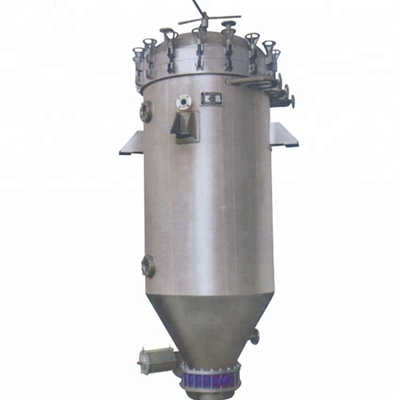

Amafilter Industrial Vertical Pressure Leaf Filter 500-100000LPH Capacity

Amafilter Industrial Vertical Pressure Leaf Filter 500-100000LPH Capacity
Amafilter Industrial Vertical Pressure Leaf Filter 500-100000LPH Capacity Amafilter Industrial Vertical Pressure Leaf Filter 500-100000LPH Capacity Amafilter Industrial Vertical Pressure Leaf Filter 500-100000LPH Capacity Amafilter Industrial Vertical Pressure Leaf Filter 500-100000LPH Capacity Amafilter Industrial Vertical Pressure Leaf Filter 500-100000LPH Capacity Amafilter Industrial Vertical Pressure Leaf Filter 500-100000LPH Capacity

Large Image :  Amafilter Industrial Vertical Pressure Leaf Filter 500-100000LPH Capacity

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $7,500-7,900 / set
Contact Now

Amafilter Industrial Vertical Pressure Leaf Filter 500-100000LPH Capacity

Description
Capacity: 500-100000LPH Filtration Area: 2m2-100m2
Material: Carbon Steel Design Temperature: 100-150 C
Design Pressure: 0.6Mpa Inlet Size: DN50
Outlet Size: DN50 Filter Cake Volume: 30-1600L
Work Pressure: 0.1-0.4Mpa Work Temperature: ≤150℃
Machine Volume: 120-7200L Structure: Leaf Filter
Function: Oil Filter Treatment Capacity: 0.4-21 (varies By Model)
Weight: 1.2 T
Highlight:

industrial vertical pressure leaf filter

,

pressure leaf filter 500-100000LPH

,

vertical leaf filter with warranty

Amafilter Industrial Vertical Pressure Leaf Filter
Product Specifications
Attribute Value
Condition New
Warranty 1 Year
Function Oil Filter
Structure Leaf Filter
Capacity 500-100000LPH
Filtration area 2m²-100m²
Material Carbon steel
Color Green or blue
Design Temperature 100-150°C
Design Pressure 0.6Mpa
Inlet size DN50
Outlet size DN50
After Warranty Service Video technical support, Online support, Spare parts, Field maintenance and repair service
After-sales Service Provided Field maintenance and repair service
Applicable Industries Food & Beverage Factory, Resin Industry
Video outgoing-inspection Provided
Machinery Test Report Provided
Warranty of core components 1 Year
Core Components Pressure vessel
Product Description

NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

The filter is composed of shell, filtration plate, cover, and automatic dump device. Among them, the filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, so it can be dismantled for cleaning very conveniently.

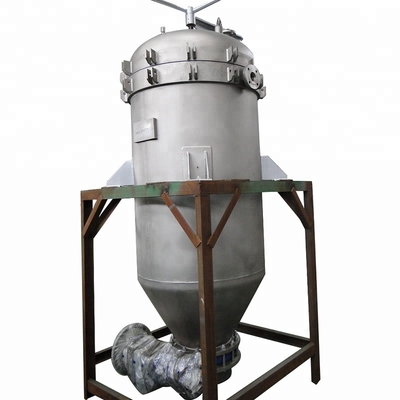

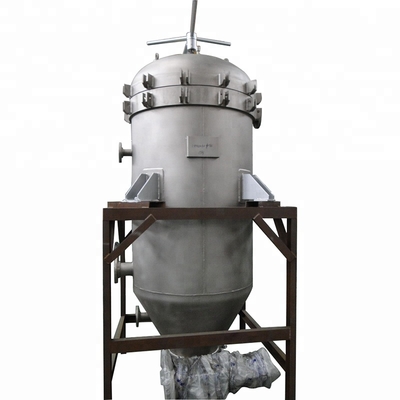

Amafilter Industrial Vertical Pressure Leaf Filter 500-100000LPH Capacity 0 Amafilter Industrial Vertical Pressure Leaf Filter 500-100000LPH Capacity 1
Technical Specifications
Model Filtration area (m²) Filter cake volume (L) Treatment Capacity Work Pressure (Mpa) Work temperature (°C) Machine volume (L)
Oil Resin Beverage
NYB-2 2 30 0.4-0.6 1-1.5 0.1-0.4 0.5 ≤150 120
NYB-4 4 60 0.5-1.2 2-3 2-5 0.5 ≤150 250
NYB-7 7 105 1-1.8 3-6 4-7 0.5 ≤150 420
NYB-10 10 150 1.6-3 5-8 6-9 0.5 ≤150 800
NYB-12 12 240 2-4 6-9 8-11 0.5 ≤150 1000
NYB-15 15 300 3-5 7-12 10-13 0.5 ≤150 1300
NYB-20 20 400 4-6 9-15 12-17 0.5 ≤150 1680
NYB-25 25 500 5-7 12-19 16-21 0.5 ≤150 1900
NYB-30 30 600 6-8 14-23 19-25 0.5 ≤150 2300
NYB-36 36 720 7-9 16-27 23-31 0.5 ≤150 2650
NYB-40 40 800 8-11 21-34 30-38 0.5 ≤150 2900
NYB-45 45 900 9-13 24-34 36-44 0.5 ≤150 3200
NYB-52 52 1040 10-15 27-45 42-51 0.5 ≤150 3800
NYB-60 60 1200 11-17 30-52 48-60 0.5 ≤150 4500
NYB-70 70 1400 12-19 36-60 56-68 0.5 ≤150 5800
NYB-80 80 1600 13-21 40-68 64-78 0.5 ≤150 7200

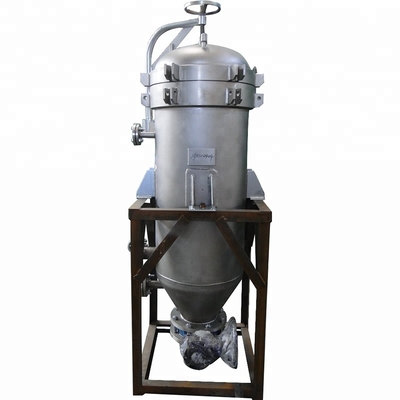

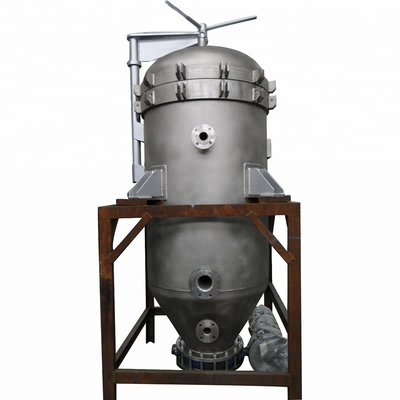

Amafilter Industrial Vertical Pressure Leaf Filter 500-100000LPH Capacity 2 Amafilter Industrial Vertical Pressure Leaf Filter 500-100000LPH Capacity 3 Amafilter Industrial Vertical Pressure Leaf Filter 500-100000LPH Capacity 4
Main Features
  • With no cloth and filter paper, it greatly reduces filtration costs
  • The fully closed operation is environmentally friendly without material loss
  • Vibration residue falling greatly reduces labor intensity and realizes continuous operation
  • Residue discharging through the pneumatic valve greatly reduces labor intensity of workers
  • The residues in the liquids are subject to activated carbon (carclazyte) filtering or bleaching filtering. It can completely replace the plate and frame filter and is a revolutionary device in the filter industry
Amafilter Industrial Vertical Pressure Leaf Filter 500-100000LPH Capacity 5
Our Service
Amafilter Industrial Vertical Pressure Leaf Filter 500-100000LPH Capacity 6 Amafilter Industrial Vertical Pressure Leaf Filter 500-100000LPH Capacity 7
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • View our Factory
After-Sales Service
  • Training how to install the machine, training how to use the machine
  • Engineers available to service machinery overseas
Packaging & Delivery
Amafilter Industrial Vertical Pressure Leaf Filter 500-100000LPH Capacity 8
Size 123 (L) * 456 (W) * 789 (D)
Weight 1.2 T
Packaging Details The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated. If container is too tigher,we will use pe film for packing or pack it according to customers special request.
