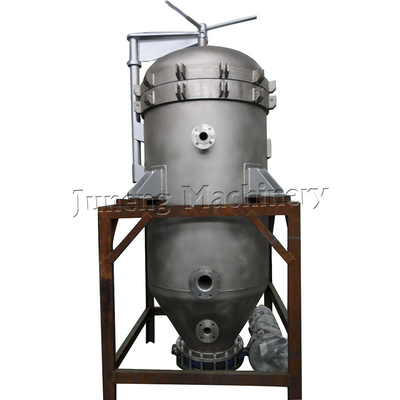

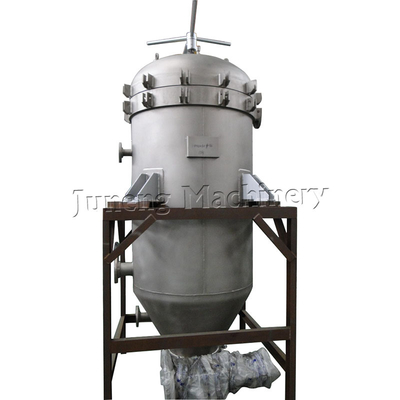

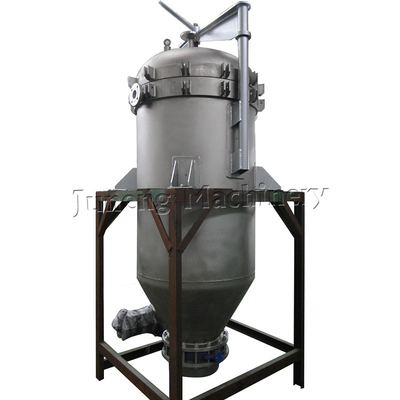

Stainless Steel 304 Pressure Leaf Filter 20m2 Filtration Area 4-6T/H

The NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

• No cloth or filter paper required, significantly reducing filtration costs
• Fully closed operation is environmentally friendly with no material loss
• Vibration residue removal reduces labor intensity and enables continuous operation
• Pneumatic valve residue discharge minimizes worker labor requirements
• Capable of activated carbon (carclazyte) filtering or bleaching filtering
• Can completely replace plate and frame filters - a revolutionary device in the filtration industry

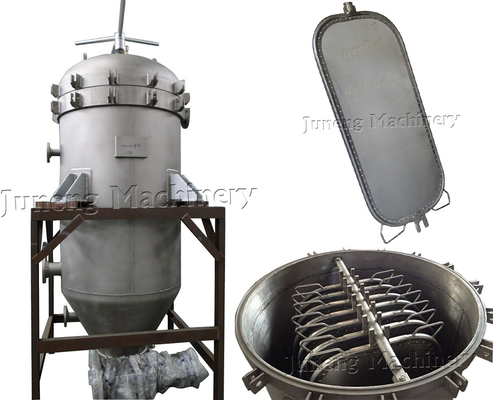

• 11 filter leaves provide 12 sqm filtration area
• Leaves surrounded by heavy box channel made of 1.8mm 316L material
• Topside of leaf with reinforcement and one vibrator fork per leaf (SS 316 material)
• Leaf bottom with outlet nozzle featuring "O"ring seal (SS 316 nozzle with Viton rubber "O"ring)

• DN 400 butterfly valve (WAFER TYPE) for dry cake discharge at filter bottom
• 1st quality butterfly valve with NH-S seat material (up to 150°C high temp)
• Includes pneumatic actuator (double acting type) with 5.5 Bar air supply

• Inquiry and consulting support
• Sample testing support
• Factory viewing available

• Installation and operation training
• Engineers available for overseas machinery service
• Professional after-sales service team provides free equipment instruction and installation
• Prompt response within 2 hours for domestic China service requests

Juneng Machinery (China) Co., Ltd., established in 2006, is a professional manufacturer engaged in the research, development, production, sale and service of Filters, Separators, Decanter centrifuges and pumps. With four factories located in Nanjing and Yixing City, we offer convenient transportation access.

Our company maintains strict quality control and thoughtful customer service, with experienced staff always available to discuss requirements and ensure full customer satisfaction. We hold CE certificates, ASME U certificate and ISO 9001 certification, with products exported worldwide including USA, Germany, Korea, Japan, and many other countries.

• Factory visit/audit available prior to purchase
• Material inspection during manufacturing process and prior to shipment
• Full compliance with technical requirements

• Continuous innovation and self-improvement
• 5% of sales revenue allocated to research
• 8% of workforce dedicated to development
• Numerous patents and high-quality new products
