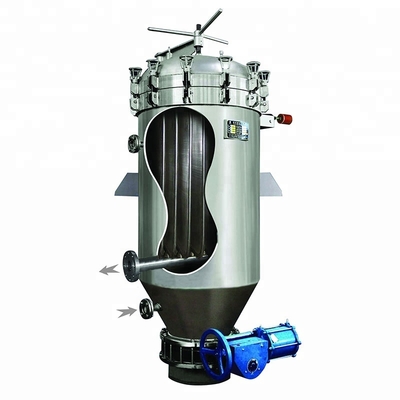

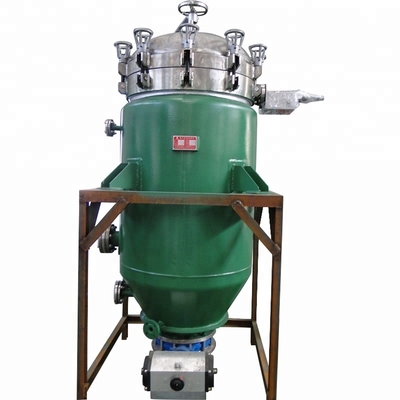

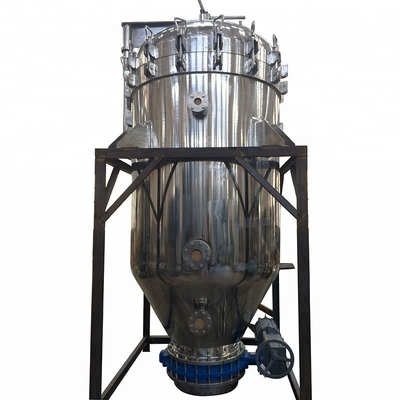

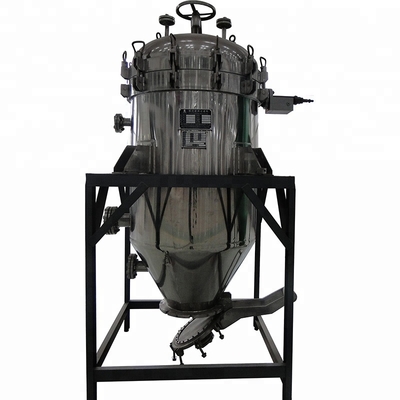

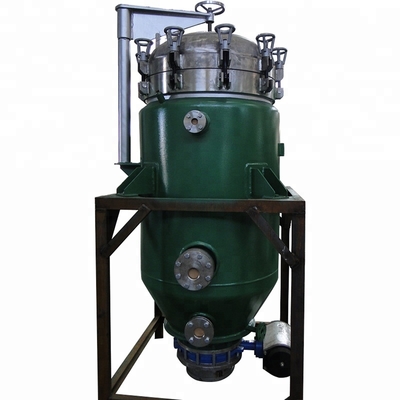

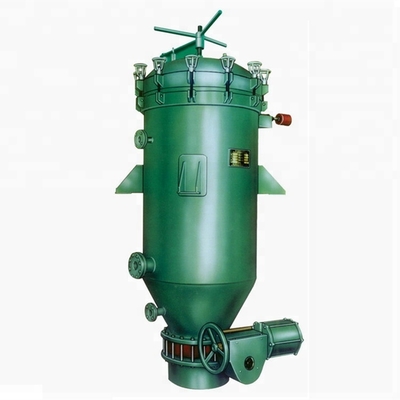

NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching

Large Image : NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Juneng

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$7,760-8,000 / set

Contact Now

NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching

Description

Weight:	1000 Kg	Filtration Area:	2-80 ㎡
Filter Cake Volume:	30-1600 L	Treatment Capacity:	0.4-21
Work Pressure:	0.1-0.68 Mpa	Work Temperature:	≤150 ℃
Machine Volume:	120-7200 L	Material:	Stainless Steel
Operation Type:	Fully Closed	Residue Discharge:	Pneumatic Valve
Package Size:	123456789 Cm	Package Weight:	1.2 T
Filtration Type:	Activated Carbon/bleaching	Vibration Residue:	Yes
Continuous Operation:	Yes
Highlight:	Pressure Leaf Filter Machine 1000kg , Oil Bleaching Pressure Leaf Filter , Industrial Pressure Filter with Warranty

Oil Bleaching Pressure Leaf Filter Machine

Product Specifications

Attribute	Value
Condition	New
Weight (kg)	1000
Warranty	1 Year

Product Description

NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, so it can be dismantled for cleaning very conveniently.

Technical Specifications

Model	Filtration area (㎡)	Filter cake volume (L)	Treatment Capacity			Work Pressure (Mpa)	Work temperature (℃)	Machine volume (L)
			Oil	Resin	Beverage	Rated pressure	Max pressure
NYB-2	2	30	0.4-0.6	1-1.5	0.1-0.4	0.5	≤150	120
NYB-4	4	60	0.5-1.2	2-3	2-5	0.5	≤150	250
NYB-7	7	105	1-1.8	3-6	4-7	0.5	≤150	420
NYB-10	10	150	1.6-3	5-8	6-9	0.5	≤150	800
NYB-12	12	240	2-4	6-9	8-11	0.5	≤150	1000
NYB-15	15	300	3-5	7-12	10-13	0.5	≤150	1300
NYB-20	20	400	4-6	9-15	12-17	0.5	≤150	1680
NYB-25	25	500	5-7	12-19	16-21	0.5	≤150	1900
NYB-30	30	600	6-8	14-23	19-25	0.5	≤150	2300
NYB-36	36	720	7-9	16-27	23-31	0.5	≤150	2650
NYB-40	40	800	8-11	21-34	30-38	0.5	≤150	2900
NYB-45	45	900	9-13	24-34	36-44	0.5	≤150	3200
NYB-52	52	1040	10-15	27-45	42-51	0.5	≤150	3800
NYB-60	60	1200	11-17	30-52	48-60	0.5	≤150	4500
NYB-70	70	1400	12-19	36-60	56-68	0.5	≤150	5800
NYB-80	80	1600	13-21	40-68	64-78	0.5	≤150	7200

Main Features

No cloth or filter paper required, significantly reducing filtration costs
Fully closed operation is environmentally friendly with no material loss
Vibration residue falling reduces labor intensity and enables continuous operation
Residue discharging through pneumatic valve minimizes worker labor intensity
Capable of activated carbon (carclazyte) filtering or bleaching filtering, completely replacing plate and frame filters
