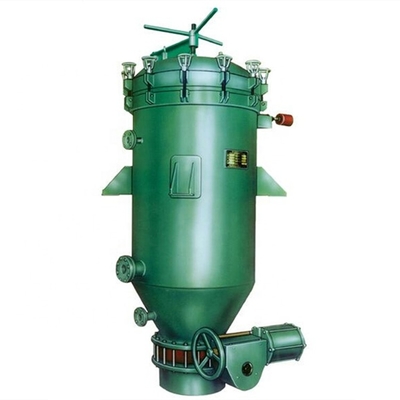

Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H

Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H
Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H

Large Image :  Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $11,000-11,199 / set
Contact Now

Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H

Description
Voltage: Customized Power: 1500 W
Weight: 1000 Kg Dimensions: 1610*1250*2500 Mm
Capacity: 2-4T/H Filtration Area: 12m2
Material: Carbon Steel, Stainless Steel Design Temperature: 100-150 ℃
Design Pressure: 0.6Mpa Inlet Size: DN50
Outlet Size: DN50 Filter Cake Volume: 240 L
Work Pressure: 0.1-0.4 Mpa Work Temperature: ≤150 ℃
Machine Volume: 1000 L
Highlight:

semi-automatic pressure leaf filter

,

oil bleaching filter 12m2

,

pressure leaf filter 2-4T/H

New Oil Bleaching Pressure Leaf Filter Press Machine
Product Specifications
Condition New
Automatic Grade Semi-automatic
Voltage Customized
Power 1500W
Weight 1000 kg
Dimension (L×W×H) 1610×1250×2500 mm
Warranty 1 Year
Function Oil Filter
Structure Leaf Filter
Capacity 2-4T/H
Filtration Area 12m²
Material Carbon steel, Stainless steel
Color Green or blue
Design Temperature 100-150 ℃
Design Pressure 0.6Mpa
Inlet Size DN50
Outlet Size DN50
Applicable Industries Manufacturing Plant, Food & Beverage Factory
Product Description
The NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

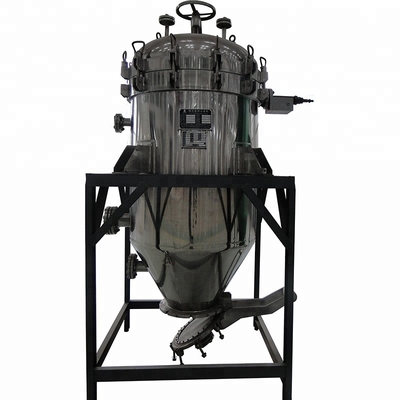

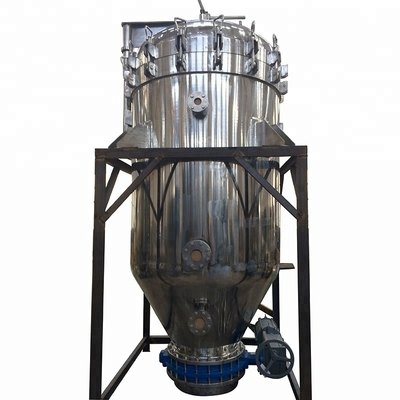

Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H 0 Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H 1
Technical Specifications
Model Filtration Area (㎡) Filter Cake Volume (L) Treatment Capacity Work Pressure (Mpa) Work Temperature (℃) Machine Volume (L)
NYB-2 2 30 0.4-0.6 0.1-0.4 ≤150 120
NYB-4 4 60 0.5-1.2 0.5 ≤150 250
NYB-7 7 105 1-1.8 0.5 ≤150 420
NYB-10 10 150 1.6-3 0.5 ≤150 800
NYB-12 12 240 2-4 0.5 ≤150 1000
NYB-15 15 300 3-5 0.5 ≤150 1300
Main Features
  • No cloth or filter paper required, significantly reducing filtration costs
  • Fully closed operation is environmentally friendly with no material loss
  • Vibration residue falling reduces labor intensity and enables continuous operation
  • Residue discharging through pneumatic valve reduces worker labor intensity
  • Can completely replace plate and frame filters - a revolutionary device in the filter industry

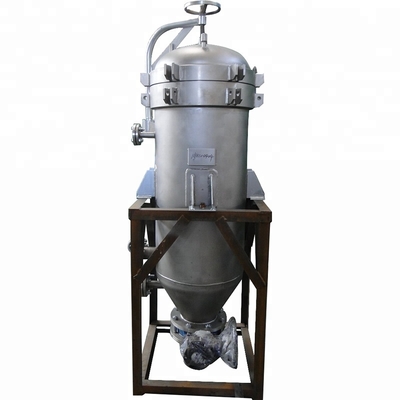

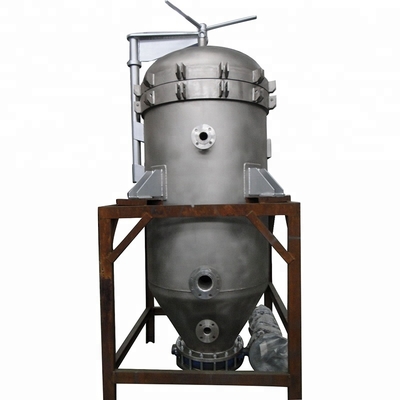

Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H 2 Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 2-4T/H 3

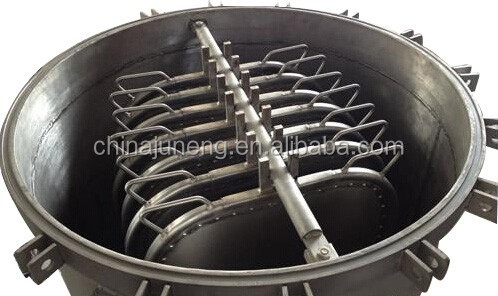

Filter Leaf Specifications (NYB-12 Example)
  • 11 filter leaves provide 12 sqm filtration area
  • Leaves made with heavy box channel 1.8mm 316L material
  • Topside of leaf with reinforcement and one vibrator fork per leaf (SS 316 material)
  • Leaf bottom with outlet nozzle featuring "O"ring seal (SS 316 nozzle with Viton rubber "O"ring)
Butterfly Valve (NYB-12 Example)
  • DN 400 butterfly valve WAFER TYPE for dry cake discharge
  • 1st quality butterfly valve with NH-S seat material (up to 150°C high temp)
  • Includes pneumatic actuator (double acting type) with 5.5 Bar air supply
Packaging & Delivery
Size 123 (L) × 456 (W) × 789 (D) cm
Weight 1.2 Tons
Packaging Details Standard wooden box packaging. European shipments include fumigated wooden boxes. Alternative packaging available for tight containers or special requests.
Our Services
Pre-Sales Service:
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing available
After-Sales Service:
  • Installation and operation training
  • Overseas engineer support available
About Juneng Group
Juneng Machinery (China) Co., Ltd., established in 2006, is a professional manufacturer of filters, separators, decanter centrifuges and pumps. With four factories located in Nanjing and Yixing City, we are dedicated to strict quality control and thoughtful customer service.
Our company holds CE certificates, ASME U certificate and ISO 9001 certificate. Our products sell well throughout China and are exported to USA, Germany, Korea, Japan, and many other countries.
