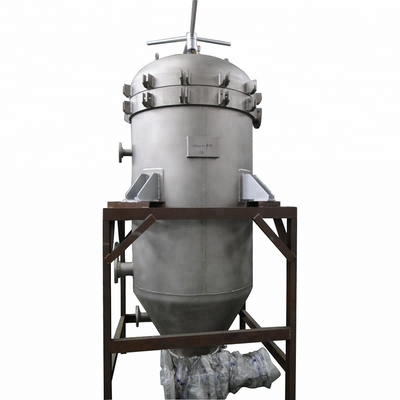

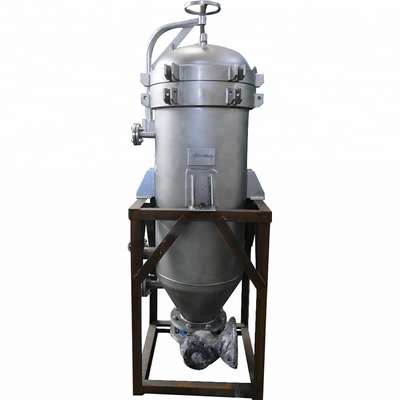

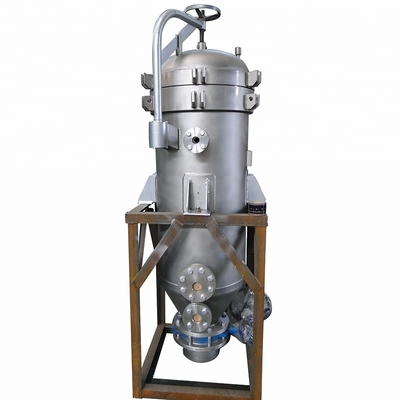

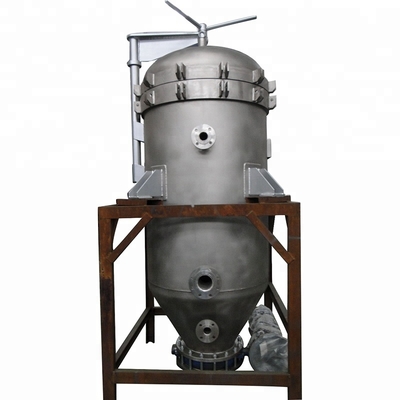

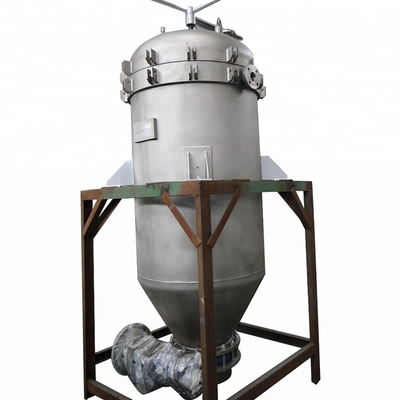

Semi-Automatic Oil Bleaching Pressure Leaf Filter 12m2 Filtration Area

The NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

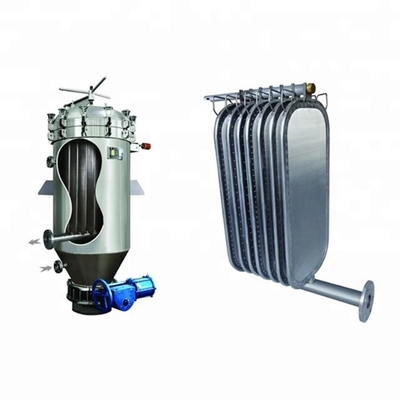

The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe for convenient dismantling and cleaning.

• No cloth or filter paper required, significantly reducing filtration costs
• Fully enclosed operation is environmentally friendly with no material loss
• Vibration residue removal reduces labor intensity and enables continuous operation
• Pneumatic valve residue discharge minimizes worker labor intensity
• Can completely replace plate and frame filters with activated carbon or bleaching filtration

• 11 filter leaves provide 12 sqm filtration area
• Leaves constructed with 1.8mm 316L material heavy box channel
• Topside reinforcement with one vibrator fork per leaf (SS 316 material)
• Bottom outlet nozzle with Viton rubber "O"ring seal

• DN 400 butterfly valve (WAFER TYPE) for dry cake discharge
• High quality butterfly valve with NH-S seat material (up to 150°C)
• Includes pneumatic actuator (double acting type) with 5.5 Bar air supply

About Juneng Group

Juneng Machinery (China) Co., Ltd., established in 2006, is a professional manufacturer of filters, separators, decanter centrifuges and pumps. With four factories located in Nanjing and Yixing City, we hold CE certificates, ASME U certificate and ISO 9001 certification.

Our products are sold throughout China and exported to USA, Germany, Korea, Japan, and other countries. We welcome OEM and ODM orders, with customer service available to discuss your specific requirements.

Quality Assurance

• Factory audit available prior to purchase
• Material inspection during manufacturing process
• Strict compliance with technical requirements
