Product Details:
|
Weight: | 1000 Kg | Filtration Area: | 2-70 ㎡ |
---|---|---|---|
Filter Cake Volume: | 30-1400 L | Work Pressure: | 0.1-0.4 Mpa |
Max Pressure: | 0.5 Mpa | Work Temperature: | ≤150 ℃ |
Machine Volume: | 120-7200 L | Treatment Capacity Oil: | 0.4-19 M³/h |
Treatment Capacity Resin: | 1-68 M³/h | Treatment Capacity Beverage: | 0.1-78 M³/h |
Package Size: | 123*456*789 Cm | Package Weight: | 1.2 T |
Material: | Stainless Steel | Operation Type: | Fully Closed |
Residue Discharge: | Pneumatic Valve | ||
Highlight: | vertical pressure leaf filter 1000kg,oil industry pressure leaf filter,pressure leaf filter with warranty |
Attribute | Value |
---|---|
Condition | New |
Weight (kg) | 1000 |
Warranty | 1 Year |

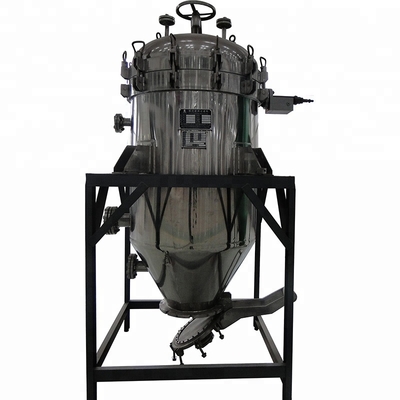

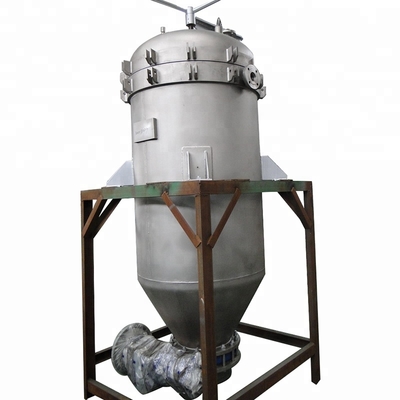

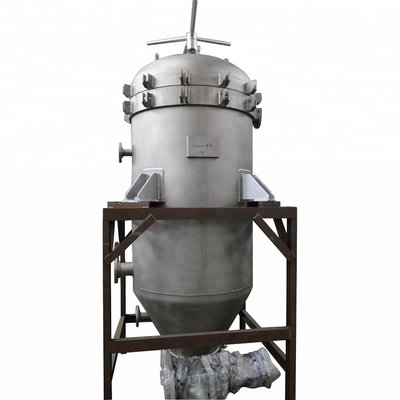

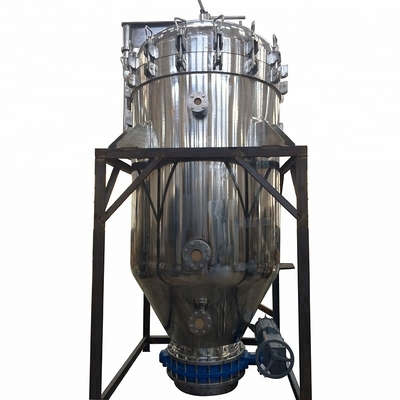

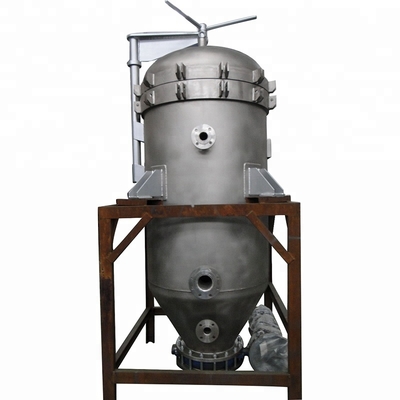

NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

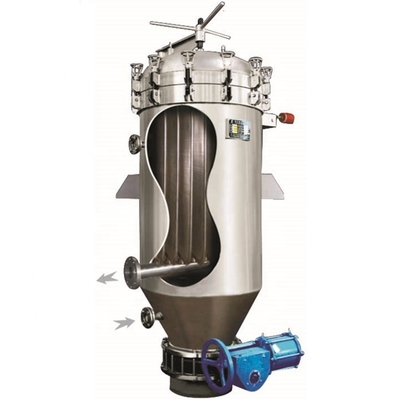

The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, so it can be dismantled for cleaning very conveniently.
Model | Filtration area (㎡) | Filter cake volume (L) | Treatment Capacity | Work Pressure (Mpa) | Work temperature (℃) | Machine volume (L) | ||
---|---|---|---|---|---|---|---|---|
Oil | Resin | Beverage | Rated pressure | Max pressure | ||||
NYB-2 | 2 | 30 | 0.4-0.6 | 1-1.5 | 0.1-0.4 | 0.5 | ≤150 | 120 |
NYB-4 | 4 | 60 | 0.5-1.2 | 2-3 | 2-5 | 0.5 | ≤150 | 250 |
NYB-7 | 7 | 105 | 1-1.8 | 3-6 | 4-7 | 0.5 | ≤150 | 420 |
NYB-10 | 10 | 150 | 1.6-3 | 5-8 | 6-9 | 0.5 | ≤150 | 800 |
NYB-12 | 12 | 240 | 2-4 | 6-9 | 8-11 | 0.5 | ≤150 | 1000 |
NYB-15 | 15 | 300 | 3-5 | 7-12 | 10-13 | 0.5 | ≤150 | 1300 |
NYB-20 | 20 | 400 | 4-6 | 9-15 | 12-17 | 0.5 | ≤150 | 1680 |
NYB-25 | 25 | 500 | 5-7 | 12-19 | 16-21 | 0.5 | ≤150 | 1900 |
NYB-30 | 30 | 600 | 6-8 | 14-23 | 19-25 | 0.5 | ≤150 | 2300 |
NYB-36 | 36 | 720 | 7-9 | 16-27 | 23-31 | 0.5 | ≤150 | 2650 |
NYB-40 | 40 | 800 | 8-11 | 21-34 | 30-38 | 0.5 | ≤150 | 2900 |
NYB-45 | 45 | 900 | 9-13 | 24-34 | 36-44 | 0.5 | ≤150 | 3200 |
NYB-52 | 52 | 1040 | 10-15 | 27-45 | 42-51 | 0.5 | ≤150 | 3800 |
NYB-60 | 60 | 1200 | 11-17 | 30-52 | 48-60 | 0.5 | ≤150 | 4500 |
NYB-70 | 70 | 1400 | 12-19 | 36-60 | 56-68 | 0.5 | ≤150 | 5800 |
NYB-80 | 80 | 1600 | 13-21 | 40-68 | 64-78 | 0.5 | ≤150 | 7200 |
Packaging Details |
---|
Size: 123 (L) * 456 (W) * 789 (D) Weight: 1.2 T The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated. If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
