Energy Saving Vertical Metal Leaf Filter , Horizontal Plate Pressure Filter

Energy Saving Vertical Metal Leaf Filter , Horizontal Plate Pressure Filter

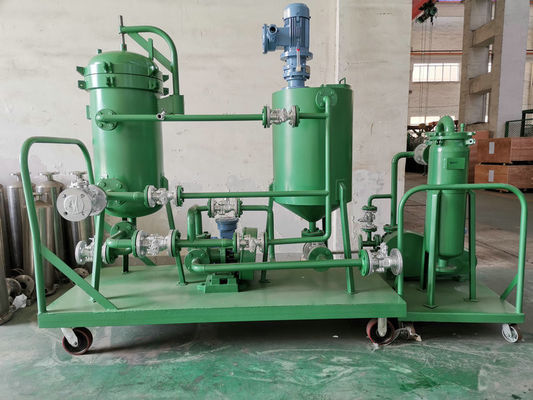

Energy Saving Vertical Metal Leaf Filter , Horizontal Plate Pressure Filter Energy Saving Vertical Metal Leaf Filter , Horizontal Plate Pressure Filter

Large Image :  Energy Saving Vertical Metal Leaf Filter , Horizontal Plate Pressure Filter

Product Details:
Place of Origin: China(Yixing, Jiangsu)
Brand Name: Juneng Machinery
Certification: CE、 ASME U、ISO9001
Model Number: NYB
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard Wooden Case
Delivery Time: 10-30 days
Payment Terms: TT
Supply Ability: 40 set / months

Energy Saving Vertical Metal Leaf Filter , Horizontal Plate Pressure Filter

Description
Material: Vertical Metal Leaf Filter Warrenty: 12 Months
Feature: Energy Saving Applicate: Chemicals
Weight: 300-6500 Kg Work Pressure: 0.4 MPa
High Light:

vertical metal leaf filter

,

horizontal plate pressure filter

Energy Saving Vertical Metal Leaf Filter , Horizontal Plate Pressure Filter​


Vertical Metal Leaf Filter description:

NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.
The filter is composed of shell, filtration plate, cover, and automatic dump device.
Among them, the filtration plate is made of many layers of stainless steel filtration
materials, and they re installed on the central liquid collection pipe,
so it can be dismantled for cleaning very conveniently.

Vertical Metal Leaf Filter Application:

Oil industry: crude oil, bleached oil, hydrided oil, radonized oil, stearin, fatty acid, etc.
Petrochemical products: diesel oil, lubricating oil, paraffin and mineral moil products
Organic chemical products: various organic acid, ester, benzene and aldehyde
Oil paint: resin, varnish, dye and lacquer


 Vertical Metal Leaf Filter advantage:

Since this equipment has many advantages such as unique structure, compact volume, highfilter efficiency, fineness of filtered liquor, no material wastage, without consumption of filter paper, filter cloth. It’s only consuming small quantity of filter aid. It can be conveniently maintained, cleaned and operated at very low cost.


Introduction of Company:

Juneng Group employs a team of well-trained professional, adopts advance EPR production management model in cooperation with state–of–the–art apparatus and process i.e. CNC Turner, Machine Center, Highly Accuracy Test Instrumentation, Quality and Process Control System to ensure quality, stability, and reliability of every product.

Energy Saving Vertical Metal Leaf Filter , Horizontal Plate Pressure Filter 0


Product Specifications:

Energy Saving Vertical Metal Leaf Filter , Horizontal Plate Pressure Filter 1

Outline form & assembly size :

Model Shell diameter Space between filter leaf Inlet/outlet caliber Overflow port Discharge port Height Floor Spare
NYB-2 ∅400 50 DN25 DN25 DN150 1550 620×600
NYB-4 ∅500 50 DN40 DN25 DN200 1800 770×740
NYB-7 ∅600 50 DN40 DN25 DN250 2200 1310×1000
NYB-10 ∅800 70 DN50 DN25 DN300 2400 1510×1060
NYB-12 ∅900 70 DN50 DN40 DN400 2500 1610×1250
NYB-15 ∅1000 70 DN50 DN40 DN400 2650 1710×1350
NYB-20 ∅1000 70 DN50 DN40 DN400 2950 1710×1350
NYB-25 ∅1100 70 DN50 DN40 DN500 3020 1810×1430
NYB-30 ∅1200 70 DN50 DN40 DN500 3150 2030×1550
NYB-36 ∅1200 70 DN65 DN50 DN500 3250 2030×1550
NYB-40 ∅1300 70 DN65 DN50 DN600 3350 2130×1560
NYB-45 ∅1300 70 DN65 DN50 DN600 3550 2130×1560
NYB-52 ∅1400 75 DN80 DN50 DN600 3670 2230×1650
NYB-60 ∅1500 75 DN80 DN50 DN600 3810 2310×1750
NYB-70 ∅1600 80 DN80 DN50 DN600 4500 3050×1950
NYB-80 ∅1750 80 DN80 DN50 DN600 4500 3210×2100
NYB-90 ∅1850 80 DN80 DN50 DN600 4650 3300×2200
