Product Details:
|
| Other Name: | Horizontal Plate Type Filter | Area: | 100㎡ |
|---|---|---|---|
| Work Pressure: | 0.4 MPa | Work Temperature: | 150 ℃ |
| Feature: | No Pollution,no Leakage | Application: | Pharmacy, Chemicals,foodstuff And Petroleum |
| High Light: | plate type filter,horizontal plate filter |
||

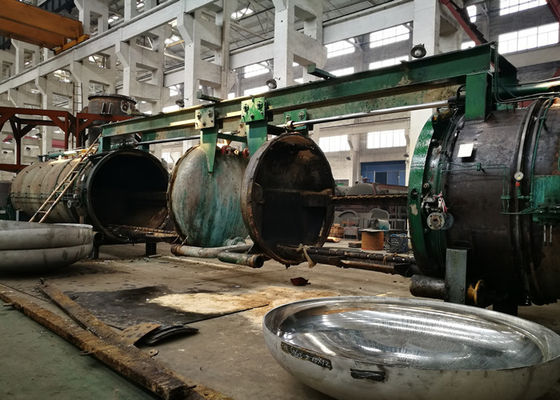

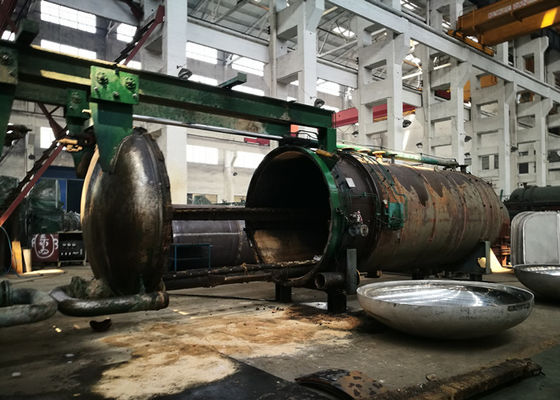

0.4Mpa stainless horizontal pressure leaf filter / oil refining capacity 0.2 T/H·㎡
Product Specifications:
| Area series ( ㎡) | Shell diameter series ( mm) | Work pressure ( Mpa) | Work temperature (℃) |
Proximate treatment capacity (T/H·㎡) |
|
| 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100, 120, 140, 160, 180, 200 |
900, 1200, 1400, 1500, 1600, 1700, 1800, 2000 |
0.4 | 150 | Oil | 0.2 |
| Beverage | 0.8 | ||||
Product description:
This product is of novel design, the main body of filter consists of filtration tank, screen, end-plate pullout device, automatic dreg discharging device, etc. During filtering, the filter aid is mixed up with material in the mixing cylinder then transmitted by pump onto the filter screen to form a filter cake layer.
Once the stable filter cake is realized, the minute filter aid particles provide countless micro passages, which entrap the suspended impurity and let the clear liquid through. Therefore the real filtration is realized through the cake layer.
In case that the filter cake over the surface of filter screen reaches certain thickness, the feeding shall be stopped, and compressed air or steam shall be employed to blow dry the cake, and clean the filter screen the discharge ,
the vibration dreg discharging device shall be switched on, the dregs shall be unloaded because of weight and vibration. As to sticky filter cake, manual help shall be provided to clean up the dregs.
Application:
Food industry : Syrups, edible oils, dewaxing , decolour, degrease
Dry, semidry cake and clean filtrate recovery.
Product competitive advantage:
1, Fully hermetic filter , no leakage, no pollution.
2, Filtering gauze flakes can be pulled out automatically, and easy to be inspected and cleaned.
3, Automatically residue discharging by which labor can be largely reduced.
4, A large filtration area and large solids holding capacity can be obtained .
QC/Technical Support
1, Every company deeply understand that quality is the basic weapon for an enterprise to win. Quality is one of the factor that helped the business to achieve success, so we strive to provide qualitative business.
2, Our Quality Control department is comprised of experienced engineers, technicians and QC inspectors. The best products from the high reputation company and will do better than any other company.
