Product Details:
|
Product Alias: | Vertical Plate Pressure Filter | Operation: | Batch Working |
---|---|---|---|
Material: | Carbon Steel With Paint | Filtration Area: | 2 M2-110 M2 |
Function: | Clarified | Structure: | Vertical Plate Filter |
Color: | Customised | Design Pressure: | 4bar - 10 Bar |
Highlight: | horizontal plate pressure filter,vertical plate filter |

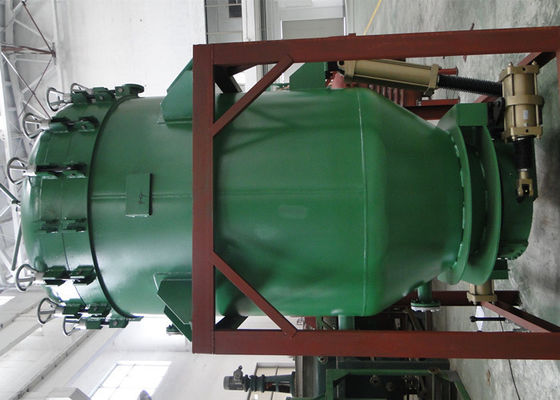

Automatic Discharge Pressure Vertical Leaf Filter Press Equipment High Efficiency
Production Description
The Filter is composed of shell, filtration plate , cover, and automatic vibration device. Amont them, the filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe.
So it can be dismantled for cleaning very conveniently.
Working principle
The main body of the filter is made up of vessel, filter screen, lifting structure and automatic discharging device. Filterscree are made by material of multilyer stainess steel which installed at the center collection pipe and cleaned up conveniently .
In the process of filtration, the unfiltered liquid with filter aid come into the body through transmission system. After a stable filter cake formed on the filter gauze flakes, the filtrate are filtered through the micropores of filter cake
Filter model list
Model | Filtration area | Filter cake volume | Treatment capacity |
Work Pressure |
Work temperature |
Machine volume | Machine weight |
NYB-2 | 2 | 30 | 500-1000 L/H | 0.1-0.4 Mpa | ≤150℃ | 120 L | 300 kg |
NYB-4 | 4 | 60 | 600-1200L/H | 0.1-0.4Mpa | ≤150℃ | 250L | 400kg |
NYB-7 | 7 | 105 | 1000-1800L/H | 0.1-0.4Mpa | ≤150℃ | 420 L | 600 kg |
NYB-10 | 10 | 150 | 1600-3000L/H | 0.1-0.4Mpa | ≤150℃ | 800L | 900 kg |
Application of High Efficiency Plate Type Leaf filter:
1. Oil industry :Crude oil, bleached oil, hydrided oil, radonized oil, stearin, fatty acid, etc.
2. Petroleum chemical products: diesel oil, lubricating oil, paraffin wax, mineral oil, etc.
3. Beverage: Beer, Juice, Wine, Milk, etc.
4. Organic chemical prodccts:various organic aid, alcohol, benzene, aldehyde, etc.
5. Paint: Resin, vanish, dye, lacquer,etc.
6. Inorganic chemical products : bromine water, potassim cyanide, fluorite, etc.
7. Foodstuff: gelatin, vinegar, starch, syrup, sugar water, etc.
8. Pharmaceutical products: Hydrogen peroxide solution, vitamin, etc.
9. Mineral products: fine coal, cinder, etc.
10 Others; air, depuration of water, etc.
Production Factory
Juneng Group is a large scale manufacturer of industrial products in China. This group principally engaged with the in-house research & development as well as manufacturing of various industrial filters, separators , centrifuges and pumps.
The Company is proud to be the leader in such industry with approximately 90% domestic market share in Oils & Fats industry, Chemical industry, Pharmaceutical industry, Beverage industry, Petrol-chemical industry, and now is one of the well-known producers and suppliers in World .
The Company now has its three production bases with a total capacity of 280,000 square meters in Nanjing city and Yixing City , permanent workforces not less than 1500 people and the production line is well equipped with more than 2000 inits of advanced production equipment and test Instrumentation .
Our service
During selection process :
1. Professional Engineer wil recommend you the most suitable model according to your requirement.
2. Supply reference process flow chart .
3. Supply on-site installation and operation test
4. Integration for control system and process
5. Customized size and structure
After service :
1. Months guarantee period from machine arriving date.
2. Sufficient spare parts in stock are available .
3. Technicians are availabled for overseas service.
4. 24 hours technical consultation .
5. The customer could get trained by our experienced tecnician.
6. Routine tracing will be done timely.
7. Guide you do the normal maintenance.
8. Suggestions and any comments &reflection from customer would be treated in priority.
9. Markting team will visiting if you need.
FAQ:
1 ) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.
If you come from domestic city, air or train directly to Wuxi station. We will pick you up at railway station.
2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 30 years experience , strict operation policy is performed, advanced processing machines guarangtee the precision of all components,
workers with operation license, parts get multiprocessing, transmission& electrical parts are of international famous brand.
Series of test and inspection are done in the whole producing state.
3) Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .
4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .
5) Q: I haven ' t done business with you company before, how can I trust your company ?
A: Our company has been in Alibaba.com for 10 years, which is longer than most of our fellow suppliers, we have been golden suppliers for years.
What ' s more, we have got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate.
I hope those above will be persuasive enough. Our Trade Assurance Limit is US$ 42,000,and it will still going up.
6) Q: What ' s the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.
7) Q: Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time.
