Product Details:
|
| Product Alias: | Multifunction Filter Machine | Material Of Filter Screen: | Hastelloy Stainless Steel Sintering Net |
|---|---|---|---|
| Operate Material: | Large Soild Content | Operate Condition: | Fully Enclosed |
| Work Pressure: | -0.1-0.3 MPa | Application: | Petroleum Industries |
| High Light: | Agitated Nutsche Filter Dryer Automatic Control,Multifunction Agitated Nutsche Filter Dryer,Petroleum Agitated Nutsche Filter Dryer |
||

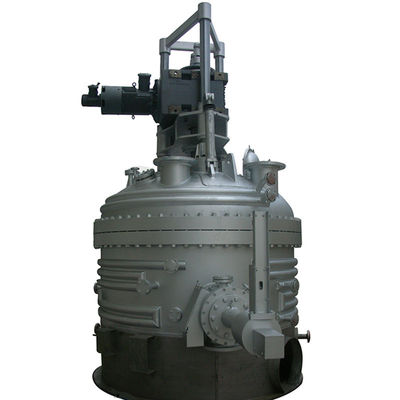

Automatic Control High Efficiency Agitated Nutsche Filter Dryer
System description
GXG series multifunctional filter contains filtering, washing and automatically discharging solids into one. It is suitable for “industrial grade” pharmaceuticals and chemical manufacture.
The filter is entirety welded, it filtering closed completely and has no leakage. It consists of mixing system, filtering system, heating and keeping, discharging system and hydraulic lift system. The filter is safe, steady and reliable.
The tank cylinder wall and bottom use a coil pipe which can heat the tank and ensure filtering temperature.
The hydraulic system control the mixing system up and down and it has a mixing propeller which can rotate in the positive and negative direction.
It has the side bleeder valve controlled by hydraulic system.
The filter medium use 5 tiers of hastelloy sintering net.
Product competitive advantage:
1, Discharge valve can discharge automatically which can lower labor intensity.
2, Especially suitable for the material that large solid content, and recovering liquid phase and solid phase respectively.
3, Adopting horizontal placing filter material, one time completely filtering no remains. Filter material has unique sealing structure which is easy to be changed.
4, Anticorrosion three in one system is made of special material which can be suitable for multiform anticorrosion medium.
5, Stirring, mixing , beating , reacting, washing and multiform process working can be practiced in the body and it can carry out full automatic control.
Product Specifications:
| Model | Filtration area ㎡ | Shell diameter (mm) |
Work pressure (Mpa) |
Nominal volume (m3) |
Filter cake height (mm) |
| GXG-600 | 0.28 | 600 | -0.1~0.3 | 0.2 | 150 |
| GXG-800 | 0.5 | 800 | -0.1~0.3 | 0.5 | 180 |
| GXG-1200 | 1.1 | 1200 | -0.1~0.3 | 1.3 | 250 |
| GXG-1600 | 2.0 | 1600 | -0.1~0.3 | 2.8 | 350 |
| GXG-2000 | 3.1 | 2000 | -0.1~0.3 | 4.8 | 400 |
| GXG-2400 | 4.5 | 2400 | -0.1~0.3 | 6.5 | 450 |
| GXG-2600 | 5.3 | 2600 | -0.1~0.3 | 8.7 | 450 |
| GXG-2800 | 6.0 | 2800 | -0.1~0.3 | 12 | 450 |
| GXG-3000 | 7 | 3000 | -0.1~0.3 | 13 | 500 |
| GXG-3200 | 8 | 3200 | -0.1~0.3 | 14.5 | 500 |
Application:
It is widely used in fine chemical, petroleum, foodstuff, printing, pharmaceutical industries, Glyphosate, Penicillin and so on.
Product description:
GXG series multi-functions filtering, washing , drying (three in one ) machine is a solid-liquid equipment with the functions of filtration, washing, drying reaction and residue discharging automatically.
