Multi Functions Agitated Nutsche Filter Dryer Filtering / Washing / Drying Machine

Multi Functions Agitated Nutsche Filter Dryer Filtering / Washing / Drying Machine
Multi Functions Agitated Nutsche Filter Dryer Filtering / Washing / Drying Machine Multi Functions Agitated Nutsche Filter Dryer Filtering / Washing / Drying Machine

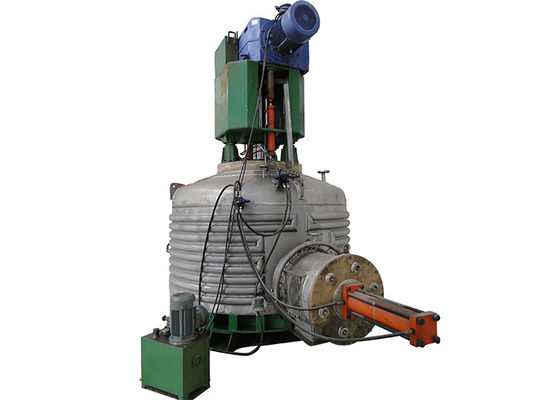

Large Image :  Multi Functions Agitated Nutsche Filter Dryer Filtering / Washing / Drying Machine

Product Details:
Place of Origin: China(Yixing, Jiangsu)
Brand Name: Juneng Machinery
Certification: CE、ISO9001
Model Number: GXG
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: $ 20,000-200,000 / set
Packaging Details: Standard Wooden Case
Delivery Time: 60 days
Payment Terms: TT
Supply Ability: 40 set / months

Multi Functions Agitated Nutsche Filter Dryer Filtering / Washing / Drying Machine

Description
Product Alias: Agitated Filter Dryer Operate Condition: Fully Enclosed Filter, No Leakage, No Pollution
Operate Material: Large Soild Content Work Pressure: -0.1-0.3 MPa
Application: Printing, Petroleum, Pharmaceutical Industries Warrenty: 12 Months
High Light:

pressure nutsche filter

,

agitated nutsche filter and dryer



Agitated Nutsche Filter and Dryer Multi-functions / Filtering / Washing / Drying Machine ​



Product description:

GXG series three in one machine is a solid-liquid separation equipment with various functions such as filtration, washing, drying reaction and residue discharging automatically.


Product Specifications:

Model Filtration area ㎡ Shell
diameter (mm)
Work
pressure (Mpa)
Nominal
volume (m3)
Filter cake
height (mm)
GXG-600 0.28 600 -0.1~0.3 0.2 150
GXG-800 0.5 800 -0.1~0.3 0.5 180
GXG-1200 1.1 1200 -0.1~0.3 1.3 250
GXG-1600 2.0 1600 -0.1~0.3 2.8 350
GXG-2000 3.1 2000 -0.1~0.3 4.8 400
GXG-2400 4.5 2400 -0.1~0.3 6.5 450
GXG-2600 5.3 2600 -0.1~0.3 8.7 450



Application:

It is widely used in fine chemical, petroleum, foodstuff, printing, pharmaceutical industries, Glyphosate, Penicillin and so on.


Product competitive advantage:

1. Stirring, mixing , beating , reacting, washing and multiform process working can be practiced in the body and it can carry out full automatic control.
2. Discharge valve can discharge automatically which can lower labor intensity.

3. Anticorrosion three in one system is made of special material which can be suitable for multiform anticorrosion medium.

4. Especially suitable for the material that large solid content, and recovering liquid phase and solid phase respectively.

5. Adopting horizontal placing filter material, one time completely filtering no  remains. Filter material has unique sealing structure which is easy to be changed.
