Product Details:
|
Other Name: | Waste Oil Centrifuge Separator | Material: | Stainless Steel |
---|---|---|---|
Color: | Green | Feature: | Continuous Operate |
Function: | Separate Oil - Water - Solid | Warrenty: | 12 Months |
Highlight: | centrifugal solid liquid separator,marine oil water separator |

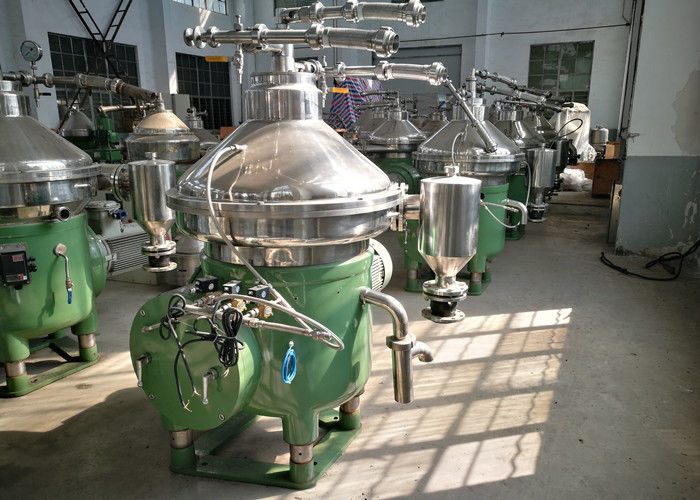

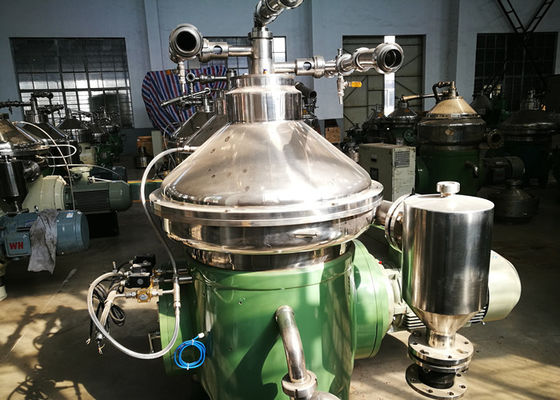

Stable Operation Three-phase Centrifuge Oil Water Separators for Illegal Cooking Oil
Product description:
Huge amount of kitchen waste oil or illegal cooking oil ( commonly known as slops, swill, pigwash) can be treated and obtain biogas, biodiesel, organic fertilizer, high-protein feed and other products.
However, the mature technical is needed to support the oil-water-solid separation in this treatment processing.
Our technical engineers with their advanced design concept have been researched and developed the new special disk separator based on its hard separation feature of kitchen waste oil or illegal, and make the separation efficiency reaches to the extreme and super conditions.
Application:
Kitchen waste oil or illegal cooking oil
Such as slops, swill, pigwash
Product Specifications:
Model | Treatment capacity (L/H) | Inlet Pressure (Mpa) | Outlet pressure (Mpa) | Motor power (Kw) | Weight (Kg) | Outline dimension (mm) |
DHFY211 | 2000-5000 | 0.05 | 0.1-0.3 | 15 | 1880 | 1800*1200*1800 |
DHFY214 | 4000-10000 | 0.05 | 0.1-0.3 | 22 | 2200 | 1850*1550*2050 |
Product competitive advantage:
1, There are stationary centripetal pumps for heavy phase and light phase output. Separated heavy phase and light phase are outputted respectively by the large and small centripetal pumps which on the top of the drum respectively.
2, This series of separator outfits various specific gravity rings with different diameter, which can be used according to the density and volume of the materials.
