Product Details:
|
| Other Name: | Used Cooking Oil Recovery Separator | Material: | Stainless Steel |
|---|---|---|---|
| Color: | As Customer's Demands | Feature: | Continuous Operate |
| Function: | Separate Oil - Water - Solid | Warrenty: | 12 Months After Arriving The Site |
| Highlight: | fuel oil water separator,marine oil water separator |
||

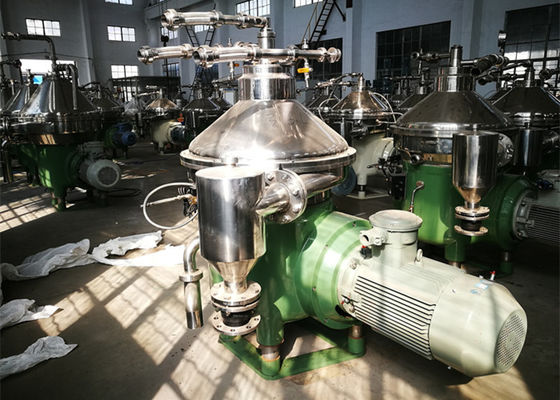

Special Design Three-phase Centrifuge Oil Water Separators for Illegal Cooking Oil
Product description:
DHFY separator is the equipment which special for oil refining that is of high speed, stable, hermetic, efficient and fully automated. All parts & components contacting materials are made of stainless steel, can effectively minimize chemical reaction between the materials to be separated and part surface contacted. The separated light and heavy phase materials will be output by two centripetal pumps of different sizes. This machine is fed upper, so it has very low inlet pressure for materials. The driving of the separator employs hydraulic coupler and a pair of helical step-up gears, power is transmitted by liquid, so it can step up steadily and have overload protection.
Application:
Kitchen waste oil or illegal cooking oil
Such as slops, swill, pigwash
Product competitive advantage:
1, There are stationary centripetal pumps for heavy phase and light phase output. Separated heavy phase and light phase are outputted respectively by the large and small centripetal pumps which on the top of the drum respectively.
2, This series of separator outfits various specific gravity rings with different diameter, which can be used according to the density and volume of the materials.
Product Specifications:
| Model | Treatment capacity (L/H) | Inlet Pressure (Mpa) | Outlet pressure (Mpa) | Motor power (Kw) | Weight (Kg) | Outline dimension (mm) |
| DHFY211 | 2000-5000 | 0.05 | 0.1-0.3 | 15 | 1880 | 1800*1200*1800 |
| DHFY214 | 4000-10000 | 0.05 | 0.1-0.3 | 22 | 2200 | 1850*1550*2050 |
After service :
1. Months guarantee period from machine arriving date.
2. Sufficient spare parts in stock are available .
3. Technicians are availabled for overseas service.
