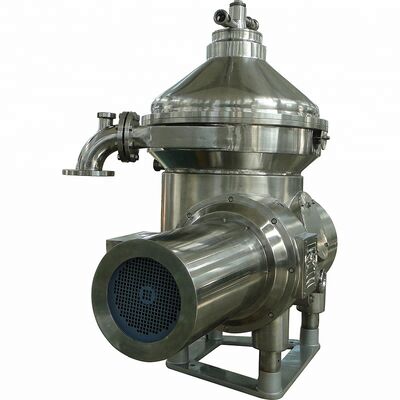

Wine Drum Separator Centrifuge for Food Industry
Automatic milk separator machine for centrifugal milk cream separation with advanced features for the modern dairy industry.
Separator Application
As living standards improve, the dairy and beverage consumer market continues to expand, with consumers shifting from simply "drinking milk" to demanding "high-quality milk." Advanced equipment is crucial in the production process. Juneng's centrifugal separator features specially designed centripetal pumps and inlet/outlet ports that create a gentle separation environment, preserving active ingredients and maintaining nutritional value, freshness, and original flavor.
The milk cream separator is primarily used in milk processing to continuously separate cream and defatted milk from pure milk while removing impurities and sediments. It also enables milk standardization based on fat content.
Juneng separators can remove extremely small solid particles (as small as 1mm) dispersed in suspensions from the liquid phase.
DHN Model - Dairy Clarification
| Model |
Capacity (L/H) |
Inlet Pressure |
Outlet Pressure |
Weight |
Dimension (mm) |
| DHN360 |
2000-5000 |
0.05 Mpa |
0.1-0.35 Mpa |
1200 kg |
1530×1150×1500 |
| DHN470 |
5000-10000 |
0.05 Mpa |
0.1-0.4 Mpa |
1600 kg |
1800×1200×1750 |
| DHN550 |
10000-20000 |
0.05 Mpa |
0.1-0.4 Mpa |
2300 kg |
1950×1550×1960 |
| DHN616 |
25000-35000 |
0.1 Mpa |
0.3 Mpa |
3000 kg |
2185×1728×2082 |
DHNZ Model - Dairy Skimming
| Model |
Capacity (L/H) |
Inlet Pressure |
Outlet Pressure |
Weight |
Dimension |
| DHNZ204 |
500-1000 |
0.05 Mpa |
0.1-0.2 Mpa |
520 kg |
810×850×1350 |
| DHNZ360 |
1000-3000 |
0.05 Mpa |
0.1-0.2 Mpa |
1200 kg |
1530×1150×1500 |
| DHNZ470 |
3000-7000 |
0.05 Mpa |
0.1-0.2 Mpa |
1600 kg |
1800×1200×2030 |
| DHNZ550 |
5000-10000 |
0.05 Mpa |
0.1-0.2 Mpa |
2300 kg |
1950×1550×1960 |
Two-Phase Separation for Dairy Clarification
Clarification involves two-phase separation. Materials are fed into the machine's bowl, where strong centrifugal force removes impurities from raw material to produce clean milk.
Three-Phase Separation for Dairy Skimming
The disc separator is specially designed for two-phase and three-phase separation. Two-phase separation separates suspended solids from liquid or separates two immiscible liquids with different specific gravities. Three-phase separation simultaneously separates two immiscible liquid phases and a solid phase.
Separator Advantages
- Continuous feeding
- High separation factor
- Automatic residue discharging
- CIP (Clean-in-Place) capability
- Hydraulic coupling driving with longer service life
- PLC system automatic control
- Excellent milk skimming performance
- High efficiency operation
- Lower energy consumption
- Soft feeding and discharging through optimized inlet and outlet design
Separator Applications
- Hot milk separation
- Cold milk separation
- Whey protein separation
- Buttermilk separation
- Dairy whey clarification
- Disinfection of dairy products
- Casein processing
- Syrup clarification
- Vegetable juice clarification
- Tea drinks, coffee, beer and other liquid clarification
Detailed Images
Parts in the Rotating Bowl Drum
All parts and components contacting materials are made of stainless steel, minimizing corrosion and meeting food hygiene requirements.
The separator bowl undergoes precise dynamic balancing for stable operation with minimal vibration and noise.
Vertical and Horizontal Shaft
All parts are manufactured from stainless steel using high-quality machining processes for refining applications.
Material: Super stainless steel
Function: High-speed operation
Assembly: Precision assembly
Speed: 5000-12000 RPM
PLC Control Box
The separator includes an automatic control cabinet with industrial computer and overload protector for high automation, process adaptability, easy adjustment, and reduced operator workload.
Product Equipment
Our company maintains a first-class laboratory for comprehensive analysis including chemical composition, metallographic analysis, spectrum analysis, performance testing, radiographic inspection, magnetic inspection, and ultrasonic inspection. We employ advanced instrumentation and rigorous quality control to ensure every component is stable and reliable.
Packaging & Delivery
| Specification |
Details |
| Size |
1800(L)×1800(W)×1800(H) (varies by model) |
| Weight |
1000kg-3000kg |
| Packaging Details |
Standard packaging is wooden box (Size: L×W×H). For European exports, wooden boxes are fumigated. Alternative packaging options available based on container space or customer requirements. |
