Stainless Steel 304/316 Agitated Nutsche Filter Dryer with 1 Year Warranty and 5 gpm Flow Rate

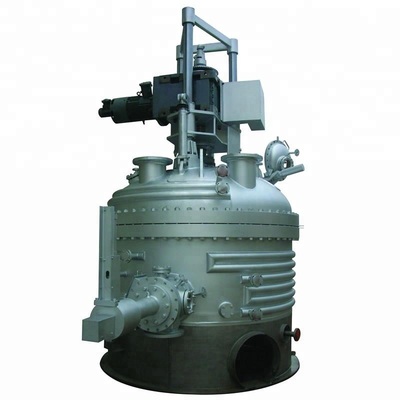

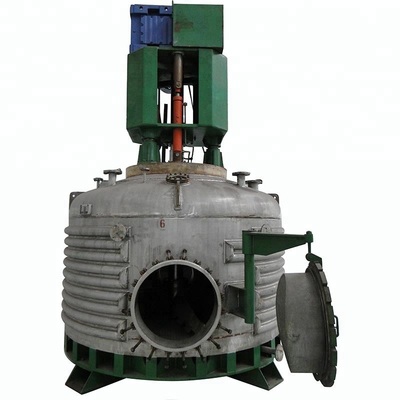

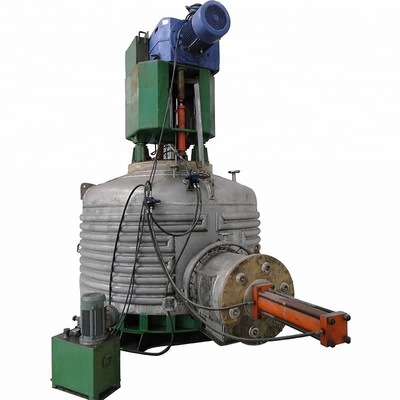

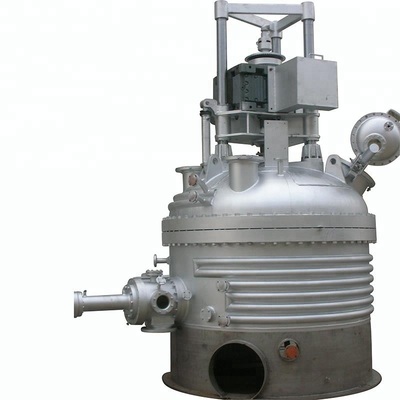

Large Image : Stainless Steel 304/316 Agitated Nutsche Filter Dryer with 1 Year Warranty and 5 gpm Flow Rate

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Juneng

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$56,529-57,979

Contact Now

Stainless Steel 304/316 Agitated Nutsche Filter Dryer with 1 Year Warranty and 5 gpm Flow Rate

Description

Flow Rate:	5 Gpm (18.9 Lpm)	Maximum Pressure:	150 Psi
Particle Size:	3	Weight:	2000 Kg
Material:	Carbon Steel, Stainless Steel 304/316, Hastelloy	Structure:	Vertical Compact Structure
Filtration Area:	0.28 - 8 M2	Shell Diameter:	600 - 3200 Mm
Work Pressure:	-0.1 - 0.3 Mpa	Nominal Volume:	0.2 - 14.5 M3
Filter Cake Height:	150 - 500 Mm	Core Components:	Pressure Vessel
Type:	Liquid Filter	Function:	Separation
Model Range:	GXG-600 To GXG-3200
Highlight:	Stainless Steel 304/316 Agitated Nutsche Filter Dryer , 1 Year Warranty Filter Dryer Machine , 5 gpm Flow Rate ANFD Dryer

Agitated Nutsche Filtration Filter Dryer Machine

GXG series multi-function filtering, washing, drying (three-in-one) machine is a solid-liquid equipment with automated functions including filtration, washing, drying reaction, and residue discharge. Available in two configurations: two-in-one (filtering and washing) or three-in-one (filtering, washing, and drying).

Applications

Widely used in fine chemical, petroleum, food processing, printing, pharmaceutical industries, and specialized applications like Glyphosate and Penicillin production.

Key Advantages

Fully enclosed filtration system prevents leakage and contamination
Efficient solid-liquid separation under pressure or vacuum with uniform filter cake distribution
Stepless speed regulating stirring system maximizes cake space for thorough cleaning and reduced drying time
Automatic discharge valve reduces labor intensity
Ideal for materials with high solid content requiring separate liquid/solid phase recovery
Horizontal filter placement ensures complete one-time filtration with easy-to-change sealing structure
Special corrosion-resistant materials accommodate diverse chemical media
Supports multiple processes including stirring, mixing, beating, reacting, and washing with full automation

Technical Specifications

Model	Filtration area (m²)	Shell diameter (mm)	Work pressure (MPa)	Nominal volume (m³)	Filter cake height (mm)
GXG-600	0.28	600	-0.1~0.3	0.2	150
GXG-800	0.5	800	-0.1~0.3	0.5	180
GXG-1200	1.1	1200	-0.1~0.3	1.3	250
GXG-1600	2.0	1600	-0.1~0.3	2.8	350
GXG-2000	3.1	2000	-0.1~0.3	4.8	400
GXG-2400	4.5	2400	-0.1~0.3	6.5	450
GXG-2600	5.3	2600	-0.1~0.3	8.7	450
GXG-2800	6.0	2800	-0.1~0.3	12	450
GXG-3000	7	3000	-0.1~0.3	13	500
GXG-3200	8	3200	-0.1~0.3	14.5	500
