Agitated Nutsche Filter Dryer with 3 gpm Flow Rate 150 psi Maximum Pressure and 4.5 m2 Filtration Area

Agitated Nutsche Filter Dryer with 3 gpm Flow Rate 150 psi Maximum Pressure and 4.5 m2 Filtration Area
Agitated Nutsche Filter Dryer with 3 gpm Flow Rate 150 psi Maximum Pressure and 4.5 m2 Filtration Area Agitated Nutsche Filter Dryer with 3 gpm Flow Rate 150 psi Maximum Pressure and 4.5 m2 Filtration Area Agitated Nutsche Filter Dryer with 3 gpm Flow Rate 150 psi Maximum Pressure and 4.5 m2 Filtration Area Agitated Nutsche Filter Dryer with 3 gpm Flow Rate 150 psi Maximum Pressure and 4.5 m2 Filtration Area

Large Image :  Agitated Nutsche Filter Dryer with 3 gpm Flow Rate 150 psi Maximum Pressure and 4.5 m2 Filtration Area

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $39,679-40,000
Contact Now

Agitated Nutsche Filter Dryer with 3 gpm Flow Rate 150 psi Maximum Pressure and 4.5 m2 Filtration Area

Description
Flow Rate: 3 Gpm (11.4 Lpm) Maximum Pressure: 150 Psi
Particle Size: 2 Weight: 2200 Kg
Shell Material: Carbon Steel, Stainless Steel 304/316, Hastelloy Filtration Area: 4.5 M2
Filter Cake Height: 450mm Work Pressure: -0.1~0.3 Mpa
Shell Diameter: 2400 Mm Nominal Volume: 6.5 M3
Model: GXG-2400 Function: Filtering, Washing, Drying
Stirring System: Stepless Speed Regulating Discharge Valve: Automatic Discharge
Filter Material: Horizontal Placing
Highlight:

3 gpm Flow Rate Agitated Nutsche Filter Dryer

,

150 psi Maximum Pressure ANFD Dryer

,

4.5 m2 Filtration Area Nutsche Filter Dryer

Agitated Nutsche Filtration Filter Drying Machine
Pressure -0.1~0.3 Mpa Agitated Nutsche Filtration Filtering, Drying Machine

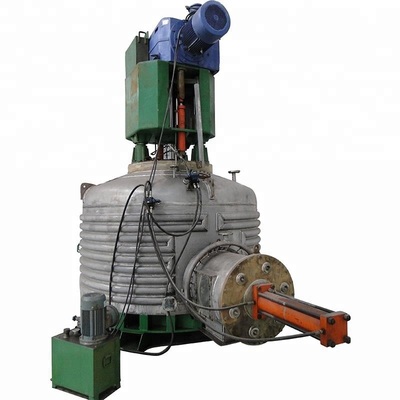

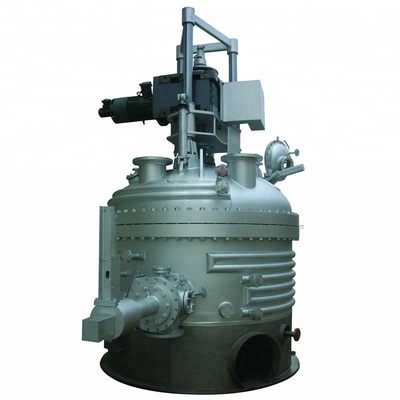

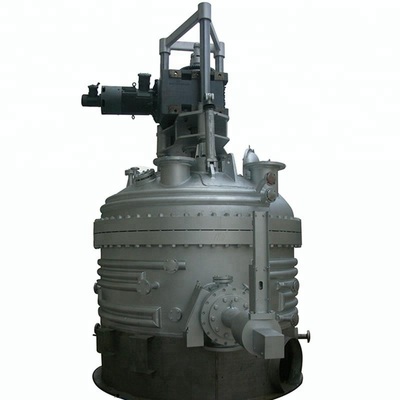

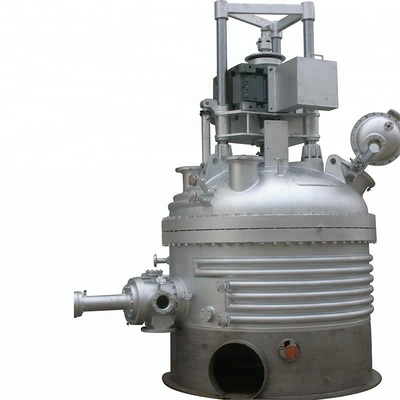

The GXG series multi-function filtering, washing, and drying machine (three-in-one) is an advanced solid-liquid separation equipment that combines filtration, washing, drying, reaction, and automatic residue discharge functions.
Applications
Widely used in fine chemical, petroleum, food processing, printing, pharmaceutical industries, including applications for Glyphosate, Penicillin production, and more.
Key Advantages
  • Fully enclosed filtration system prevents leakage and contamination
  • Solid-liquid separation under pressure or vacuum with evenly distributed filter cakes
  • Stepless speed regulating stirring system maximizes cake space for thorough cleaning and efficient drying
  • Automatic discharge valve reduces labor intensity
  • Ideal for materials with high solid content requiring separate liquid and solid phase recovery
  • Horizontal filter material placement ensures complete one-time filtration with easy-to-change sealing structure
  • Special material construction resists various corrosive media
  • Multi-functional operation including stirring, mixing, beating, reacting, washing with full automatic control
Technical Specifications
Model Filtration area (m²) Shell diameter (mm) Work pressure (MPa) Nominal volume (m³) Filter cake height (mm)
GXG-600 0.28 600 -0.1~0.3 0.2 150
GXG-800 0.5 800 -0.1~0.3 0.5 180
GXG-1200 1.1 1200 -0.1~0.3 1.3 250
GXG-1600 2.0 1600 -0.1~0.3 2.8 350
GXG-2000 3.1 2000 -0.1~0.3 4.8 400
GXG-2400 4.5 2400 -0.1~0.3 6.5 450
GXG-2600 5.3 2600 -0.1~0.3 8.7 450
GXG-2800 6.0 2800 -0.1~0.3 12 450
GXG-3000 7 3000 -0.1~0.3 13 500
GXG-3200 8 3200 -0.1~0.3 14.5 500
Agitated Nutsche Filter Dryer with 3 gpm Flow Rate 150 psi Maximum Pressure and 4.5 m2 Filtration Area 0 Agitated Nutsche Filter Dryer with 3 gpm Flow Rate 150 psi Maximum Pressure and 4.5 m2 Filtration Area 1 Agitated Nutsche Filter Dryer with 3 gpm Flow Rate 150 psi Maximum Pressure and 4.5 m2 Filtration Area 2
