380V 460V CE ISO9001 Certified Agitated Nutsche Filter Dryer for Chemical Applications

Name: 380V 460V CE ISO9001 Certified Agitated Nutsche Filter Dryer for Chemical Applications
Brand: JUNENG MACHINERY (CHINA) CO., LTD.
SKU: GXG
Price: 35,005.00 USD
Availability: InStock

All Products

Disc Oil Separator
(71)

Horizontal Decanter Centrifuge
(52)

Milk And Cream Separator
(50)

Pressure Leaf Filter
(102)

Peeler Centrifuge
(26)

Agitated Nutsche Filter Dryer
(20)

Candle Filter Purification
(11)

Centrifugal Oil Water Separator
(36)

Industrial Oil Separator
(33)

Industrial Bag Filters
(32)

Disc Stack Centrifuge
(40)

Centrifugal Transfer Pump
(20)

Best Products

Multi Functions Agitated Nutsche Filter Dryer Filtering / Washing / Drying Machine

High Durability GXG Series Agitated Nutsche Filter And Dryer , 12 Months Warrenty

Certification

Customer Reviews

Kedua-dua bunyi pemisahan dan getaran adalah ok, berjalan kadar aliran 11㎥ / h

—— Hossain

The equipment is running normally, the flow rate is ok, thank the engineer.

—— Prakash

* The trainer operate the machine.He did a complete maintance. * No Issue * The trainer did a good job.Thanks.

—— Amro Alropshy

이미 확인 된 모든 구분 기호입니다. 아무런 문제가 없습니다.

—— Kim

Масло не проходит через линию промывки, Качество масла не плохое.

—— Alexander

I'm Online Chat Now

380V 460V CE ISO9001 Certified Agitated Nutsche Filter Dryer for Chemical Applications

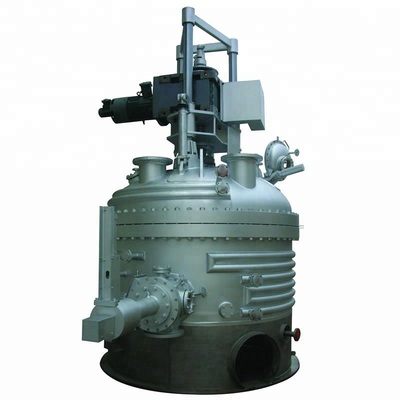

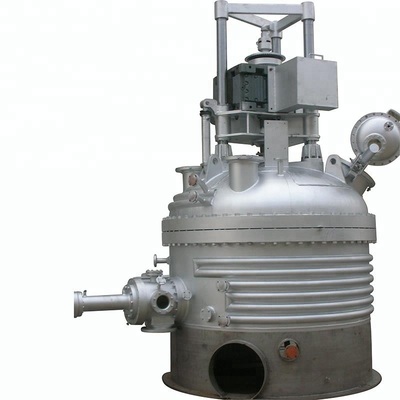

Large Image : 380V 460V CE ISO9001 Certified Agitated Nutsche Filter Dryer for Chemical Applications

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Juneng
Model Number:	GXG

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

380V 460V CE ISO9001 Certified Agitated Nutsche Filter Dryer for Chemical Applications

Description

Material:	Carbon Steel, Stainless Steel 304/316, Hastelloy	Voltage:	380V, 460V
Filtration Area:	0.28-8 M2	Shell Diameter:	600-3200 Mm
Work Pressure:	-0.1~0.3 Mpa	Nominal Volume:	0.2-14.5 M3
Filter Cake Height:	150-500 Mm	Function:	Filtering, Washing, Drying
Stirring System:	Stepless Speed Regulating	Discharge Valve:	Automatic Discharge
Filter Material:	Horizontal Placing	Sealing Structure:	Unique, Easy To Change
Anticorrosion System:	Special Material	Process Working:	Stirring, Mixing, Beating, Reacting, Washing
Control:	Full Automatic
Highlight:	380V Agitated Nutsche Filter Dryer , 460V Nutsche Filter Dryer , CE ISO9001 Certified ANFD Dryer

Agitated Nutsche Filtration Filter Filtering Drying Machine

Full Enclosed Agitated Reacting Nutsche Filtering, Washing, Drying (Three in One) Machine

The GXG series multi-function filtering, washing, and drying machine is an advanced solid-liquid separation equipment that combines filtration, washing, drying, reaction, and automatic residue discharge in one system.

Applications

This industrial filtration system is widely used in fine chemical processing, petroleum refining, food production, printing, pharmaceutical manufacturing (including Glyphosate and Penicillin production), and other industries requiring efficient solid-liquid separation.

Key Advantages

Fully enclosed filtration system prevents leakage and eliminates environmental contamination
Performs solid-liquid separation under both pressure and vacuum conditions with uniform filter cake distribution
Stepless speed regulating stirring system maximizes cake space for thorough cleaning and reduced drying time
Automatic discharge valve reduces labor intensity and improves operational efficiency
Ideal for materials with high solid content, enabling separate recovery of liquid and solid phases
Horizontal filter material placement ensures complete one-time filtration with no residue
Special corrosion-resistant materials accommodate various chemical media
Multi-functional operation including stirring, mixing, beating, reacting, and washing with full automation control

Technical Specifications

Model	Filtration Area (m²)	Shell Diameter (mm)	Work Pressure (MPa)	Nominal Volume (m³)	Filter Cake Height (mm)
GXG-600	0.28	600	-0.1~0.3	0.2	150
GXG-800	0.5	800	-0.1~0.3	0.5	180
GXG-1200	1.1	1200	-0.1~0.3	1.3	250
GXG-1600	2.0	1600	-0.1~0.3	2.8	350
GXG-2000	3.1	2000	-0.1~0.3	4.8	400
GXG-2400	4.5	2400	-0.1~0.3	6.5	450
GXG-2600	5.3	2600	-0.1~0.3	8.7	450
GXG-2800	6.0	2800	-0.1~0.3	12	450
GXG-3000	7	3000	-0.1~0.3	13	500
GXG-3200	8	3200	-0.1~0.3	14.5	500
