|Other Name:||Peeler Centrifuge Machine||Color:||As Request|
|Operation:||Both Automatic And Manual Available||Separating Factor（Frmax）:||1000|
|Volume Of Drum:||372 L||Diameter Of Drum:||1250 Mm|
Automatic Discharge Peeler Centrifuge Machine,
Continuous Feed Peeler Centrifuge Machine,
Peeler Centrifuge 1250 mm

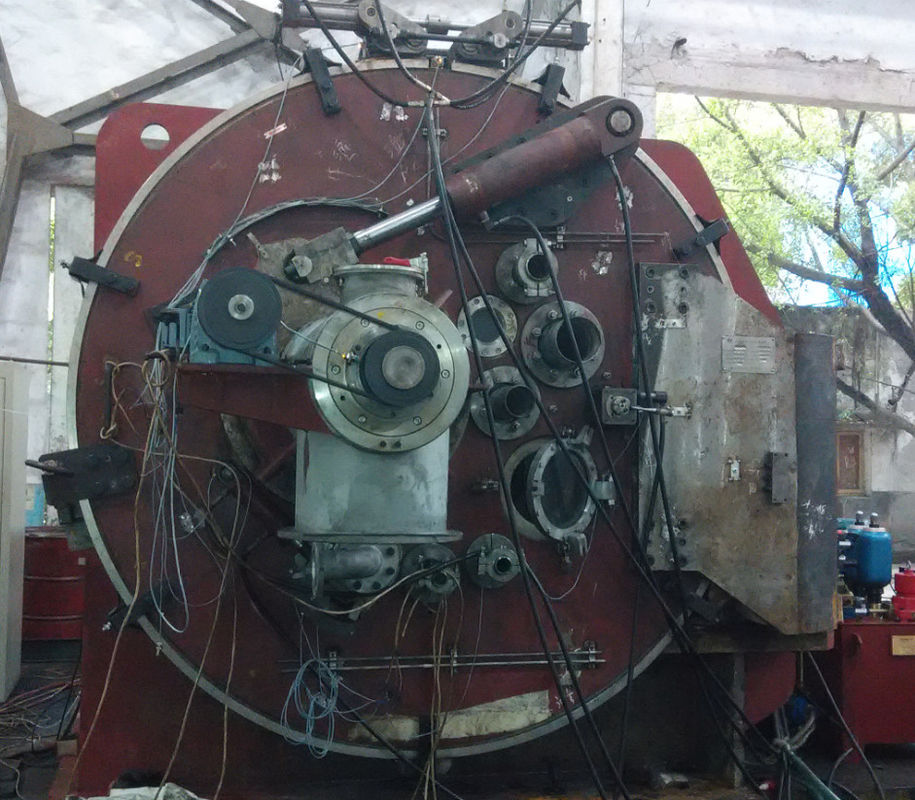

Continuous Feed And Automatic Discharge Peeler Centrifuge Machine
GK1250-NB Peeler Centrifuge is a automatic batch operation machine which is horizontal type and has wide scraper for discharging. Users can do cyclic operation on this machine automatically or by manual, each cycle is including feeding, separating, material washing, discharging and screen washing. Each process is done under full speed.
This machine adopts an electric hydraulic joint control system, with independent electrical control system and hydraulic system. During automatic operation, the operating time of each process of the machine is controlled by the electrical control system and can be adjusted within a certain time range.
Due to the high separation factor of the machine, the separation effect is good, and it can also effectively wash the solid phase. The solid phase humidity obtained through separation is low. Under the conditions of reasonable selection and use of filter media, the machine has high production capacity. However, due to the high-speed scraper discharge, it has a certain degree of fragmentation of solid particles.
Working principle of GKH
The horizontal siphon scraper centrifuge not only has the driving force of a regular scraper to unload the centrifuge, but also has a siphon suction force similar to a vacuum tube. When the centrifuge is empty, the conversion pipe injects waves into the siphon chamber, and the liquid passes through the siphon chamber
The through-hole of the drum is pressed outward into the gap between the drum, while expelling the air from the siphon and forming a wave body on the filtering medium to evenly distribute the feed. Then start feeding and rotate the siphon to a certain position. After a certain period of time, rotate it to the required lower position. After feeding, turn the siphon to the lowest position
The maximum diameter position of the suction chamber). After the suspension enters the drum, solid particles are trapped on the filter cloth, while the wave body passes through the filter cloth and the inner drum of the filter, gathers in the gap between the inner and outer drums, enters the siphon chamber through the through-hole of the drum and suction chamber, and is then removed by the siphon pipe. After the deposited solid continues to dry, ZiI pushes the scraper to rotate and start scraping. After sliding out of the machine through the hopper, the discharge is completed and the screen is washed. The siphon scraper centrifuge not only flushes the filter cloth in the drum, but also adds flushing water to the cutting and suction chamber through the flushing pipe. Control the upward and downward rotation of the siphon pipe, so that the liquid flows from the inner drum to the pulsating backwash filter screen. The flushing time and frequency can be determined based on the material characteristics. After the screen cleaning is completed, it automatically enters the next cycle of work.
General requirements for the application range of horizontal scraper discharge centrifuges: separation of solid-liquid two-phase systems with particle size ranging from 10 to 500um, solid phase concentration ranging from 20 to 80% (weight concentration), and liquid phase viscosity less than 10-2Pa. s. In addition, it can also meet the requirements of washing the solid phase. This machine is now widely used in industries such as chemical, light industry, food, pharmaceutical, etc. The separated materials include ammonium sulfate, sodium sulfate, sodium chloride, boric acid, starch, pesticides, synthetic resins, potassium chloride, light sodium carbonate, polyvinyl alcohol, polyoxymethylene, polyethylene, sodium sulfate, caustic soda, salt, fertilizer, aluminum sail, synthetic rubber, and so on.
|VC natrium||Calcium phosphate|
|Diameter of drum||mm||1250|
|Length of drum||mm||630|
|Volume of drum||L||372|
|Limit quantity of slurry||kg||455|
|Speed of drum||r/min||1200|
|Oil working pressure of scraper system||MPa||2-2.5|
Oil pump motor
|Main body of centrifuge(except motor)||kg||6760|
1 . Technicians are available for overseas service.
2 . 12 months guarantee period from machine arriving date.
3 . The operator could get trained by our experienced technician.
4 . We always keep certain inventory level of spare parts, which means the replacement can be sent to you timely
